GIGABYTE B760 DS3H DDR4
LE 7,500.00
Skip to product information
GIGABYTE B760 DS3H DDR4
LE 7,500.00
Return within 14 days provided the item is in its original condition
GIGABYTE B760 DS3H DDR4

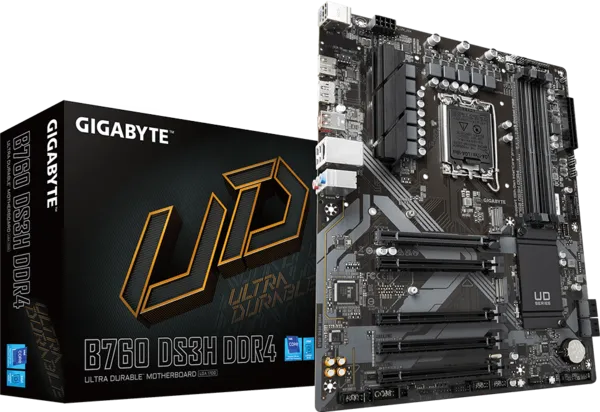

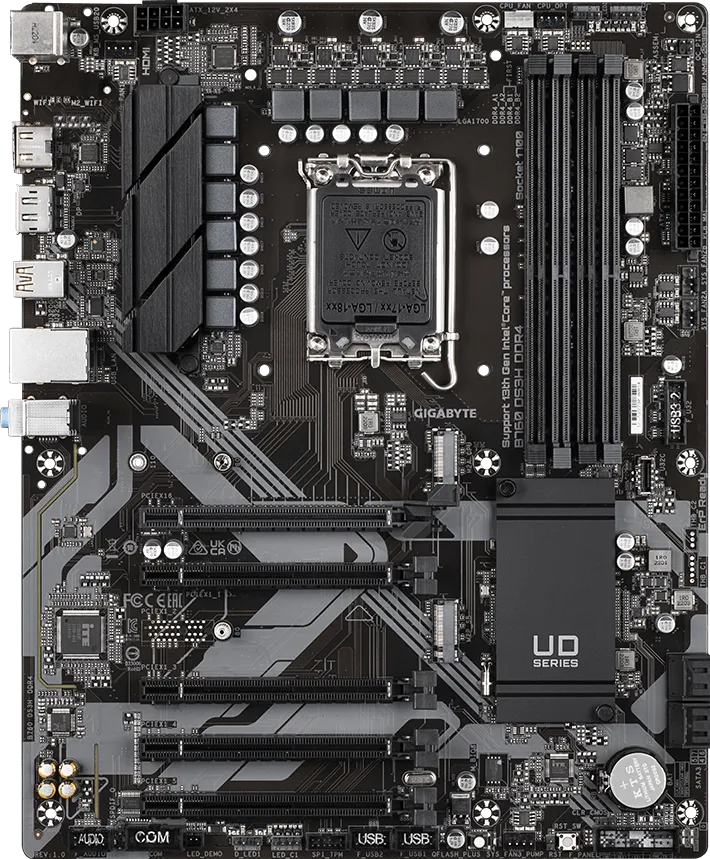

The GIGABYTE B760 DS3H DDR4 is a full ATX B760 board on the DDR4 platform. It offers two PCIe 4.0 M.2 slots, four SATA ports and 2.5 Gbps LAN — a capable mainstream build with room for future expansion.
Specifications
- Socket: LGA 1700
- Chipset: Intel B760
- Form Factor: ATX
- CPU Support: Intel Core 12th, 13th and 14th Gen
- Memory: 4x DDR4 DIMM, up to 128GB, DDR4-5333 (OC)
- PCIe Slots: 1x PCIe 4.0 x16, 2x PCIe 3.0 x1
- M.2: 2x M.2 (both PCIe 4.0 x4, type 2280)
- SATA: 4x SATA 6Gb/s
- Rear USB: 1x USB-C 3.2 Gen 2, 3x USB 3.2 Gen 1, 2x USB 2.0
- Display Outputs: 1x HDMI 2.1, 2x DisplayPort 1.2
- LAN: 2.5 Gbps
- Audio: Realtek HD, 7.1-channel
- Warranty: 3 Years
Specifications
| Brand | GIGABYTE |
| Model | B760 DS3H DDR4 |
| Socket | LGA 1700 |
| Chipset | Intel B760 |
| Form Factor | ATX |
| CPU Support | Intel Core 12th, 13th and 14th Gen |
| Memory | 4x DDR4 DIMM, up to 128GB, DDR4-5333 (OC) |
| PCIe Slots | 1x PCIe 4.0 x16, 2x PCIe 3.0 x1 |
| M.2 | 2x M.2 (both PCIe 4.0 x4, type 2280) |
| SATA | 4x SATA 6Gb/s |
| Rear USB | 1x USB-C 3.2 Gen 2, 3x USB 3.2 Gen 1, 2x USB 2.0 |
| Display Outputs | 1x HDMI 2.1, 2x DisplayPort 1.2 |
| LAN | 2.5 Gbps |
| Audio | Realtek HD, 7.1-channel |
| Warranty | 3 Years |
