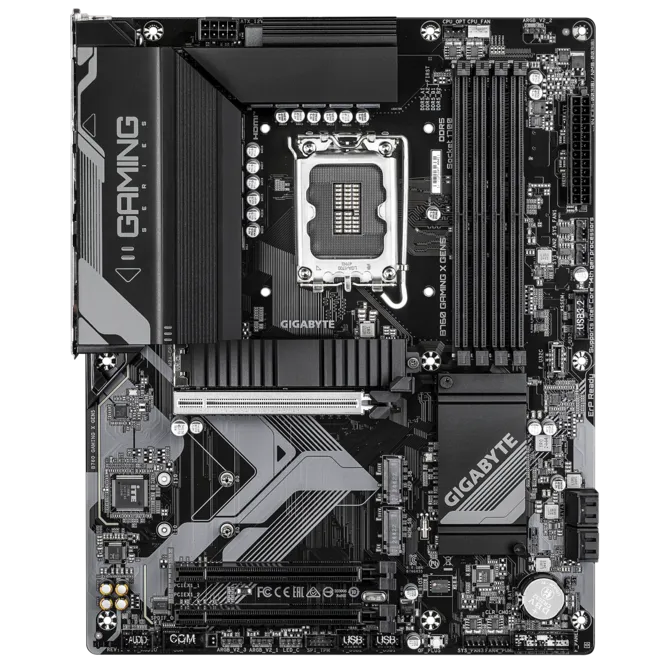

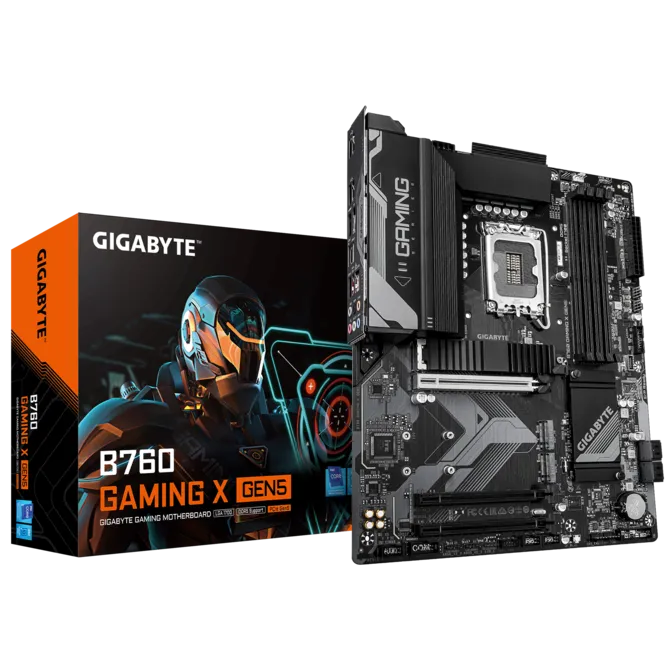

GIGABYTE B760 GAMING X GEN5

Intel LGA1700 ATX Motherboard

🔑 Key Highlights

• Intel LGA1700 Socket: Supports Intel Core 14th, 13th, and 12th Generation Processors, plus Pentium Gold and Celeron Processors.
• Intel B760 Chipset: Gaming-focused mid-range platform with PCIe 5.0 x16 GPU slot on a PCIe 5.0 Ready 6-Layer PCB.
• DDR5 Memory up to 7600MHz (OC): 4x DIMM slots supporting up to 256GB DDR5, with XMP memory module support.
• PCIe 5.0 x16 Slot: CPU-direct PCIe 5.0 x16 slot for next-generation GPU support.
• 3x M.2 PCIe 4.0 x4 Slots: M2A_CPU (type 22110/2280) + M2P_SB + M2M_SB (both type 22110/2280) for triple NVMe storage.
• 2.5GbE LAN: Realtek 2.5 Gigabit wired networking for ultra-low latency gaming and streaming.
• USB-C 10Gb/s (Front Header): USB 3.2 Gen 2 Type-C internal header for modern case connectivity.
• Dual Display Output: 1x HDMI 2.1 (4K@60Hz) + 1x DisplayPort 1.2 (4K@60Hz) via Intel HD Graphics iGPU.
• 3x ARGB Gen2 + 1x RGB Headers: Full lighting customization for gaming builds.
• Q-Flash Plus: Update BIOS without installing CPU, memory, or graphics card for hassle-free setup.
• 8+1+1 Hybrid Digital VRM Design: 60A DrMOS power stages for efficient and stable CPU power delivery.

📋 Specifications

• CPU Socket: Intel LGA1700
• Supported CPUs: Intel Core 14th / 13th / 12th Gen + Pentium Gold + Celeron Processors
• Chipset: Intel B760 Express
• Memory: 4x DDR5 DIMM, Dual Channel, up to 256GB (64GB per DIMM)
• Memory Speed: DDR5 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 4800 / 4000 MT/s
• Memory Type: Non-ECC Unbuffered DIMM 1Rx8 / 2Rx8 / 1Rx16; ECC Unbuffered DIMM 1Rx8 / 2Rx8 (non-ECC mode); XMP support
• Onboard Graphics: Intel HD Graphics (via CPU iGPU)
• Display Outputs: 1x HDMI 2.1 (4096x2160@60Hz, HDCP 2.3) + 1x DisplayPort 1.2 (4096x2304@60Hz, HDCP 2.3)
• Audio: Realtek Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out, 6x audio jacks
• LAN: Realtek 2.5GbE LAN (2.5 Gbps / 1 Gbps / 100 Mbps)
• Expansion Slots: 1x PCIe 5.0 x16 (CPU) + 2x PCIe 3.0 x1 (Chipset)
• Storage: 3x M.2 (M2A_CPU: PCIe 4.0 x4, type 22110/2280; M2P_SB & M2M_SB: PCIe 4.0 x4, type 22110/2280) + 4x SATA 6Gb/s
• RAID: RAID 0/1/5/10 for SATA storage devices
• USB (Back Panel): 1x USB Type-C (USB 3.2 Gen 1) + 1x USB 3.2 Gen 2 Type-A (red) + 1x USB 3.2 Gen 1 + 5x USB 2.0/1.1
• USB (Internal): 1x USB Type-C header (USB 3.2 Gen 2, 10Gb/s) + 1x USB 3.2 Gen 1 header + 2x USB 2.0/1.1 headers
• Internal Connectors: 1x 24-pin ATX power, 1x 8-pin ATX 12V, 1x CPU fan, 1x CPU fan/pump, 3x system fan headers, 1x system fan/pump, 3x ARGB Gen2 headers, 1x RGB header, 3x M.2 connectors, 4x SATA 6Gb/s, 1x front panel, 1x front panel audio, 1x S/PDIF Out header, 1x TPM header, 1x serial port header, 1x Q-Flash Plus button, 1x reset jumper, 1x Clear CMOS jumper

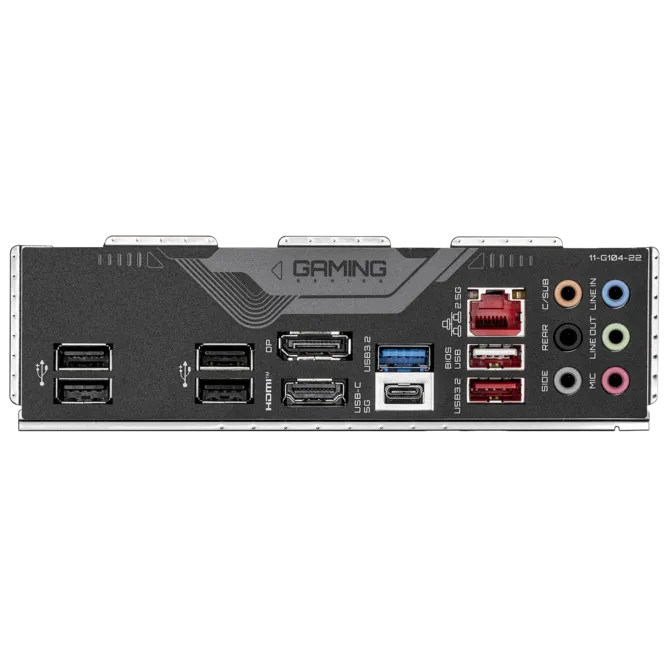

• Back Panel: 1x USB Type-C (USB 3.2 Gen 1), 1x USB 3.2 Gen 2 Type-A (red), 1x USB 3.2 Gen 1, 5x USB 2.0/1.1, 1x HDMI 2.1, 1x DisplayPort 1.2, 1x RJ-45, 6x audio jacks
• I/O Controller: iTE I/O Controller Chip
• Hardware Monitoring: Voltage, Temperature, Fan Speed, Water Cooling Flow Rate, Fan Fail Warning, Fan Speed Control
• BIOS: 256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• VRM / Power Phases: 8+1+1 Hybrid Digital VRM Design, 60A DrMOS
• PCB: PCIe 5.0 Ready, 6-Layer PCB
• Software: GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup
• OS Support: Windows 11 64-bit / Windows 10 64-bit
• Form Factor: ATX (30.5cm x 24.4cm)
