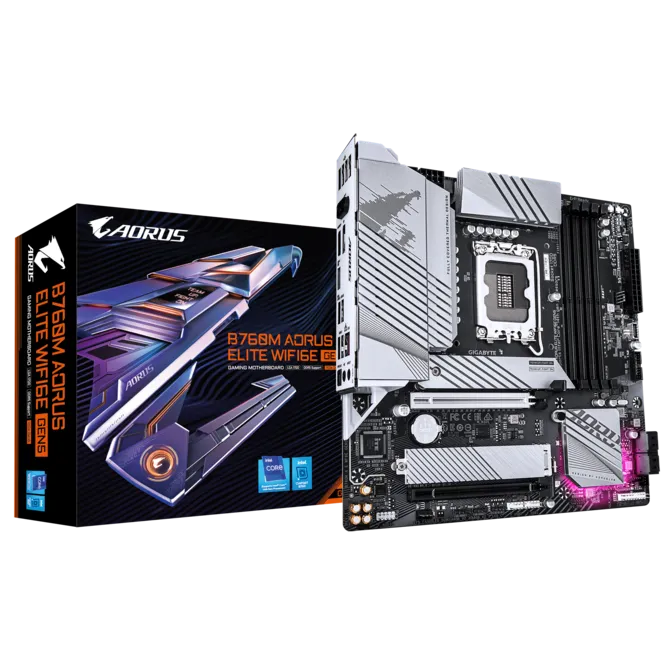

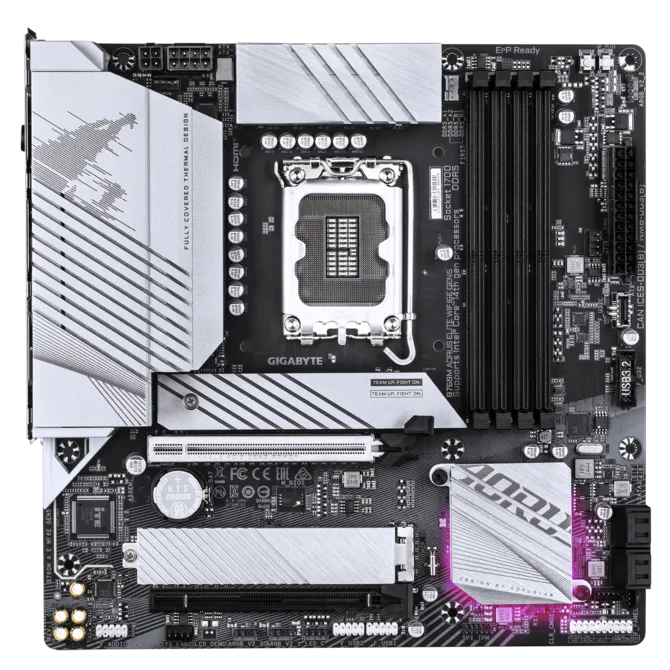

GIGABYTE B760M AORUS ELITE WIFI6E GEN5

Intel LGA1700 Micro-ATX Motherboard

🔑 Key Highlights

• Intel LGA1700 Socket: Supports Intel Core 14th, 13th, and 12th Generation Processors, plus Pentium Gold and Celeron Processors.
• Intel B760 Chipset: Reliable mid-range platform with PCIe 5.0 x16 GPU slot and modern connectivity features.
• DDR5 Memory up to 7800MHz (OC): 4x DIMM slots supporting up to 256GB DDR5, with XMP memory module support.
• PCIe 5.0 x16 Slot (PCIe 5.0 Ready PCB): CPU-direct PCIe 5.0 x16 slot on a 6-layer 2X Copper PCB for next-generation GPU support.
• 2x M.2 PCIe 4.0 x4 Slots: M2A_CPU (type 2280) + M2P_SB (type 22110/2280) for fast NVMe storage.
• Wi-Fi 6E + Bluetooth 5.3: Intel AX210 supporting 2.4/5/6 GHz bands and 160MHz channels for ultra-fast wireless connectivity.
• USB-C 20Gb/s (Rear) + USB-C 10Gb/s (Front Header): High-speed Type-C connectivity on both back panel and front panel header.
• 2.5GbE LAN: Realtek 2.5 Gigabit wired networking for ultra-low latency gaming and streaming.
• Realtek ALC1220 HD Audio: Audiophile-grade codec with DSD audio support and S/PDIF Out.
• Q-Flash Plus: Update BIOS without installing CPU, memory, or graphics card for hassle-free setup.
• 12+1+1 Twin Hybrid Digital VRM Design: 60A DrMOS power stages for robust and stable CPU power delivery.

📋 Specifications

• CPU Socket: Intel LGA1700
• Supported CPUs: Intel Core 14th / 13th / 12th Gen + Pentium Gold + Celeron Processors
• Chipset: Intel B760 Express
• Memory: 4x DDR5 DIMM, Dual Channel, up to 256GB (64GB per DIMM)
• Memory Speed: DDR5 7800(OC) / 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 4800 / 4000 MT/s
• Memory Type: Non-ECC Unbuffered DIMM 1Rx8 / 2Rx8 / 1Rx16; ECC Unbuffered DIMM 1Rx8 / 2Rx8 (non-ECC mode); XMP support
• Onboard Graphics: Intel HD Graphics (via CPU iGPU)
• Display Outputs: 1x HDMI 2.1 (4096x2160@60Hz, HDCP 2.3) + 1x DisplayPort 1.2 (4096x2304@60Hz, HDCP 2.3)
• Audio: Realtek ALC1220 CODEC, High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out, DSD audio support
• LAN: Realtek 2.5GbE LAN (2.5 Gbps / 1 Gbps / 100 Mbps)
• Wireless: Intel Wi-Fi 6E AX210 (802.11a/b/g/n/ac/ax), 2.4/5/6 GHz, 160MHz; Bluetooth 5.3
• Expansion Slots: 1x PCIe 5.0 x16 (CPU) + 1x PCIe 4.0 x4 (Chipset)
• Storage: 2x M.2 (M2A_CPU: PCIe 4.0 x4, type 2280; M2P_SB: PCIe 4.0 x4, type 22110/2280) + 4x SATA 6Gb/s
• RAID: RAID 0/1/5/10 for SATA storage devices
• USB (Back Panel): 1x USB Type-C (USB 3.2 Gen 2x2, 20Gb/s) + 1x USB 3.2 Gen 2 Type-A (red) + 3x USB 3.2 Gen 1 + 4x USB 2.0/1.1 + 1x optical S/PDIF Out
• USB (Internal): 1x USB Type-C header (USB 3.2 Gen 2, 10Gb/s) + 1x USB 3.2 Gen 1 header + 2x USB 2.0/1.1 headers
• Internal Connectors: 1x 24-pin ATX power, 1x 8-pin ATX 12V, 1x 4-pin ATX 12V, 1x CPU fan, 3x system fan headers, 3x ARGB Gen2 headers, 1x RGB header, 2x M.2 connectors, 4x SATA 6Gb/s, 1x front panel, 1x front panel audio, 2x Thunderbolt add-in card connectors, 1x TPM header, 1x Q-Flash Plus button, 1x reset button, 1x reset jumper, 1x Clear CMOS jumper

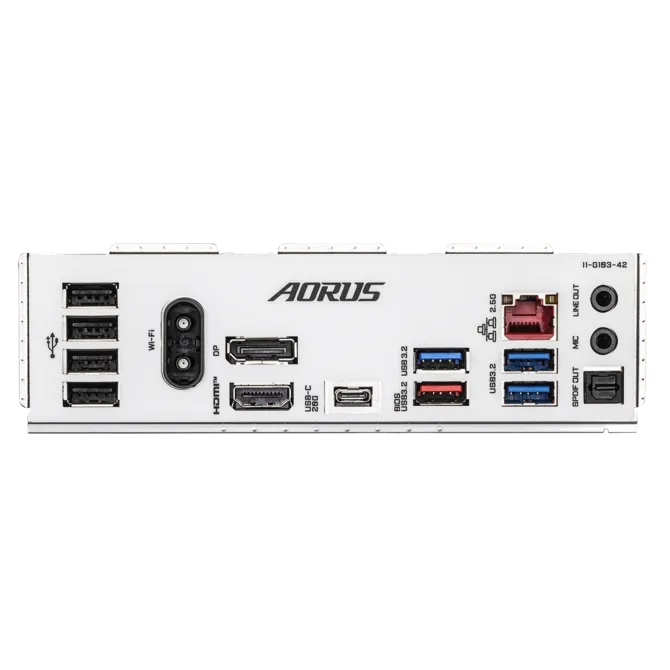

• Back Panel: 2x antenna connectors (2T2R), 1x USB Type-C (USB 3.2 Gen 2x2), 1x USB 3.2 Gen 2 Type-A (red), 3x USB 3.2 Gen 1, 4x USB 2.0/1.1, 1x HDMI 2.1, 1x DisplayPort 1.2, 1x RJ-45, 2x audio jacks, 1x optical S/PDIF Out
• I/O Controller: iTE I/O Controller Chip
• Hardware Monitoring: Voltage, Temperature, Fan Speed, Water Cooling Flow Rate, Fan Fail Warning, Fan Speed Control
• BIOS: 256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• VRM / Power Phases: 12+1+1 Twin Hybrid Digital VRM Design, 60A DrMOS
• PCB: PCIe 5.0 Ready, 6-Layer, 2X Copper PCB
• Software: GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus
• OS Support: Windows 11 64-bit / Windows 10 64-bit
• Form Factor: Micro-ATX (24.4cm x 24.4cm)
