GIGABYTE B760M DS3H DDR4

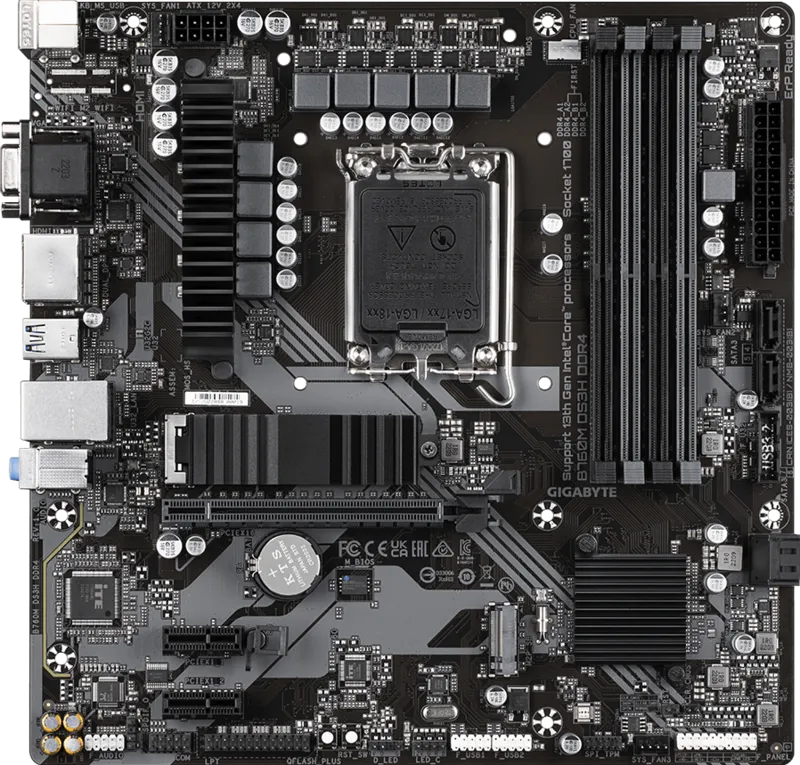

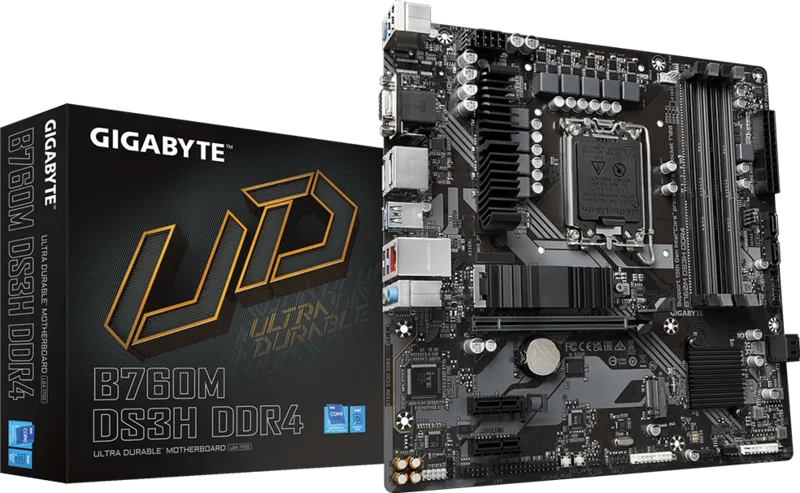

The GIGABYTE B760M DS3H DDR4 is a solid Micro-ATX B760 board offering a step up from H610 with two PCIe 4.0 M.2 slots, four SATA ports, 2.5 Gbps LAN and a rear USB-C port — all on a DDR4 platform.
Specifications
- Socket: LGA 1700
- Chipset: Intel B760
- Form Factor: Micro-ATX (24.4 x 24.4 cm)
- CPU Support: Intel Core 12th, 13th and 14th Gen
- Memory: 4x DDR4 DIMM, up to 128GB, DDR4-5333 (OC)
- PCIe Slots: 1x PCIe 4.0 x16, 2x PCIe 3.0 x1
- M.2: 2x M.2 (both PCIe 4.0 x4, type 2280)
- SATA: 4x SATA 6Gb/s

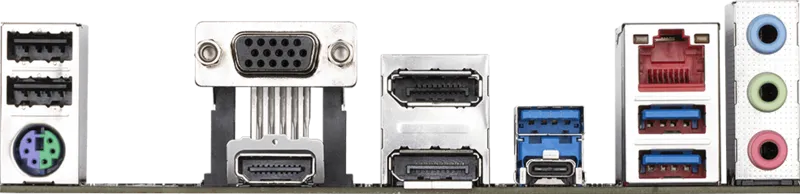

- Rear USB: 1x USB-C 3.2 Gen 2, 3x USB 3.2 Gen 1, 2x USB 2.0
- Display Outputs: 1x D-Sub, 1x HDMI 2.1, 2x DisplayPort 1.2
- LAN: 2.5 Gbps
- Audio: Realtek HD, 7.1-channel
- Features: Q-Flash Plus, EZ-Latch PCIe release
- Warranty: 3 Years
Specifications
| Brand | GIGABYTE |
| Model | B760M DS3H DDR4 |
| Socket | LGA 1700 |
| Chipset | Intel B760 |
| Form Factor | Micro-ATX (24.4 x 24.4 cm) |
| CPU Support | Intel Core 12th, 13th and 14th Gen |
| Memory | 4x DDR4 DIMM, up to 128GB, DDR4-5333 (OC) |
| PCIe Slots | 1x PCIe 4.0 x16, 2x PCIe 3.0 x1 |
| M.2 | 2x M.2 (both PCIe 4.0 x4, type 2280) |
| SATA | 4x SATA 6Gb/s |
| Rear USB | 1x USB-C 3.2 Gen 2, 3x USB 3.2 Gen 1, 2x USB 2.0 |
| Display Outputs | 1x D-Sub, 1x HDMI 2.1, 2x DisplayPort 1.2 |
| LAN | 2.5 Gbps |
| Audio | Realtek HD, 7.1-channel |
| Features | Q-Flash Plus, EZ-Latch PCIe release |
| Warranty | 3 Years |
