GIGABYTE B760M GAMING AC DDR4 GEN5
LE 6,750.00
Skip to product information
GIGABYTE B760M GAMING AC DDR4 GEN5
LE 6,750.00
Return within 14 days provided the item is in its original condition
GIGABYTE B760M GAMING AC DDR4 GEN5

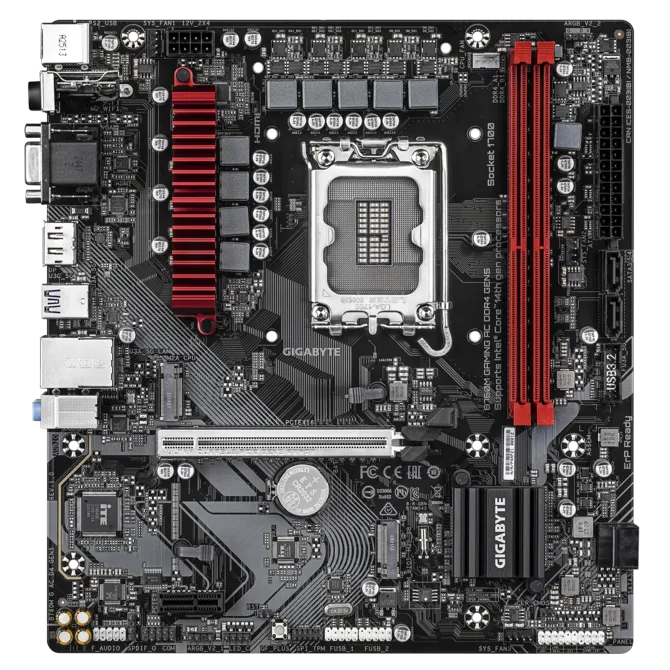

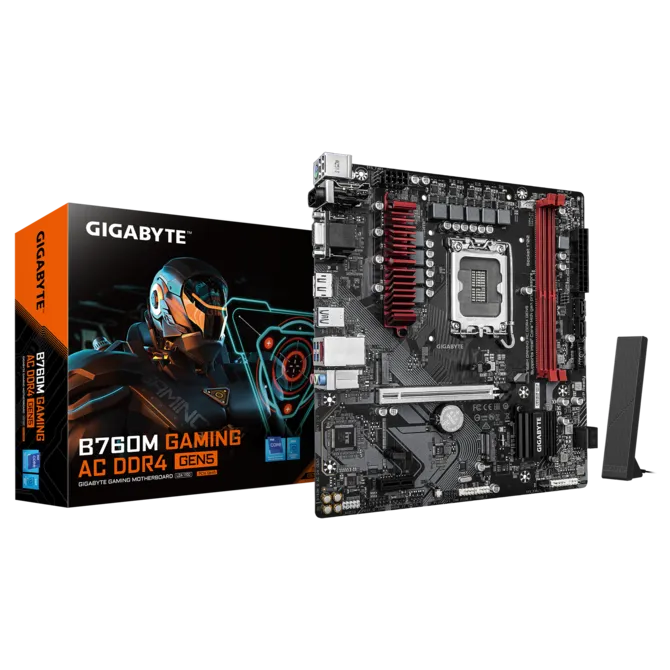

The GIGABYTE B760M GAMING AC DDR4 GEN5 is a Micro-ATX B760 board with DDR4, PCIe 5.0 M.2 support, built-in Wi-Fi and RGB lighting. It is a good all-in-one option for 12th to 14th Gen Intel gaming builds that don't need a full ATX board.
Specifications
- Socket: LGA 1700
- Chipset: Intel B760
- Form Factor: Micro-ATX
- CPU Support: Intel Core 12th, 13th and 14th Gen
- Memory: 4x DDR4 DIMM, up to 128GB, DDR4-5333 (OC)
- PCIe Slots: 1x PCIe 4.0 x16, 2x PCIe 3.0 x1
- M.2: 2x M.2 (1x PCIe 5.0 x4, 1x PCIe 4.0 x4, type 2280)
- SATA: 4x SATA 6Gb/s
- Rear USB: 1x USB-C 3.2 Gen 2, 3x USB 3.2 Gen 1, 2x USB 2.0
- Display Outputs: 1x HDMI 2.1, 1x DisplayPort
- LAN: 2.5 Gbps
- Wireless: Wi-Fi 5 (802.11ac), Bluetooth 5.2
- Audio: Realtek HD, 7.1-channel
- Features: RGB lighting, Q-Flash Plus
- Warranty: 3 Years
Specifications
| Brand | GIGABYTE |
| Model | B760M GAMING AC DDR4 GEN5 |
| Socket | LGA 1700 |
| Chipset | Intel B760 |
| Form Factor | Micro-ATX |
| CPU Support | Intel Core 12th, 13th and 14th Gen |
| Memory | 4x DDR4 DIMM, up to 128GB, DDR4-5333 (OC) |
| PCIe Slots | 1x PCIe 4.0 x16, 2x PCIe 3.0 x1 |
| M.2 | 2x M.2 (1x PCIe 5.0 x4, 1x PCIe 4.0 x4, type 2280) |
| SATA | 4x SATA 6Gb/s |
| Rear USB | 1x USB-C 3.2 Gen 2, 3x USB 3.2 Gen 1, 2x USB 2.0 |
| Display Outputs | 1x HDMI 2.1, 1x DisplayPort |
| LAN | 2.5 Gbps |
| Wireless | Wi-Fi 5 (802.11ac), Bluetooth 5.2 |
| Audio | Realtek HD, 7.1-channel |
| Features | RGB lighting, Q-Flash Plus |
| Warranty | 3 Years |
Why Choose it?
