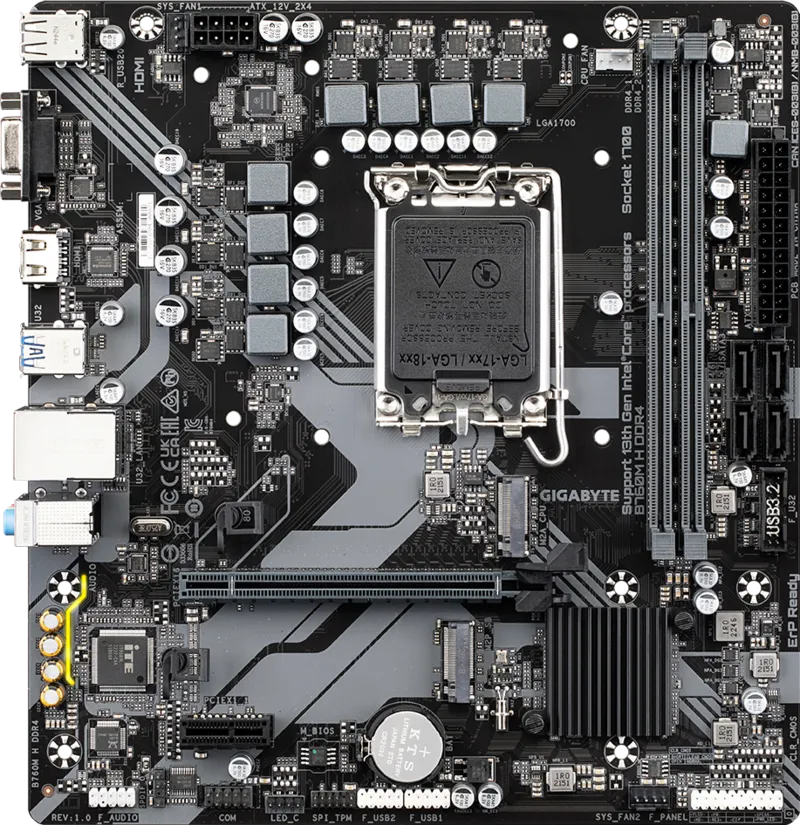

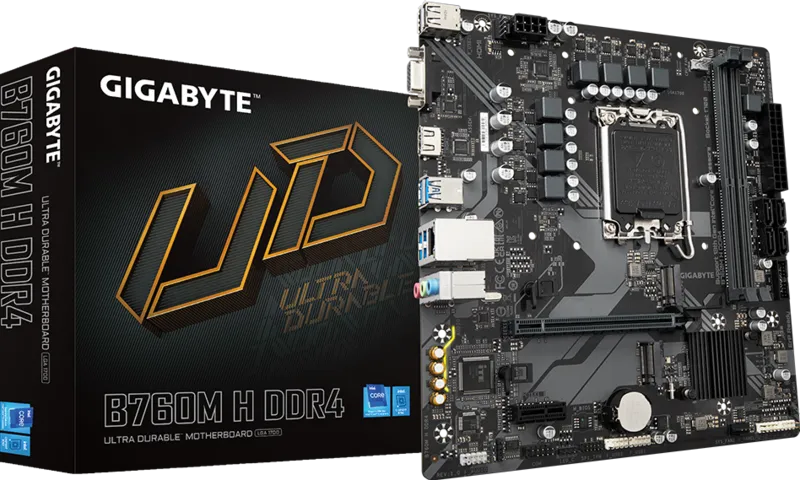

GIGABYTE B760M H DDR4
The GIGABYTE B760M H DDR4 is a compact Micro-ATX B760 board on the DDR4 platform. It provides two M.2 slots, four SATA ports and 2.5 Gbps LAN at a practical price for 12th to 14th Gen Intel builds.
Specifications
- Socket: LGA 1700
- Chipset: Intel B760
- Form Factor: Micro-ATX
- CPU Support: Intel Core 12th, 13th and 14th Gen
- Memory: 2x DDR4 DIMM, up to 64GB, DDR4-5333 (OC)
- PCIe Slots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x1
- M.2: 2x M.2 (PCIe 4.0 x4, type 2280)
- SATA: 4x SATA 6Gb/s
- Rear USB: 1x USB-C 3.2 Gen 2, 2x USB 3.2 Gen 1, 2x USB 2.0
- Display Outputs: 1x HDMI 2.1, 1x DisplayPort
- LAN: 2.5 Gbps
- Audio: Realtek HD, 7.1-channel
- Warranty: 3 Years
Specifications
| Brand | GIGABYTE |
| Model | B760M H DDR4 |
| Socket | LGA 1700 |
| Chipset | Intel B760 |
| Form Factor | Micro-ATX |
| CPU Support | Intel Core 12th, 13th and 14th Gen |
| Memory | 2x DDR4 DIMM, up to 64GB, DDR4-5333 (OC) |
| PCIe Slots | 1x PCIe 4.0 x16, 1x PCIe 3.0 x1 |
| M.2 | 2x M.2 (PCIe 4.0 x4, type 2280) |
| SATA | 4x SATA 6Gb/s |
| Rear USB | 1x USB-C 3.2 Gen 2, 2x USB 3.2 Gen 1, 2x USB 2.0 |
| Display Outputs | 1x HDMI 2.1, 1x DisplayPort |
| LAN | 2.5 Gbps |
| Audio | Realtek HD, 7.1-channel |
| Warranty | 3 Years |
