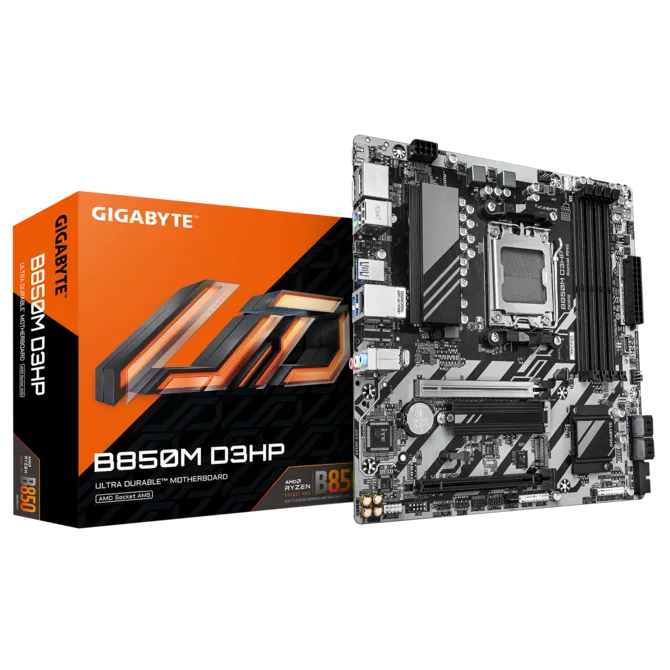

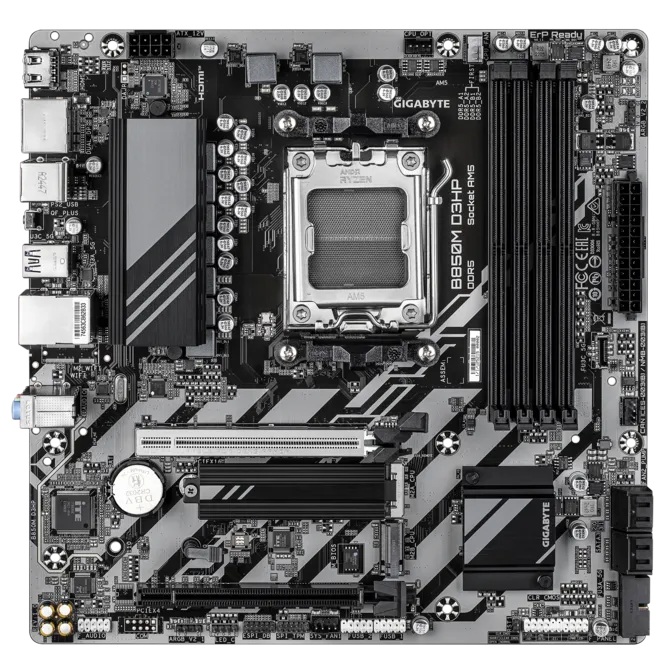

GIGABYTE B850M D3HP

AMD AM5 ATX Motherboard

🔑 Key Highlights

• Socket AM5 Compatibility: Supports AMD Ryzen 9000, 8000, and 7000 Series Processors for current and next-gen builds.
• AMD B850 Chipset: Reliable mid-range platform with strong connectivity and overclocking support.
• DDR5 Memory up to 8200MHz (OC): 4x DIMM slots supporting up to 256GB DDR5, with AMD EXPO and Intel XMP support.
• PCIe 5.0 x16 Slot: Full-bandwidth GPU support for Ryzen 9000/7000 Series (PCIe 4.0 x8/x4 for Ryzen 8000 Series).
• Dual M.2 NVMe Slots: M2A_CPU supports PCIe 5.0 x4 (Ryzen 9000/7000), M2B_CPU supports PCIe 4.0 x4 — blazing-fast storage options.
• Triple Display Output: 1x HDMI 2.1 (4K@60Hz) + 2x DisplayPort 1.4 (4K@144Hz) via integrated AMD Radeon Graphics.
• Realtek GbE LAN: Stable 1Gbps wired networking for gaming and productivity.
• USB 3.2 Gen 1 Type-C: On back panel and internal header for modern device connectivity.
• Addressable RGB Gen2 Headers: 2x ARGB Gen2 + 1x RGB header for full lighting customization.
• Q-Flash Plus: Update BIOS without CPU or RAM installed for hassle-free setup.
• 5+2+2 Digital VRM Design: Efficient and stable power delivery for sustained CPU performance.

📋 Specifications

• CPU Socket: AMD Socket AM5
• Supported CPUs: AMD Ryzen 9000 / 8000 / 7000 Series Processors
• Chipset: AMD B850
• Memory: 4x DDR5 DIMM, Dual Channel, up to 256GB (64GB per DIMM)
• Memory Speed: DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s
• Memory Type: Non-ECC Unbuffered DIMM 1Rx8 / 2Rx8 / 1Rx16; AMD EXPO & XMP support
• Onboard Graphics: AMD Radeon Graphics (via CPU iGPU)
• Display Outputs: 1x HDMI 2.1 (4096x2160@60Hz, HDCP 2.3, HDR) + 2x DisplayPort 1.4 (3840x2160@144Hz); Triple display support
• Audio: Realtek Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel
• LAN: Realtek GbE LAN (1 Gbps / 100 Mbps / 10 Mbps)
• Expansion Slots: 1x PCIe x16 (CPU, PCIe 5.0 x16 for Ryzen 9000/7000; PCIe 4.0 x8/x4 for Ryzen 8000) + 1x PCIe x16 slot running at x4 (Chipset, PCIe 3.0)
• Storage: 2x M.2 (M2A_CPU: PCIe 5.0 x4, type 2580/2280; M2B_CPU: PCIe 4.0 x4, type 22110/2280) + 4x SATA 6Gb/s
• RAID: RAID 0/1/5/10 for NVMe (RAID 5 on Ryzen 9000 only); RAID 0/1/10 for SATA
• USB (Back Panel): 1x USB Type-C (USB 3.2 Gen 1) + 3x USB 3.2 Gen 1 + 2x USB 2.0/1.1
• USB (Internal): 1x USB Type-C header (USB 3.2 Gen 1) + 1x USB 3.2 Gen 1 header + 2x USB 2.0/1.1 headers
• Internal Connectors: 1x 24-pin ATX power, 1x 8-pin ATX 12V, 1x CPU fan, 1x CPU fan/pump, 1x system fan, 1x system fan/pump, 2x ARGB Gen2 headers, 1x RGB header, 1x front panel, 1x front panel audio, 1x TPM header, 1x reset jumper, 1x Clear CMOS jumper

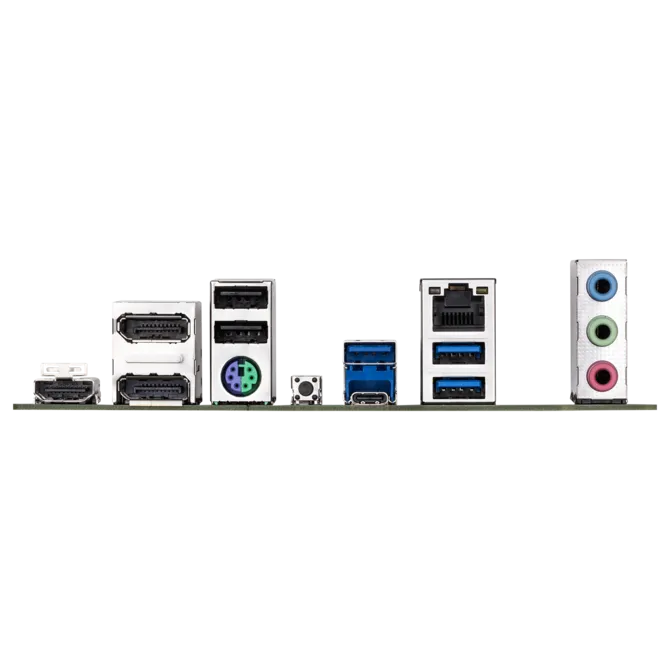

• Back Panel: 1x HDMI, 2x DisplayPort, 1x PS/2, 1x Q-Flash Plus, 1x USB Type-C (USB 3.2 Gen 1), 3x USB 3.2 Gen 1, 2x USB 2.0/1.1, 1x RJ-45, 3x audio jacks
• I/O Controller: iTE I/O Controller Chip
• Hardware Monitoring: Voltage, Temperature, Fan Speed, Water Cooling Flow Rate, Fan Fail Warning, Fan Speed Control
• BIOS: 256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• VRM / Power Phases: 5+2+2 Digital VRM Design
• Software: GIGABYTE Control Center (GCC)
• Form Factor: Micro-ATX
