GIGABYTE B850M DS3H
LE 8,000.00
Skip to product information
GIGABYTE B850M DS3H
LE 8,000.00
Return within 14 days provided the item is in its original condition
GIGABYTE B850M DS3H

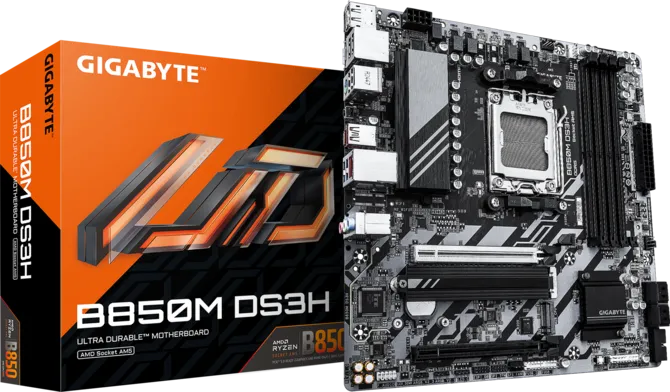

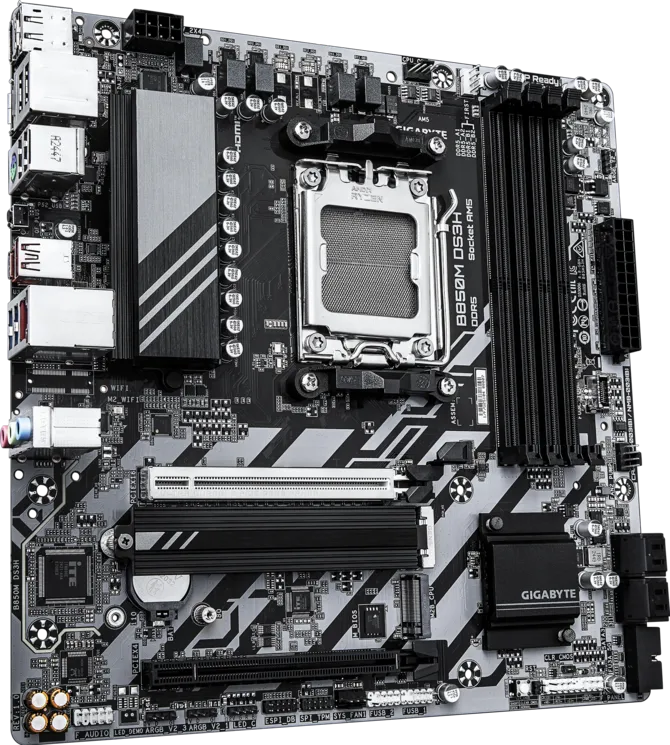

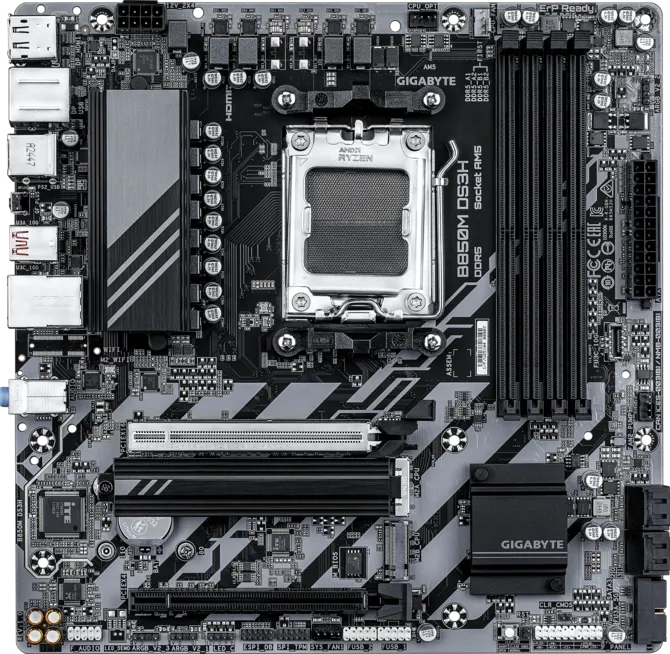

The GIGABYTE B850M DS3H is a compact Micro-ATX B850 board on DDR5 for AMD Ryzen 7000, 8000 and 9000 series on AM5. It covers the essentials with two M.2 slots, four SATA ports and 2.5 Gbps LAN at an accessible price.
Specifications
- Socket: AM5
- Chipset: AMD B850
- Form Factor: Micro-ATX
- CPU Support: AMD Ryzen 7000, 8000 and 9000 series
- Memory: 2x DDR5 DIMM, up to 96GB, DDR5-6400 (OC)
- PCIe Slots: 1x PCIe 5.0 x16, 1x PCIe 3.0 x1
- M.2: 2x M.2 (1x PCIe 4.0 x4 CPU, 1x PCIe 4.0 x4 chipset, type 2280)
- SATA: 4x SATA 6Gb/s

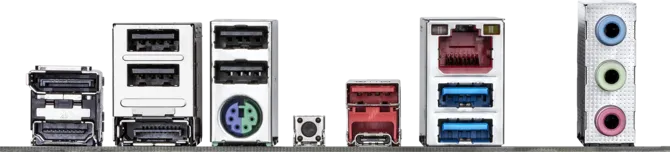

- Rear USB: 1x USB-C 3.2 Gen 2, 3x USB 3.2 Gen 1, 2x USB 2.0
- Display Outputs: 1x HDMI 2.1, 1x DisplayPort 1.4
- LAN: 2.5 Gbps
- Audio: Realtek ALC897, 7.1-channel
- Warranty: 3 Years
Specifications
| Brand | GIGABYTE |
| Model | B850M DS3H |
| Socket | AM5 |
| Chipset | AMD B850 |
| Form Factor | Micro-ATX |
| CPU Support | AMD Ryzen 7000, 8000 and 9000 series |
| Memory | 2x DDR5 DIMM, up to 96GB, DDR5-6400 (OC) |
| PCIe Slots | 1x PCIe 5.0 x16, 1x PCIe 3.0 x1 |
| M.2 | 2x M.2 (1x PCIe 4.0 x4 CPU, 1x PCIe 4.0 x4 chipset, type 2280) |
| SATA | 4x SATA 6Gb/s |
| Rear USB | 1x USB-C 3.2 Gen 2, 3x USB 3.2 Gen 1, 2x USB 2.0 |
| Display Outputs | 1x HDMI 2.1, 1x DisplayPort 1.4 |
| LAN | 2.5 Gbps |
| Audio | Realtek ALC897, 7.1-channel |
| Warranty | 3 Years |
