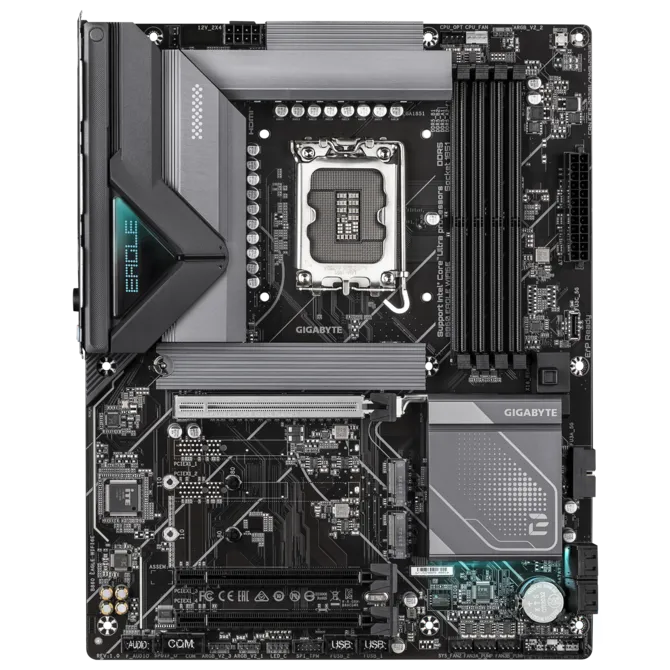

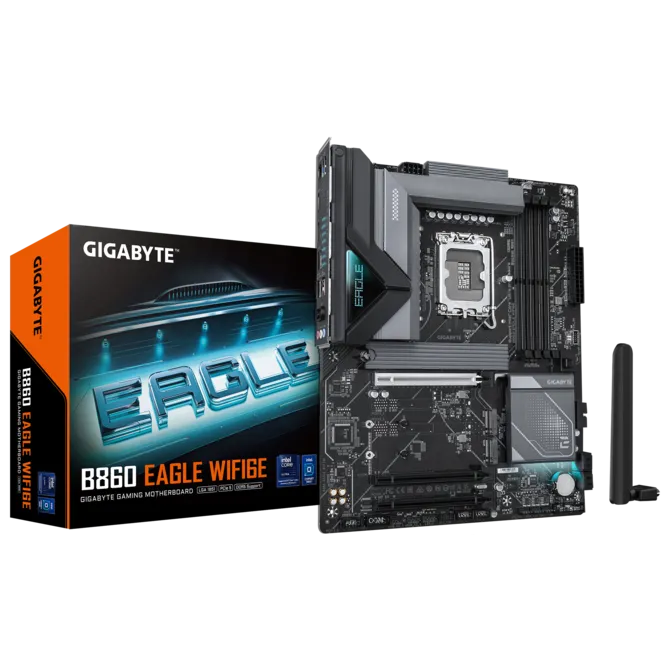

GIGABYTE B860 EAGLE WIFI6E

Intel LGA1851 ATX Motherboard

🔑 Key Highlights

• Processor Support: Supports Intel® Core™ Ultra processors (Series 2)
• Digital Twin VRM: 12+1+2 Phases Digital Twin VRM Solution
• Dual Channel DDR5: 4x DIMMs with XMP Memory Module Support
• D5 Bionic Corsa: Infinite Memory Performance with DDR5
• AI Perfdrive: Provides optimal and customized BIOS preset profile for users
• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click: M.2 heatsinks with screwless design
• Ultra-Fast Storage: 3x M.2 slots, including 1x PCIe 5.0 x4
• Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
• Fast Networking: Realtek® 2.5GbE LAN & Intel® Wi-Fi 6E AX211 (2.4/5/6 GHz) + Bluetooth 5.3
• Power Phases: 12+1+2 Digital Twin VRM Solution

📋 Specifications

• Socket: Intel LGA1851 — Support for Intel® Core™ Ultra Processors (Series 2)
• Chipset: Intel® B860 Express
• Form Factor: ATX (30.5cm x 24.4cm)
• Memory Slots: 4x DDR5 DIMM, Dual Channel, up to 256GB (64GB per DIMM)
• Memory Speed: DDR5 5600 / 6400 / 6600(O.C.) / 6800(O.C.) / 7000(O.C.) / 7200(O.C.) / 7400(O.C.) / 7600(O.C.) / 7800(O.C.) / 7900(O.C.) / 7950(O.C.) / 8000(O.C.) / 8200(O.C.) / 8266(O.C.) / 8400(O.C.) / 8600(O.C.) / 8800(O.C.) / 9066(O.C.) MT/s
• Memory Support: XMP, ECC Un-buffered 1Rx8/2Rx8 (non-ECC mode), Non-ECC Un-buffered 1Rx8/2Rx8/1Rx16
• Onboard Graphics: Intel® HD Graphics — 1x HDMI 2.1 (4096x2160@60Hz), 1x DisplayPort 2.1 (3840x2160@144Hz)
• Audio: Realtek® HD Audio CODEC, 2/4/5.1/7.1-ch, S/PDIF Out
• LAN: Realtek® 2.5GbE (2.5 Gbps / 1 Gbps / 100 Mbps)
• Wireless: Intel® Wi-Fi 6E AX211 / Realtek® RTL8852CE — 2.4/5/6 GHz, 802.11ax 160MHz, Bluetooth 5.3
• PCIe Slots: 1x PCIe 5.0 x16 (CPU), 2x PCIe 4.0 x1 (Chipset)
• Storage: 1x M.2 PCIe 5.0 x4 (M2A_CPU, type 25110/22110/2580/2280) + 1x M.2 PCIe 4.0 x4 (M2Q_SB, type 25110/22110/2580/2280) + 1x M.2 PCIe 4.0 x4 (M2P_SB, type 25110/22110/2580/2280) + 4x SATA 6Gb/s
• RAID: RAID 0/1/5/10 for SATA

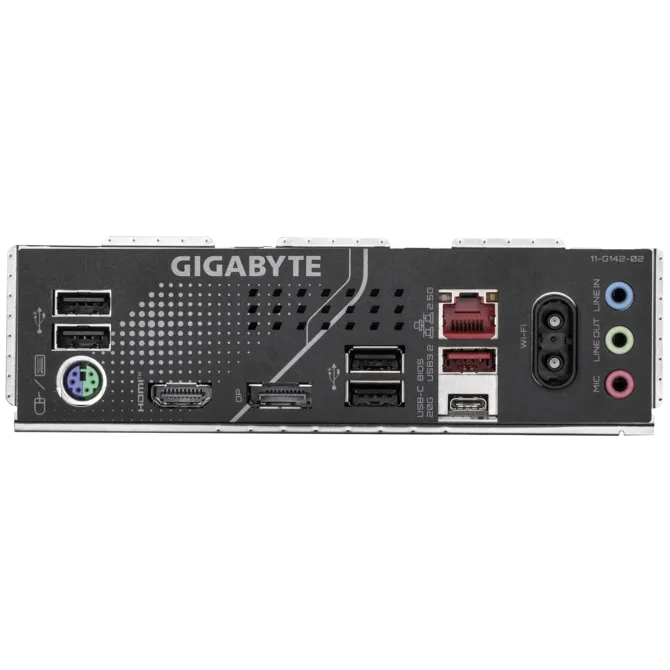

• USB Rear: 1x USB-C® 20Gb/s, 1x USB-A 10Gb/s (red), 4x USB 2.0
• USB Internal: 1x USB-C® Gen1 header, 1x USB 3.2 Gen1 header, 2x USB 2.0 headers
• Fan Headers: 1x CPU, 1x CPU/Pump, 2x System, 2x System/Pump
• LED Headers: 3x Addressable RGB Gen2, 1x RGB LED strip header
• Other Internal: 1x TPM header, Q-Flash Plus button, Serial port header
• BIOS: 256Mbit AMI UEFI, Q-Flash, Q-Flash Plus, Smart Backup, Multi-Theme, AIO Fan Control, Q-Flash Auto Scan
• OS Support: Windows 11 / Windows 10 (64-bit)
• VRM / Power Phases: Digital Twin 12+1+2 Phases VRM Solution
