GIGABYTE B860M DS3H WIFI6E
LE 8,500.00
Skip to product information
GIGABYTE B860M DS3H WIFI6E
LE 8,500.00
Return within 14 days provided the item is in its original condition
GIGABYTE B860M DS3H WIFI6E

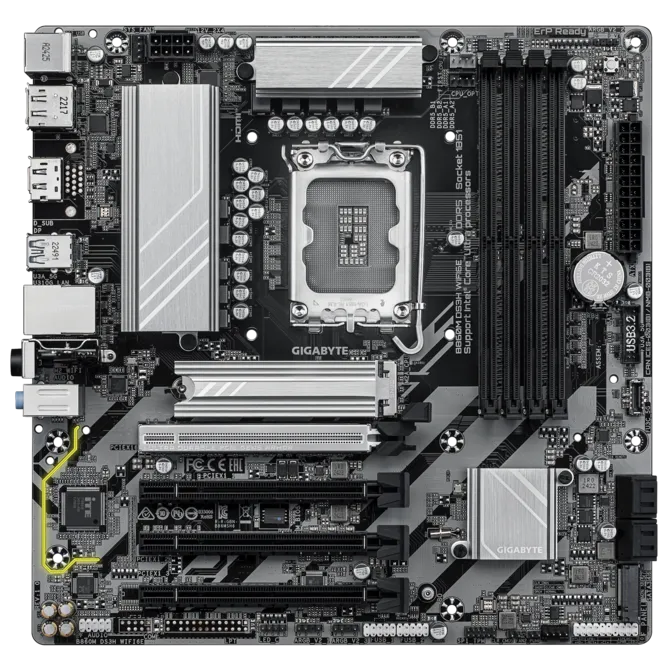

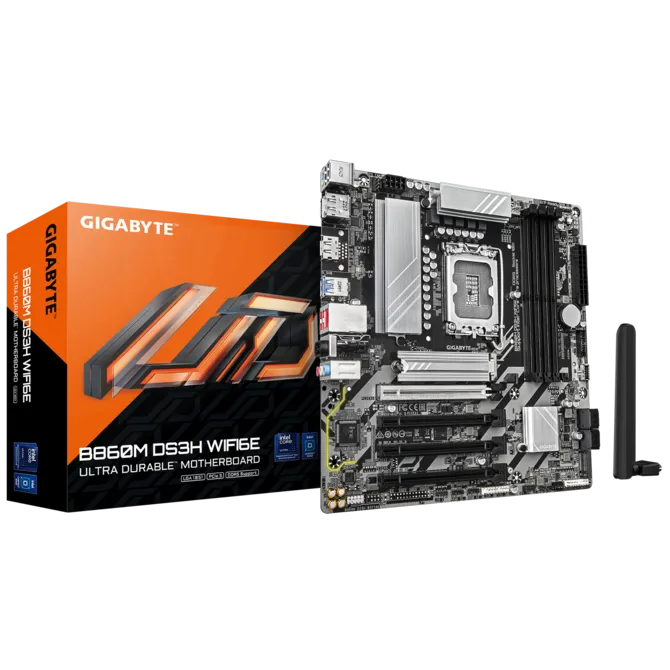

The GIGABYTE B860M DS3H WIFI6E is a Micro-ATX B860 board on DDR5 with Wi-Fi 6E for Intel Core Ultra 200 series processors. It provides three M.2 slots, four SATA ports, 2.5 Gbps LAN and Q-Flash Plus in a compact form factor.
Specifications
- Socket: LGA 1851
- Chipset: Intel B860
- Form Factor: Micro-ATX
- CPU Support: Intel Core Ultra 200 series
- Memory: 2x DDR5 DIMM, up to 96GB, DDR5-6400 (OC)
- PCIe Slots: 1x PCIe 5.0 x16, 1x PCIe 3.0 x1
- M.2: 3x M.2 (1x PCIe 5.0 x4 CPU, 2x PCIe 4.0 x4 chipset, type 2280)
- SATA: 4x SATA 6Gb/s

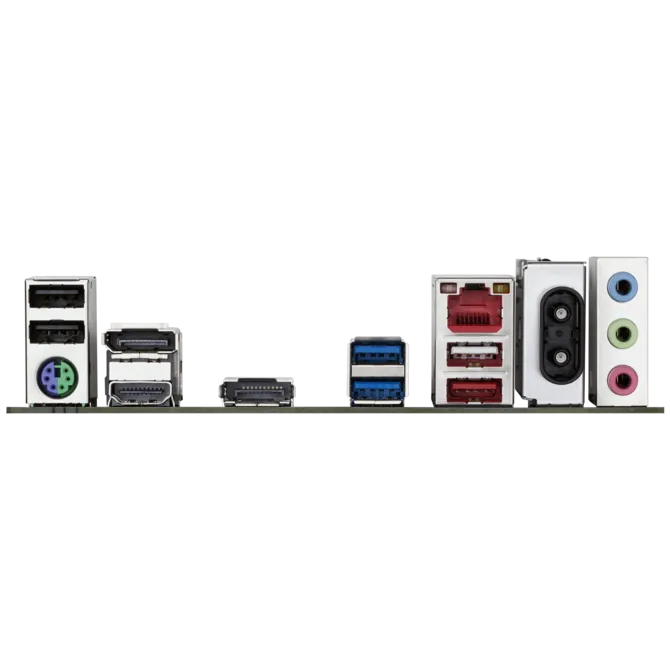

- Rear USB: 1x USB-C 3.2 Gen 2, 3x USB 3.2 Gen 1, 2x USB 2.0
- Display Outputs: 1x HDMI 2.1, 1x DisplayPort
- LAN: 2.5 Gbps
- Wireless: Wi-Fi 6E (802.11ax), Bluetooth 5.3
- Audio: Realtek HD, 7.1-channel
- Features: Q-Flash Plus
- Warranty: 3 Years
Specifications
| Brand | GIGABYTE |
| Model | B860M DS3H WIFI6E |
| Socket | LGA 1851 |
| Chipset | Intel B860 |
| Form Factor | Micro-ATX |
| CPU Support | Intel Core Ultra 200 series |
| Memory | 2x DDR5 DIMM, up to 96GB, DDR5-6400 (OC) |
| PCIe Slots | 1x PCIe 5.0 x16, 1x PCIe 3.0 x1 |
| M.2 | 3x M.2 (1x PCIe 5.0 x4 CPU, 2x PCIe 4.0 x4 chipset, type 2280) |
| SATA | 4x SATA 6Gb/s |
| Rear USB | 1x USB-C 3.2 Gen 2, 3x USB 3.2 Gen 1, 2x USB 2.0 |
| Display Outputs | 1x HDMI 2.1, 1x DisplayPort |
| LAN | 2.5 Gbps |
| Wireless | Wi-Fi 6E (802.11ax), Bluetooth 5.3 |
| Audio | Realtek HD, 7.1-channel |
| Features | Q-Flash Plus |
| Warranty | 3 Years |
