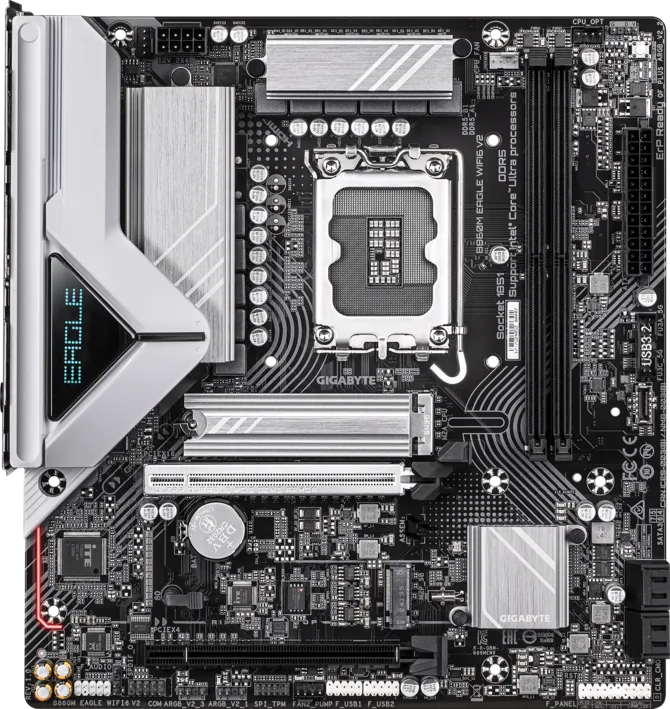

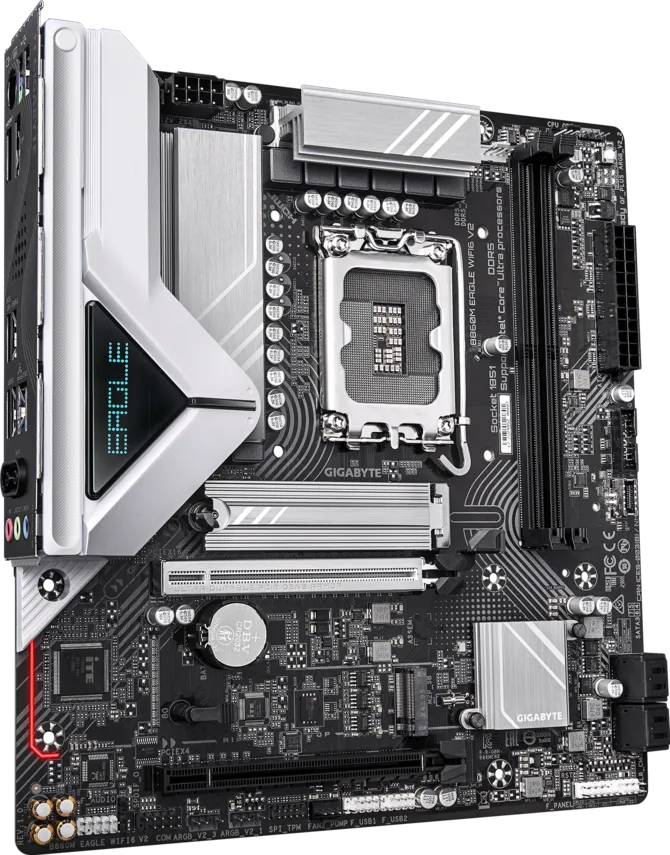

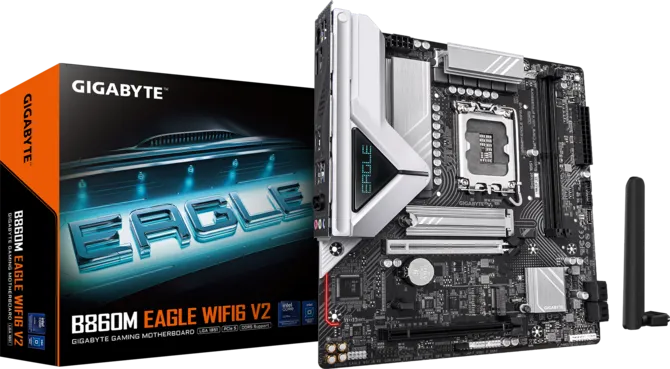

GIGABYTE B860M EAGLE WIFI6 V2

Name: GIGABYTE B860M EAGLE WIFI6 V2
Brand: GIGABYTE
Price: 7500.00 EGP
Availability: InStock

LE 7,500.00

Intel LGA1851 Micro-ATX Motherboard with Wi-Fi 6

The GIGABYTE B860M EAGLE WIFI6 V2 is a feature-rich Micro-ATX motherboard built for Intel Core Ultra Series 2 processors on the LGA1851 platform. With a 6+1+2 digital VRM, DDR5 memory support up to 9066MHz OC, PCIe 5.0 x16, Wi-Fi 6 with Bluetooth 5.3, and 2.5GbE LAN, it delivers a solid and connected platform for modern Intel builds.

🔑 Key Highlights

Intel LGA1851 Socket: Supports Intel® Core™ Ultra Processors (Series 2)
Intel B860 Chipset: Reliable platform for next-gen Intel builds
DDR5 Memory Support: 2x DIMM slots, up to 128GB, DDR5 6400–9066(OC) MT/s with XMP support
PCIe 5.0 x16 Slot: Full bandwidth for the latest GPUs
Ultra-Fast Storage: 2x M.2 slots — 1x PCIe 5.0 x4 (CPU) + 1x PCIe 4.0 x4 (Chipset)
Wi-Fi 6: Realtek® RTL8851BE — 2.4/5 GHz, 80MHz + Bluetooth 5.3
2.5GbE LAN: Realtek® 2.5Gbps for fast, stable wired networking
Display Outputs: 1x HDMI 2.1 (4K@60Hz) + 1x DisplayPort 2.1 (4K@144Hz)

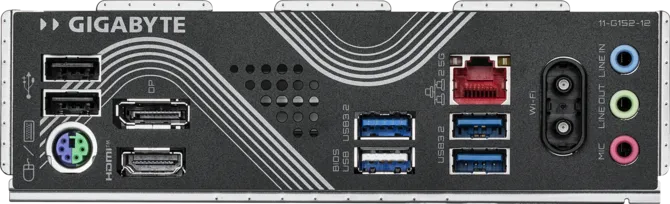

Extensive USB: 3x USB 3.2 Gen1 + 3x USB 2.0 on back panel
6+1+2 Digital VRM Design: Stable power delivery with VRM Thermal Armor

📋 Specifications

CPU Socket: Intel LGA1851
Supported CPUs: Intel® Core™ Ultra Processors (Series 2)
Chipset: Intel® B860 Express
Memory: 2x DDR5 DIMM, up to 128GB, DDR5 6400–9066(OC) MT/s, XMP support
PCIe Slots: 1x PCIe 5.0 x16 (CPU) + 1x PCIe 4.0 x4 (Chipset)
M.2 Slots: 1x PCIe 5.0 x4 (M2A_CPU) + 1x PCIe 4.0 x4 (M2P_SB)
SATA: 4x SATA 6Gb/s, RAID 0/1/5/10 support
LAN: Realtek® 2.5GbE
Wireless: Realtek® Wi-Fi 6 (2.4/5 GHz, 80MHz) + Bluetooth 5.3
Audio: Realtek® HD Audio, 7.1-channel, S/PDIF Out
Display Outputs: 1x HDMI 2.1 (4K@60Hz) + 1x DisplayPort 2.1 (4K@144Hz)
USB (Back Panel): 3x USB 3.2 Gen1, 3x USB 2.0
Internal Headers: 1x USB-C 3.2 Gen1, 1x USB 3.2 Gen1, 2x USB 2.0, 3x ARGB Gen2
VRM / Power Phases: 6+1+2 Digital VRM Design
Form Factor: Micro-ATX (24.4cm x 22.5cm)
BIOS: AMI UEFI BIOS, Q-Flash, Q-Flash Plus
OS Support: Windows 11 / Windows 10 64-bit

Specifications

Brand	GIGABYTE
Model	B860M EAGLE WIFI6 V2
Socket Compatibility	B860M EAGLE WIFI6 V2
Chipset	Intel LGA1851
Memory Support	2x DDR5 DIMM, up to 128GB, DDR5 6400–9066(OC) MT/s
PCIe Slots	1x PCIe 5.0 x16 (CPU) + 1x PCIe 4.0 x4 (Chipset)
M.2 Slots	1x PCIe 5.0 x4 (CPU) + 1x PCIe 4.0 x4 (Chipset)
SATA	4x SATA 6Gb/s
LAN	Realtek® 2.5GbE
Wireless	Realtek® Wi-Fi 6 (2.4/5 GHz, 80MHz) + BT 5.3
Audio	Realtek® HD Audio, 7.1-channel, S/PDIF Out
Display Outputs	1x HDMI 2.1 + 1x DisplayPort 2.1
USB (Back Panel)	3x USB 3.2 Gen1, 3x USB 2.0
Memory Channels	Dual Channel
VRM / Power Phases	6+1+2 Digital VRM

Why Choose it?

The GIGABYTE B860M EAGLE WIFI6 V2 is the ideal choice for builders stepping into the Intel Core Ultra Series 2 platform without breaking the bank. PCIe 5.0 x16 ensures your GPU runs at full speed, while the PCIe 5.0 M.2 slot delivers blazing-fast NVMe storage. DDR5 memory up to 9066MHz OC with XMP support pushes performance to the limit, and built-in Wi-Fi 6 with Bluetooth 5.3 keeps you wirelessly connected. The 6+1+2 VRM with Thermal Armor provides stable power delivery, all packed into a compact Micro-ATX form factor.
