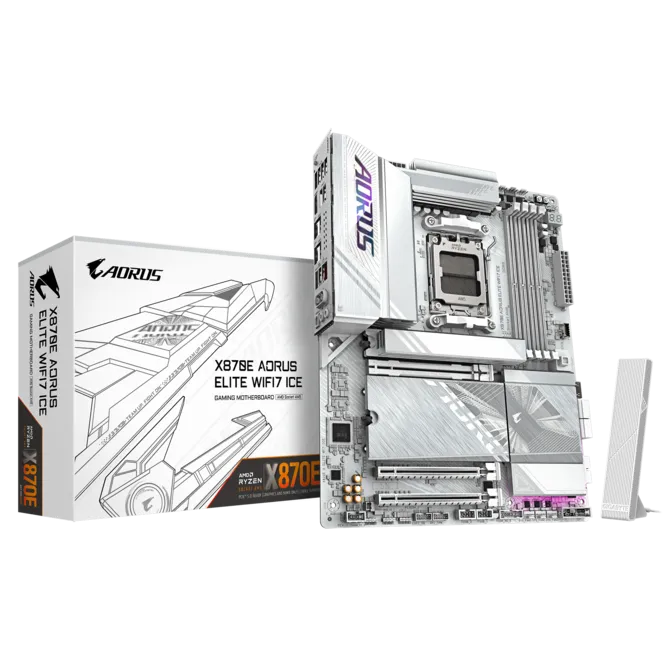

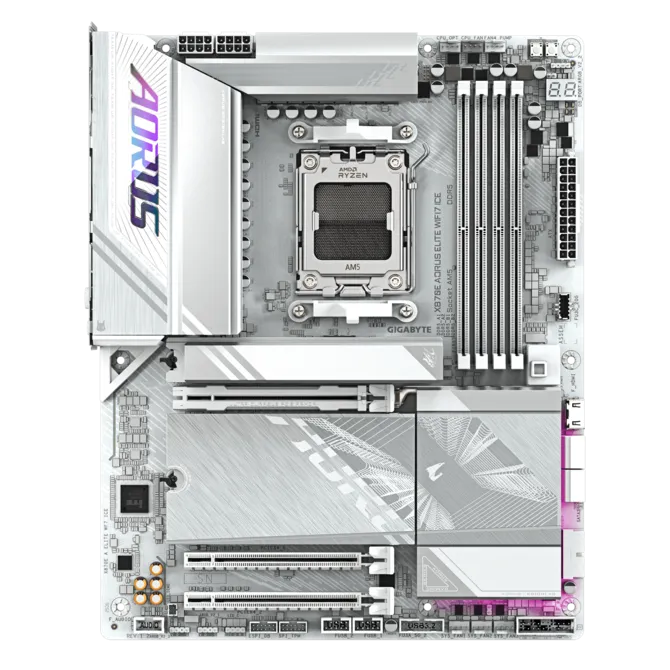

GIGABYTE X870E AORUS ELITE WIFI7 ICE

AMD AM5 ATX Motherboard

🔑 Key Highlights

• Socket AM5 Compatibility: Supports AMD Ryzen 9000, 8000, and 7000 Series Processors for current and next-gen builds.
• AMD X870E Chipset: Flagship enthusiast platform with maximum PCIe 5.0 lanes, overclocking headroom, and premium connectivity.
• DDR5 Memory up to 8200MHz (OC): 4x DIMM slots supporting up to 256GB DDR5, with AMD EXPO and Intel XMP support.
• PCIe 5.0 x16 Slot (PCIe UD Slot X): Metal-reinforced slot with 10X strength for GPU support — PCIe 5.0 x16 for Ryzen 9000/7000 (PCIe 4.0 x8/x4 for Ryzen 8000 Series).
• 4x M.2 NVMe Slots (3x PCIe 5.0 x4): M2A/B/C_CPU all support PCIe 5.0 x4 (Ryzen 9000/7000) + M2D_SB PCIe 4.0 x4 — maximum storage bandwidth.
• Dual USB4 Type-C Ports: Back panel USB4 with DisplayPort Alt Mode (4K@240Hz) via ASMedia USB4 controller.
• Wi-Fi 7 + Bluetooth 5.4: Realtek RTL8922AE supporting 2.4/5/6 GHz bands and 160MHz channels with directional ultra-high gain antenna.
• 2.5GbE LAN: Realtek 2.5 Gigabit wired networking for ultra-low latency gaming and streaming.
• Realtek ALC1220 HD Audio: Audiophile-grade capacitors with S/PDIF Out for premium sound output.
• Sensor Panel Link: Onboard HDMI 1.4 front port for hassle-free in-chassis display panel setup.
• EZ-Latch Plus & EZ-Latch Click: Tool-free PCIe and M.2 slot release with screwless M.2 heatsink design.
• Q-Flash Plus: Update BIOS without CPU or RAM installed for hassle-free setup.
• 16+2+2 Digital VRM Design: Robust power delivery with VRM Thermal Armor Advanced for sustained CPU performance.

📋 Specifications

• CPU Socket: AMD Socket AM5
• Supported CPUs: AMD Ryzen 9000 / 8000 / 7000 Series Processors
• Chipset: AMD X870E
• Memory: 4x DDR5 DIMM, Dual Channel, up to 256GB (64GB per DIMM)
• Memory Speed: DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 MT/s
• Memory Type: Non-ECC Unbuffered DIMM 1Rx8 / 2Rx8 / 1Rx16; AMD EXPO & XMP support
• Onboard Graphics: AMD Radeon Graphics (via CPU iGPU)
• Display Outputs: 1x HDMI 2.1 (4096x2160@60Hz, HDCP 2.3, HDR) + 2x USB4 Type-C with DisplayPort 1.4 (3840x2160@240Hz, HDR) + 1x Front HDMI 1.4 (1920x1080@30Hz, Sensor Panel Link); Quad-display support
• Audio: Realtek ALC1220 CODEC, High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out, Audiophile-grade capacitors
• LAN: Realtek 2.5GbE LAN (2.5 Gbps / 1 Gbps / 100 Mbps)
• Wireless: Wi-Fi 7 (802.11a/b/g/n/ac/ax/be), 2.4/5/6 GHz, 160MHz; Bluetooth 5.4 — Realtek RTL8922AE
• Expansion Slots: 1x PCIe x16 (CPU, PCIe 5.0 x16 for Ryzen 9000/7000; PCIe 4.0 x8/x4 for Ryzen 8000) + 1x PCIe x16 at x4 (Chipset, PCIe 4.0) + 1x PCIe x16 at x4 (Chipset, PCIe 3.0)
• Storage: 4x M.2 (M2A_CPU: PCIe 5.0 x4, type 25110/22110/2580/2280; M2B_CPU & M2C_CPU: PCIe 5.0 x4, type 22110/2280, Ryzen 9000/7000 only; M2D_SB: PCIe 4.0 x4, type 22110/2280) + 4x SATA 6Gb/s
• RAID: RAID 0/1/5/10 for NVMe (RAID 5 on Ryzen 9000 only); RAID 0/1/10 for SATA
• USB (Back Panel): 2x USB4 Type-C (DisplayPort) + 2x USB 3.2 Gen 2 Type-A (red) + 4x USB 3.2 Gen 1 + 4x USB 2.0/1.1 + 1x optical S/PDIF Out
• USB (Internal): 1x USB Type-C header (USB 3.2 Gen 2x2) + 2x USB 3.2 Gen 1 headers + 2x USB 2.0/1.1 headers
• Internal Connectors: 1x 24-pin ATX power, 2x 8-pin ATX 12V, 1x CPU fan, 1x CPU fan/pump, 3x system fan headers, 1x system fan/pump, 3x ARGB Gen2 headers, 1x RGB header, 4x M.2 connectors, 4x SATA 6Gb/s, 1x front panel, 1x front panel audio, 1x front HDMI (Sensor Panel Link), 1x TPM header, 1x power button, 1x reset button, 1x reset jumper, 1x Clear CMOS jumper

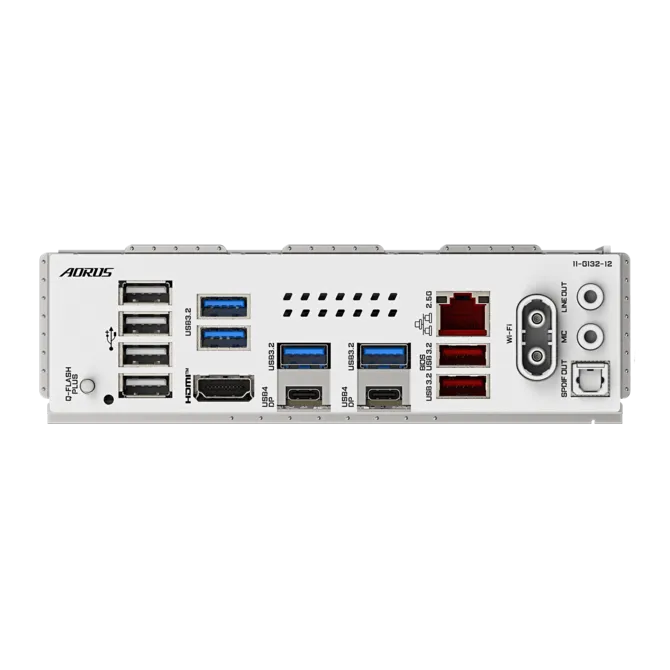

• Back Panel: 1x Q-Flash Plus, 2x antenna connectors (2T2R), 1x HDMI 2.1, 2x USB4 Type-C (DisplayPort), 2x USB 3.2 Gen 2 Type-A (red), 4x USB 3.2 Gen 1, 4x USB 2.0/1.1, 1x RJ-45, 2x audio jacks, 1x optical S/PDIF Out
• I/O Controller: iTE I/O Controller Chip
• Hardware Monitoring: Voltage, Temperature, Fan Speed, Water Cooling Flow Rate, Fan Fail Warning, Fan Speed Control
• BIOS: 256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• VRM / Power Phases: 16+2+2 Digital VRM Design with VRM Thermal Armor Advanced
• Software: GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup
• OS Support: Windows 11 64-bit
• Form Factor: ATX (30.5cm x 24.4cm)
