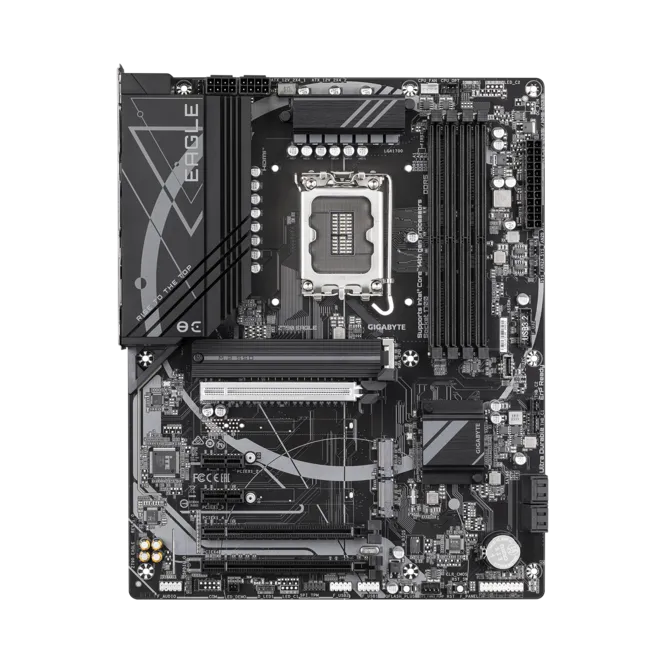

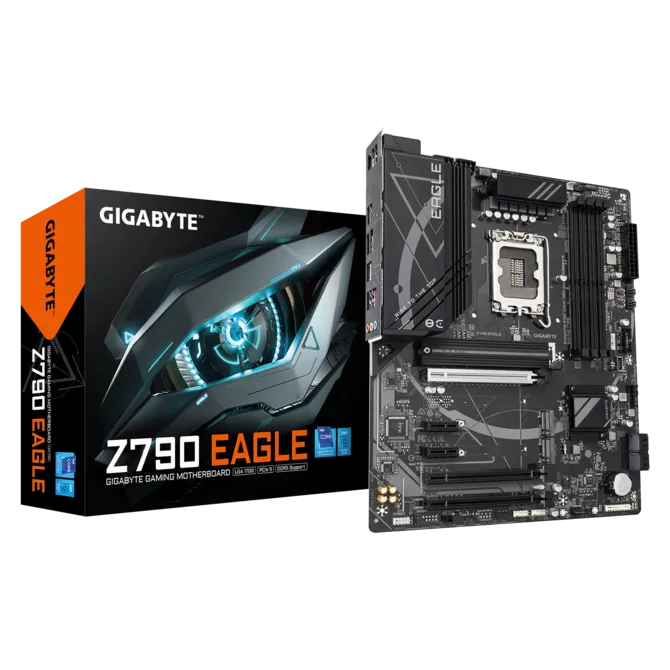

GIGABYTE Z790 EAGLE

Intel LGA1700 ATX Motherboard

🔑 Key Highlights

• Processor Support: Supports Intel® Core™ 14th / 13th / 12th processors
• Twin Digital VRM: Twin 12+1+1 Phases Digital VRM Solution for unparalleled performance
• Dual Channel DDR5: 4x DIMMs with XMP 3.0 Memory Module Support
• Next Gen Storage: 3x PCIe 4.0 x4 M.2 Connectors
• Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
• EZ-Latch: PCIe 5.0 x16 Slot with Quick Release Design
• Fast Networks: 2.5GbE LAN
• Extended Connectivity: DP, HDMI, Rear USB-C® 10Gb/s
• Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
• Power Phases: 12+1+1 Digital VRM (6+6 phases parallel power design)

📋 Specifications

• Socket: Intel LGA1700 — Support for 14th, 13th, 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
• Chipset: Intel® Z790 Express
• Form Factor: ATX (30.5cm x 24.4cm)
• Memory Slots: 4x DDR5 DIMM, Dual Channel, up to 256GB (64GB per DIMM)
• Memory Speed (i9/i7 14th/13th Gen): DDR5 4400 / 4800 / 5200 / 5400 / 5600 / 5800(O.C.) / 6000(O.C.) / 6200(O.C.) / 6400(O.C.) / 6600(O.C.) / 6800(O.C.) / 7000(O.C.) / 7200(O.C.) / 7400(O.C.) / 7600(O.C.) MT/s
• Memory Speed (i5/i3 13th Gen & 12th Gen): DDR5 4800 / 4400 MT/s
• Memory Support: XMP, ECC Un-buffered 1Rx8/2Rx8 (non-ECC mode), Non-ECC Un-buffered 1Rx8/2Rx8/1Rx16
• Onboard Graphics: Intel® HD Graphics — 1x HDMI 2.1 (4096x2160@60Hz, HDCP 2.3), 1x DisplayPort 1.2 (4096x2304@60Hz, HDCP 2.3)
• Audio: Realtek® HD Audio CODEC, 2/4/5.1/7.1-ch, S/PDIF Out
• LAN: Realtek® 2.5GbE (2.5 Gbps / 1 Gbps / 100 Mbps)
• Wireless: None
• PCIe Slots: 1x PCIe 5.0 x16 (CPU, EZ-Latch), 1x PCIe 4.0 x4 (Chipset), 1x PCIe 3.0 x1, 2x PCIe 3.0 x1
• Storage: 1x M.2 PCIe 4.0 x4 (M2A_CPU, type 22110/2280) + 1x M.2 PCIe 4.0 x4 (M2P_SB, type 2280) + 1x M.2 SATA/PCIe 4.0 x4 (M2M_SB, type 2280) + 4x SATA 6Gb/s
• RAID: RAID 0/1/5/10 for NVMe & SATA

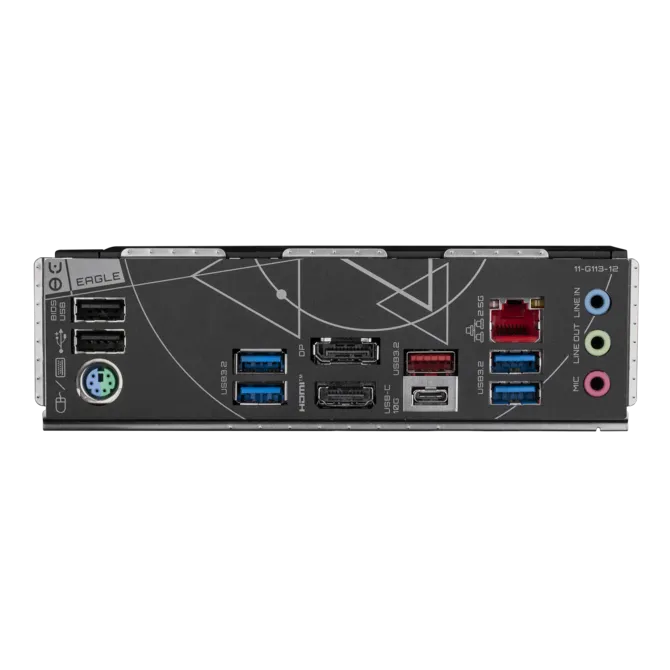

• USB Rear: 1x USB-C® 10Gb/s, 1x USB-A 10Gb/s (red), 4x USB 3.2 Gen1, 2x USB 2.0
• USB Internal: 1x USB-C® Gen1 header, 1x USB 3.2 Gen1 header, 2x USB 2.0 headers
• Fan Headers: 1x CPU, 1x CPU/Pump, 3x System, 1x System/Pump
• LED Headers: 2x Addressable LED strip headers
• Other Internal: 2x Thunderbolt™ add-in card connectors, 1x TPM header, Q-Flash Plus button, Reset button
• BIOS: 256Mbit AMI UEFI, Q-Flash, Q-Flash Plus, Smart Backup
• OS Support: Windows 11 / Windows 10 (64-bit)
• VRM / Power Phases: 12+1+1 Digital VRM (Twin 12+1+1 Phases, 6+6 parallel power design)
