GIGABYTE Z790 EAGLE AX
LE 10,500.00
Return within 14 days provided the item is in its original condition

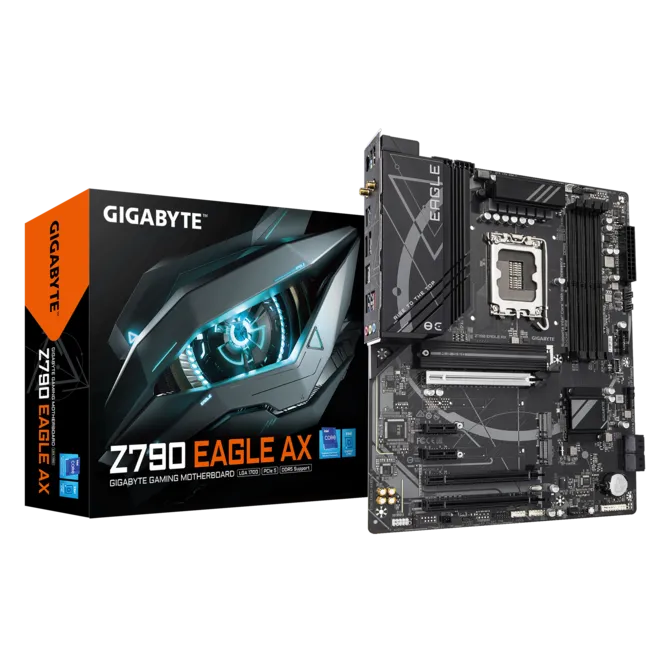

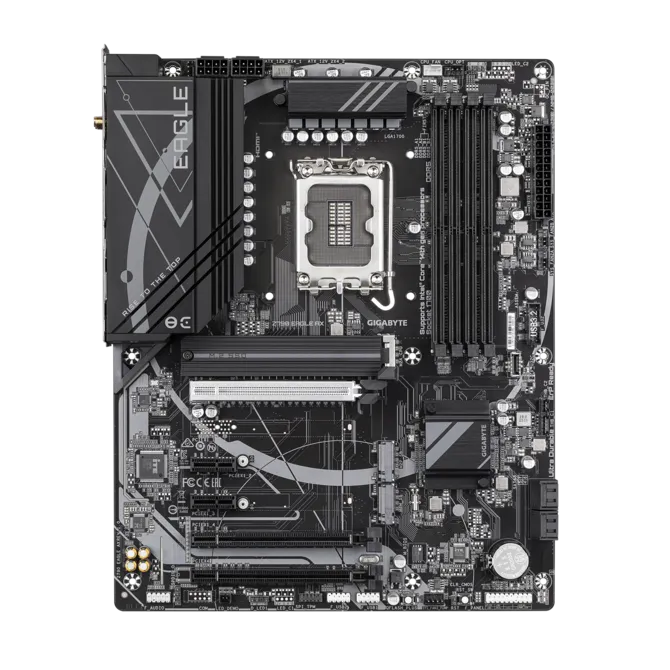

GIGABYTE Z790 EAGLE AX
The GIGABYTE Z790 EAGLE AX adds Wi-Fi 6E and Bluetooth 5.3 to the Z790 EAGLE. Everything else stays the same — ATX, DDR5, four M.2 slots, 2.5 Gbps LAN and unlocked overclocking — with wireless now built in.
Specifications
- Socket: LGA 1700
- Chipset: Intel Z790
- Form Factor: ATX
- CPU Support: Intel Core 12th, 13th and 14th Gen
- Memory: 4x DDR5 DIMM, up to 192GB, DDR5-7600 (OC)
- PCIe Slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x4, 2x PCIe 3.0 x1
- M.2: 4x M.2 (1x PCIe 5.0 x4 CPU, 3x PCIe 4.0 x4 chipset, type 2280/22110)
- SATA: 6x SATA 6Gb/s

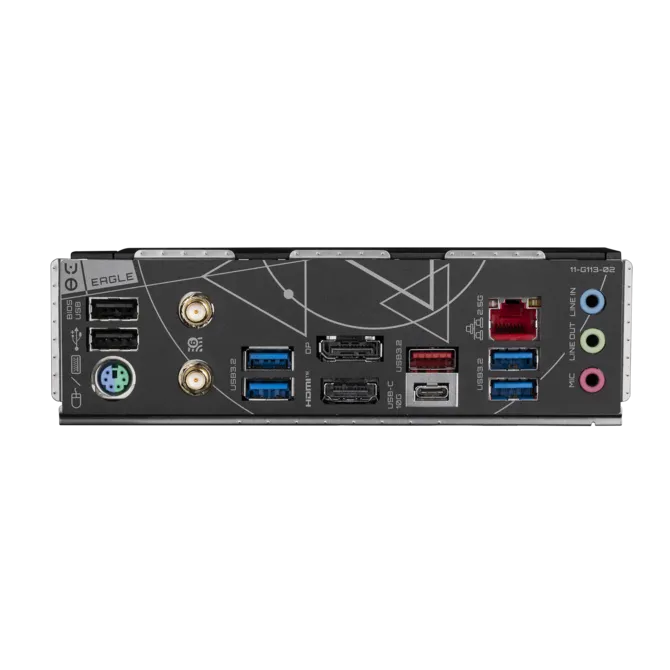

- Rear USB: 1x USB-C 3.2 Gen 2x2 (20Gbps), 1x USB-C 3.2 Gen 2, 4x USB 3.2 Gen 1, 2x USB 2.0
- Display Outputs: 1x HDMI 2.1, 2x DisplayPort
- LAN: 2.5 Gbps
- Wireless: Wi-Fi 6E (802.11ax), Bluetooth 5.3
- Audio: Realtek HD, 7.1-channel
- Features: Unlocked overclocking, M.2 thermal guards, RGB lighting, Q-Flash Plus
- Warranty: 3 Years
Specifications
| Brand | GIGABYTE |
| Model | Z790 EAGLE AX |
| Socket | LGA 1700 |
| Chipset | Intel Z790 |
| Form Factor | ATX |
| CPU Support | Intel Core 12th, 13th and 14th Gen |
| Memory | 4x DDR5 DIMM, up to 192GB, DDR5-7600 (OC) |
| PCIe Slots | 1x PCIe 5.0 x16, 1x PCIe 4.0 x4, 2x PCIe 3.0 x1 |
| M.2 | 4x M.2 (1x PCIe 5.0 x4 CPU, 3x PCIe 4.0 x4 chipset, type 2280/22110) |
| SATA | 6x SATA 6Gb/s |
| Rear USB | 1x USB-C 3.2 Gen 2x2 (20Gbps), 1x USB-C 3.2 Gen 2, 4x USB 3.2 Gen 1, 2x USB 2.0 |
| Display Outputs | 1x HDMI 2.1, 2x DisplayPort |
| LAN | 2.5 Gbps |
| Wireless | Wi-Fi 6E (802.11ax), Bluetooth 5.3 |
| Audio | Realtek HD, 7.1-channel |
| Features | Unlocked overclocking, M.2 thermal guards, RGB lighting, Q-Flash Plus |
| Warranty | 3 Years |
