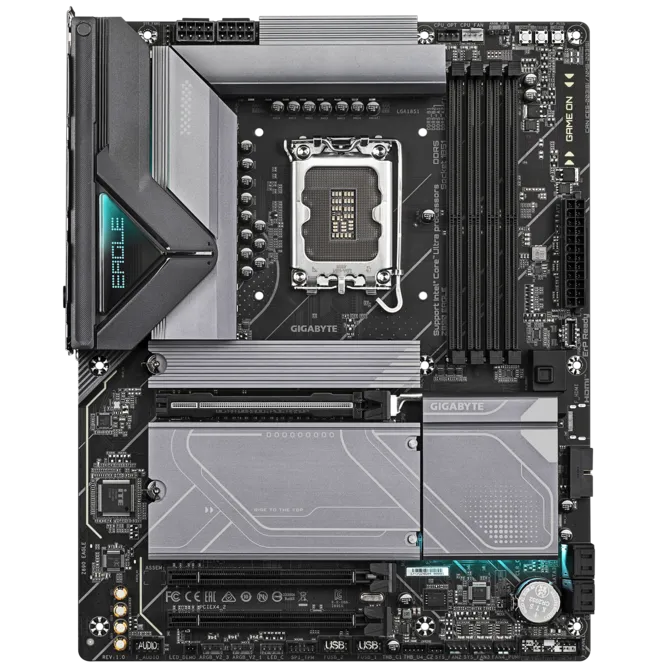

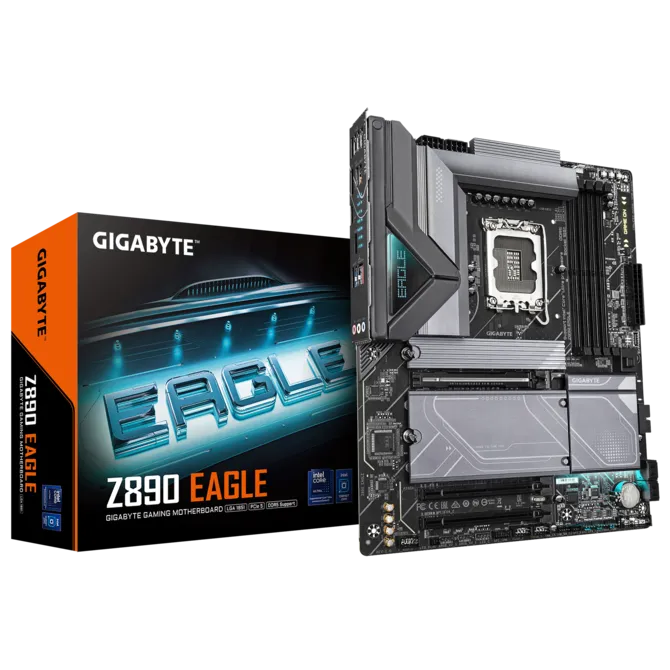

GIGABYTE Z890 EAGLE

Intel LGA1851 ATX Motherboard

🔑 Key Highlights

• Processor Support: Supports Intel® Core™ Ultra processors (Series 2)
• Digital Twin VRM: 14+1+2 Phases Digital VRM Solution for unparalleled performance
• D5 Bionic Corsa: Infinite Memory Performance with DDR5
• AI Perfdrive: Provides optimal and customized BIOS preset profile for users
• Premium Compatibility: 4x DDR5 DIMMs with XMP Memory Module Support
• EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click: M.2 heatsinks with screwless design
• Ultra-Fast Storage: 4x M.2 slots, including 1x PCIe 5.0 x4
• PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card
• Fast Networking: 2.5GbE LAN
• Extended Connectivity: USB4 Type-C with DP-Alt, DisplayPort
• Power Phases: Digital Twin 14+1+2 Phases VRM Solution

📋 Specifications

• Socket: Intel LGA1851 — Support for Intel® Core™ Ultra Processors (Series 2)
• Chipset: Intel® Z890 Express
• Form Factor: ATX (30.5cm x 24.4cm)
• Memory Slots: 4x DDR5 DIMM, Dual Channel, up to 256GB (64GB per DIMM)
• Memory Speed: DDR5 5600 / 5800 / 6000 / 6200 / 6400 / 6600(O.C.) / 6800(O.C.) / 7000(O.C.) / 7200(O.C.) / 7400(O.C.) / 7600(O.C.) / 7800(O.C.) / 7900(O.C.) / 7950(O.C.) / 8000(O.C.) / 8200(O.C.) / 8266(O.C.) / 8400(O.C.) / 8600(O.C.) / 8800(O.C.) MT/s
• Memory Support: XMP, ECC Un-buffered 1Rx8/2Rx8 (non-ECC mode), Non-ECC Un-buffered 1Rx8/2Rx8/1Rx16
• Onboard Graphics: Intel® HD Graphics — 1x USB4® Type-C® (DisplayPort 2.1, 3840x2160@144Hz), 1x DisplayPort 2.1 (3840x2160@144Hz)
• Audio: Realtek® HD Audio CODEC, 2/4/5.1/7.1-ch
• LAN: Realtek® 2.5GbE (2.5 Gbps / 1 Gbps / 100 Mbps)
• Wireless: None
• PCIe Slots: 1x PCIe 5.0 x16 (CPU, PCIe UD Slot X), 2x PCIe 4.0 x4 (Chipset, PCIEX4_1/2)
• Storage: 1x M.2 PCIe 5.0 x4 (M2A_CPU, type 25110/22110/2580/2280) + 1x M.2 PCIe 4.0 x4 (M2B_CPU, type 22110/2280) + 1x M.2 PCIe 4.0 x4 (M2Q_SB, type 22110/2280) + 1x M.2 SATA/PCIe 4.0 x4 (M2M_SB, type 22110/2280) + 4x SATA 6Gb/s
• RAID: RAID 0/1/5/10 for NVMe & SATA

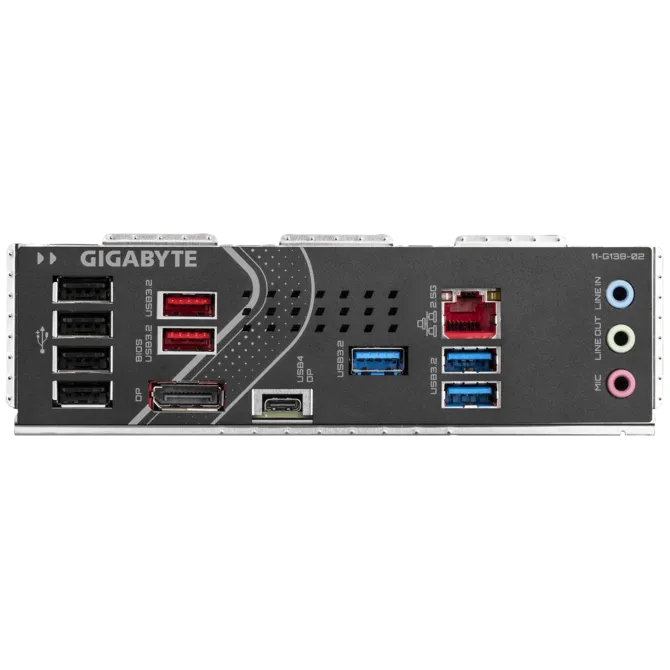

• USB Rear: 1x USB4® Type-C® (DP-Alt), 2x USB-A 10Gb/s (red), 3x USB 3.2 Gen1, 4x USB 2.0
• USB Internal: 1x USB-C® Gen2 header, 1x USB 3.2 Gen1 header, 2x USB 2.0 headers
• Fan Headers: 1x CPU, 1x CPU/Pump, 3x System, 1x System/Pump
• LED Headers: 3x Addressable RGB Gen2, 1x RGB LED strip header
• Other Internal: 2x Thunderbolt™ 5 add-in card connectors, 1x TPM header, Q-Flash Plus button, Power button, Reset button
• BIOS: 256Mbit AMI UEFI, Q-Flash, Q-Flash Plus, Smart Backup
• OS Support: Windows 11 (64-bit)
• VRM / Power Phases: Digital Twin 14+1+2 Phases VRM Solution
