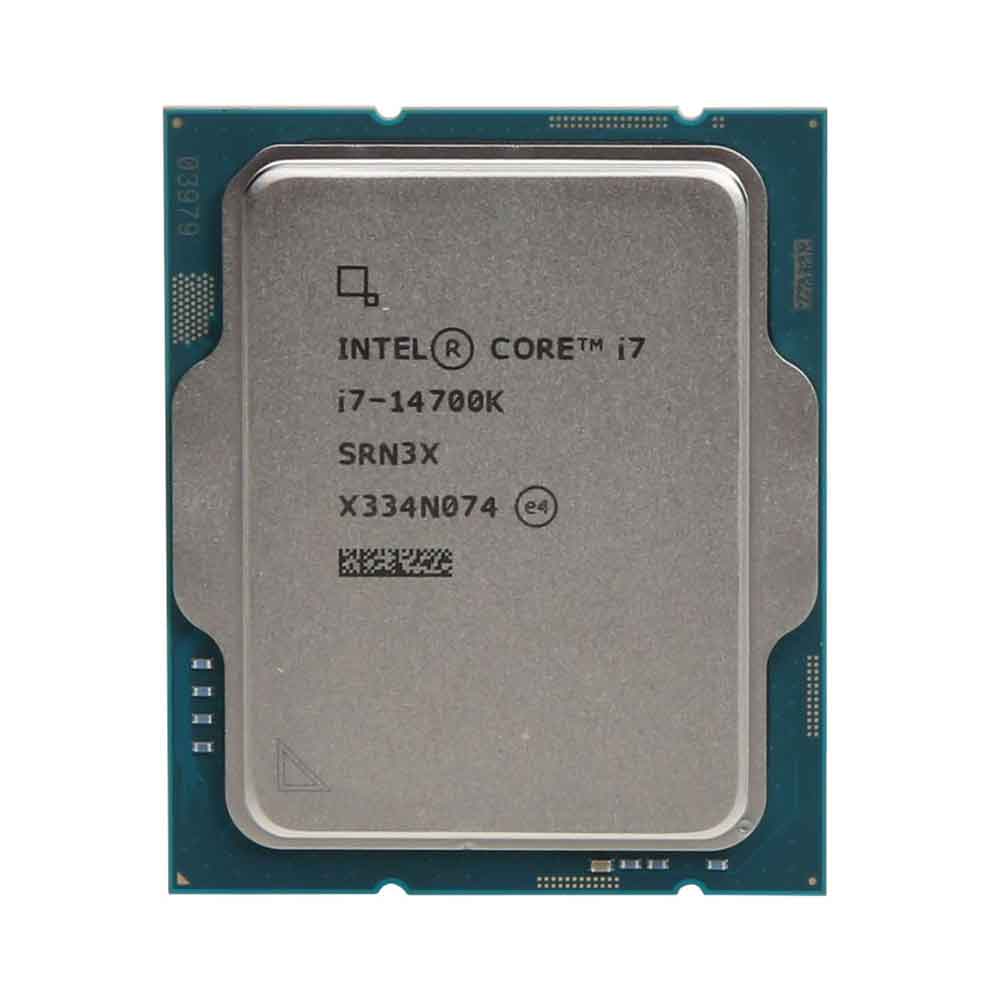

Intel Core i7-14700K (Tray) Desktop Processor | 20 Cores, 28 Threads, Up to 5.6GHz (Without Cooler)

Intel Core i7-14700K 14th Gen Tray Desktop Processor

The Intel Core i7-14700K is an unlocked desktop processor with 20 cores, 28 threads, and boost speeds of up to 5.6GHz. It supports overclocking on a compatible Z-series motherboard and includes Intel UHD Graphics 770 for systems that do not require a discrete graphics card. This Tray version is supplied without a cooler.

Key Specifications

• Cores / Threads: 20 cores (8P + 12E) / 28 threads
• Base Clock: 3.4GHz (P-cores)
• Boost Clock: Up to 5.6GHz
• L3 Cache: 33MB Intel Smart Cache
• Socket: LGA 1700
• TDP: 125W (253W Max Turbo Power)
• Integrated Graphics: Intel UHD Graphics 770
• Graphics Base Frequency: 300MHz
• Graphics Max Dynamic Frequency: 1.6GHz
• Graphics Outputs: eDP 1.4b, DisplayPort 1.4a, HDMI 2.1
• Execution Units: 32
• Maximum Resolution: HDMI: 4096 × 2160 at 60Hz; DisplayPort: 7680 × 4320 at 60Hz; eDP: 5120 × 3200 at 120Hz
• DirectX Support: 12
• OpenGL Support: 4.5
• OpenCL Support: 3.0
• Multi-Format Codec Engines: 2
• Intel Quick Sync Video: Yes
• Intel Clear Video HD Technology: Yes
• Supported Displays: Up to 4
• Memory Support: DDR4 / DDR5
• Overclocking: Unlocked
• Generation: 14th Gen Raptor Lake Refresh
• DMI Revision: 4.0
• Maximum DMI Lanes: 8
• Scalability: 1S only
• PCI Express: PCIe 5.0 and 4.0
• PCI Express Configurations: Up to 1x16+4 or 2x8+4
• Maximum PCI Express Lanes: 20
• Package: Tray, no cooler included
