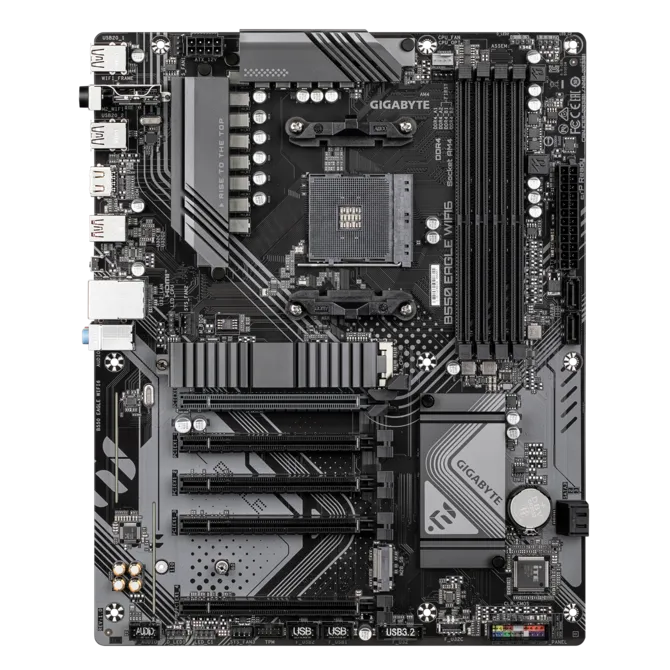

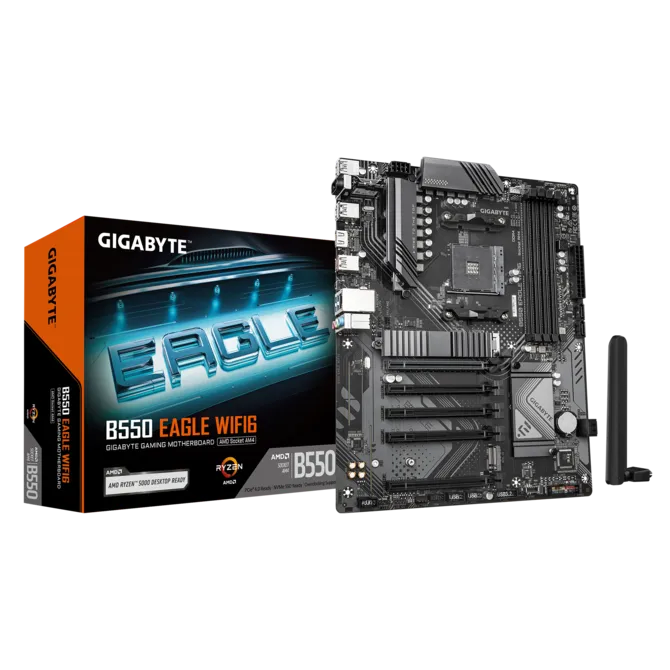

GIGABYTE B550 EAGLE WIFI6

AMD AM4 ATX Motherboard

🔑 Key Highlights

• Supports AMD Ryzen 5000 / 4000 G / 3000 Series Processors (Socket AM4)
• Dual Channel DDR4 — 4 DIMM slots — Up to 128GB — DDR4 3200/2933/2667/2400/2133 MT/s
• 2x M.2 Slots: PCIe 4.0 x4 (CPU) + PCIe 3.0 x4 (Chipset) — Up to 22110
• WiFi 6 (802.11ax 2.4/5GHz) + Bluetooth 5.3 — Realtek RTL8851BE
• Onboard HDMI 2.1 (4K@60Hz) with AMD Radeon Graphics support
• RGB Fusion 2.0 — 2x ARGB + 2x RGB headers
• Q-Flash Plus — BIOS update without CPU/Memory installed
• Support for ECC & XMP memory modules
• RAID 0/1/10 for NVMe and SATA storage

📋 Full Specifications

• CPU: AMD Ryzen 5000 G / 5000 / 4000 G / 3000 G / 3000 Series (AM4)
• Chipset: AMD B550
• Form Factor: ATX
• Memory: 4x DDR4 DIMM — Dual Channel — Up to 128GB (32GB per DIMM) — DDR4 3200/2933/2667/2400/2133 MT/s — XMP & ECC support
• Onboard Graphics: HDMI 2.1 up to 4096x2160@60Hz (requires Ryzen G-Series CPU)
• Expansion Slots: 1x PCIe 4.0 x16 (CPU) | 4x PCIe 3.0 x1 (Chipset)
• Storage: 4x SATA 6Gb/s | 1x M.2 PCIe 4.0 x4 / SATA (CPU, up to 22110) | 1x M.2 PCIe 3.0 x4 (Chipset, up to 22110)
• RAID: RAID 0, 1, 10 for NVMe and SATA

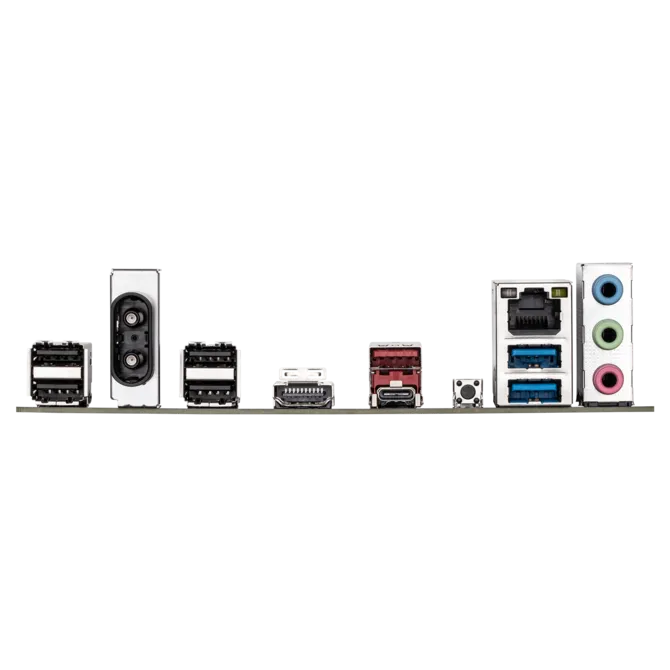

• USB (Rear): 1x USB 3.2 Gen 2 Type-A (red) | 1x USB 3.2 Gen 1 Type-C | 2x USB 3.2 Gen 1 | 4x USB 2.0
• USB (Internal): 1x USB 3.2 Gen 1 Type-C header | 1x USB 3.2 Gen 1 header | 2x USB 2.0 headers
• Wireless: WiFi 6 802.11a/b/g/n/ac/ax — 2.4/5GHz | Bluetooth 5.3 — Realtek RTL8851BE
• LAN: Realtek GbE (1 Gbps)
• Audio: Realtek HD Audio CODEC — 2/4/5.1/7.1 Channel
• Power: 24-pin ATX | 8-pin ATX 12V
• Fan Headers: 1x CPU Fan | 1x CPU Fan/Water Pump | 3x System Fan
• RGB Headers: 2x ARGB | 2x RGB | 1x CPU Cooler LED
• BIOS: 128Mb Flash — AMI UEFI BIOS — Q-Flash Plus
• Software: @BIOS | EasyTune | RGB Fusion | Smart Backup | System Information Viewer

Weight listed is with the box and all accessories included.
