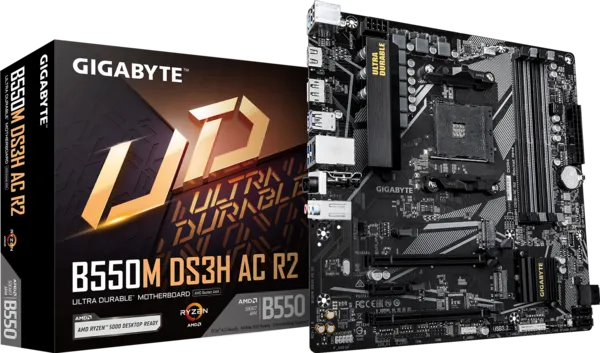

GIGABYTE B550M DS3H AC R2
LE 5,500.00
Skip to product information
GIGABYTE B550M DS3H AC R2
LE 5,500.00
Return within 14 days provided the item is in its original condition
GIGABYTE B550M DS3H AC R2

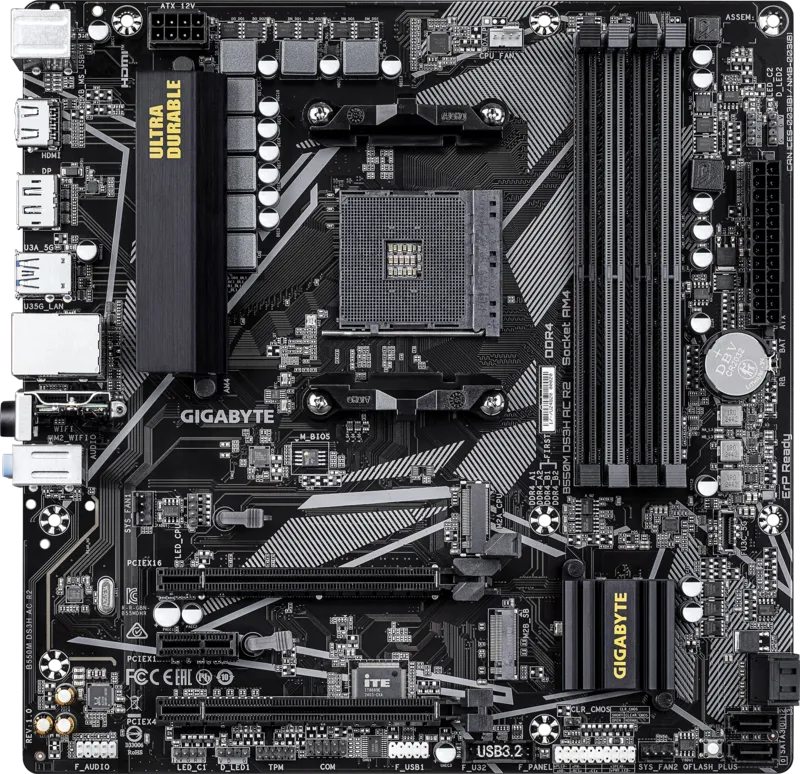

The GIGABYTE B550M DS3H AC R2 is a Micro-ATX B550 board on DDR4 with Wi-Fi 5 for AMD Ryzen 3000, 4000 and 5000 series on AM4. It provides two M.2 slots, four SATA ports and 1 Gbps LAN in a compact layout.
Specifications
- Socket: AM4
- Chipset: AMD B550
- Form Factor: Micro-ATX
- CPU Support: AMD Ryzen 3000, 4000 and 5000 series
- Memory: 4x DDR4 DIMM, up to 128GB, DDR4-5300 (OC)
- PCIe Slots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x1
- M.2: 2x M.2 (1x PCIe 4.0 x4 CPU, 1x PCIe 3.0 x4 chipset, type 2280)
- SATA: 4x SATA 6Gb/s
- Rear USB: 1x USB-C 3.2 Gen 1, 2x USB 3.2 Gen 1, 4x USB 2.0
- Display Outputs: 1x HDMI 2.1, 1x DisplayPort 1.2, 1x D-Sub
- LAN: 1 Gbps
- Wireless: Wi-Fi 5 (802.11ac), Bluetooth 5.1
- Audio: Realtek ALC887, 7.1-channel
- Warranty: 3 Years
Specifications
| Brand | GIGABYTE |
| Model | B550M DS3H AC R2 |
| Socket | AM4 |
| Chipset | AMD B550 |
| Form Factor | Micro-ATX |
| CPU Support | AMD Ryzen 3000, 4000 and 5000 series |
| Memory | 4x DDR4 DIMM, up to 128GB, DDR4-5300 (OC) |
| PCIe Slots | 1x PCIe 4.0 x16, 1x PCIe 3.0 x1 |
| M.2 | 2x M.2 (1x PCIe 4.0 x4 CPU, 1x PCIe 3.0 x4 chipset, type 2280) |
| SATA | 4x SATA 6Gb/s |
| Rear USB | 1x USB-C 3.2 Gen 1, 2x USB 3.2 Gen 1, 4x USB 2.0 |
| Display Outputs | 1x HDMI 2.1, 1x DisplayPort 1.2, 1x D-Sub |
| LAN | 1 Gbps |
| Wireless | Wi-Fi 5 (802.11ac), Bluetooth 5.1 |
| Audio | Realtek ALC887, 7.1-channel |
| Warranty | 3 Years |
