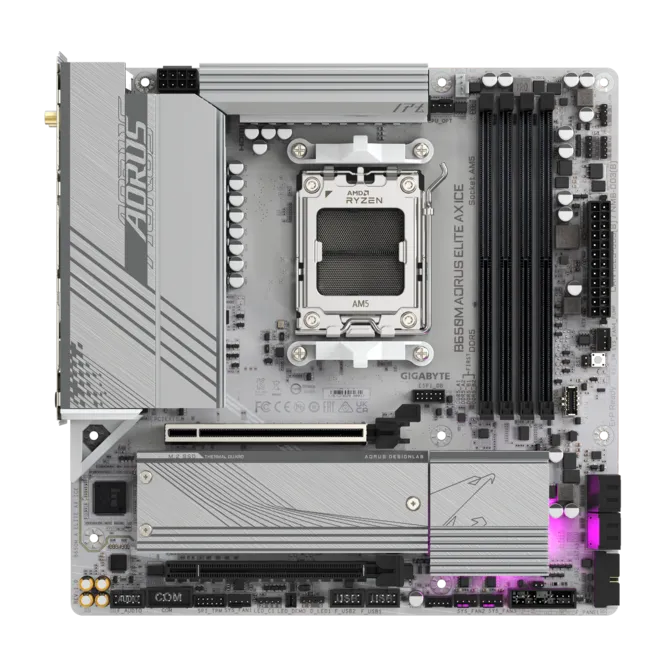

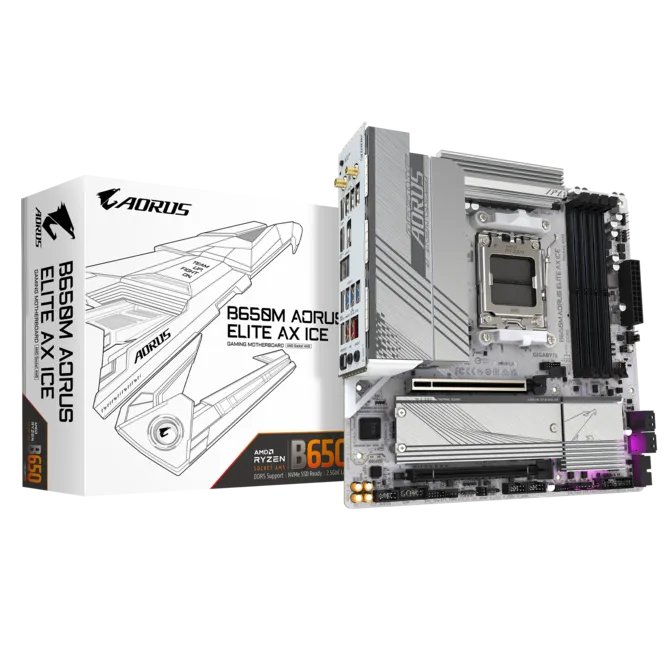

GIGABYTE B650M AORUS ELITE AX ICE

AMD AM5 Micro-ATX Motherboard

🔑

Key Highlights

• AMD B650 Chipset — Compatible with AMD Ryzen 7000 / Ryzen™ 8000 Series processors (AM5 Socket)
• DDR5 Memory Support — 4 DIMM slots, up to 192GB, up to 8000MHz (OC)
• PCIe 5.0 x16 slot for next-gen GPU support
• 2x M.2 slots (PCIe 5.0 x4 + PCIe 4.0 x4) for ultra-fast NVMe storage
• Integrated WiFi 6E (802.11ax) + Bluetooth 5.3 for cutting-edge wireless connectivity
• 2.5GbE Realtek LAN for high-speed wired networking

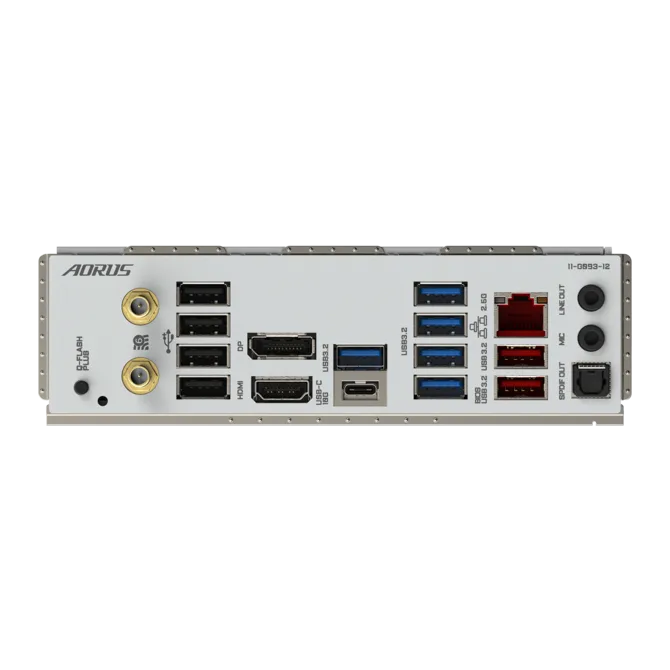

• Rear I/O: HDMI 2.1, USB 3.2 Gen 2 Type-C, USB 3.2 Gen 2, USB 3.2 Gen 1, USB 2.0, Audio
• All-white ICE design — Micro-ATX form factor for mATX and mid-tower cases
• GIGABYTE UEFI DualBIOS with Q-Flash Plus for easy BIOS updates
• 16+2+2 Power Phase Design for stable and efficient CPU power delivery

📋 Full Specifications

• CPU: AMD Ryzen 7000 / 8000 / 9000 Series (Socket AM5)
• Chipset: AMD B650
• Form Factor: Micro-ATX (24.4cm x 24.4cm)
• Memory: 4x DDR5 DIMM — Dual Channel — Up to 256GB (64GB per DIMM) — DDR5 8000(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s — AMD EXPO & XMP support
• Onboard Graphics: 1x HDMI 2.1 (up to 4096x2160@60Hz) | 1x DisplayPort 1.4 (up to 3840x2160@144Hz) — Requires Ryzen G-Series CPU
• Expansion Slots: 1x PCIe 4.0 x16 (CPU) | 1x PCIe 4.0 x4 (Chipset)
• Storage: 4x SATA 6Gb/s | 1x M.2 PCIe 5.0 x4 (CPU, up to 25110) | 1x M.2 PCIe 4.0 x4 (CPU, up to 25110)
• RAID: RAID 0, 1, 10 for NVMe and SATA
• USB (Rear): 1x USB 3.2 Gen 2 Type-C | 2x USB 3.2 Gen 2 Type-A (red) | 5x USB 3.2 Gen 1 | 4x USB 2.0
• USB (Internal): 1x USB 3.2 Gen 2x2 Type-C header | 1x USB 3.2 Gen 1 header | 2x USB 2.0 headers
• Wireless: WiFi 6E 802.11ax — 2.4/5/6GHz — 160MHz | Bluetooth 5.3 (Realtek RTL8852CE or Intel AX210)
• LAN: Realtek 2.5GbE (2.5 Gbps / 1 Gbps / 100 Mbps)
• Audio: Realtek HD Audio CODEC — 2/4/5.1/7.1 Channel | S/PDIF Optical Out
• Power: 24-pin ATX | 8-pin ATX 12V
• Fan Headers: 1x CPU Fan | 1x CPU Fan/Water Pump | 3x System Fan | 1x System Fan/Water Pump
• RGB Headers: 2x ARGB | 2x RGB | 1x CPU Cooler LED
• H/W Monitoring: Voltage / Temperature / Fan Speed / Water Cooling Flow Rate detection | Fan fail warning | Fan speed control
• BIOS: 256Mb Flash — AMI UEFI BIOS — Q-Flash Plus & Q-Flash
• Software: GIGABYTE Control Center (GCC) | Norton Internet Security | LAN Bandwidth Management
• OS: Windows 11 / Windows 10 64-bit

Weight listed is with the box and all accessories included.
