GIGABYTE B650M GAMING WIFI6E
LE 6,000.00
Sale price
LE 6,000.00
Regular price

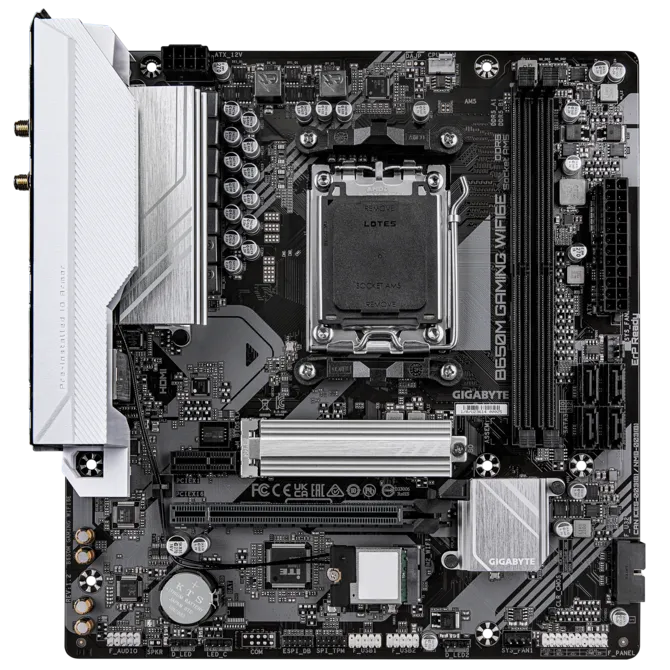

AMD AM5 Micro-ATX Motherboard
🔑 Key Highlights
- AMD Socket AM5: Supports AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
- Unparalleled Performance: 5+2+2 Phases Digital VRM Solution
- Dual Channel DDR5: 2x SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage: PCIe 4.0 x4 M.2 Connector
- EZ-Latch: PCIe x16 Slot with Quick Release Design
- Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity: HDMI, D-Sub
- Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
📋 Specifications
- CPU: AMD Ryzen™ 7000 / 8000 / 9000 Series (Socket AM5)
- Chipset: AMD B650
- Form Factor: Micro-ATX (24.0cm x 22.5cm)
- Memory: 2x DDR5 DIMM — Dual Channel — Up to 128GB (64GB per DIMM) — DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s — AMD EXPO™ & XMP support
- Onboard Graphics: 1x HDMI 2.1 (up to 4096x2160@60Hz) | 1x D-Sub (up to 1920x1200@60Hz) — Requires Ryzen G-Series CPU
- Expansion Slots: 1x PCIe 4.0 x16 (CPU) | 1x PCIe 3.0 x1 (Chipset)
- Storage: 4x SATA 6Gb/s | 1x M.2 PCIe 4.0 x4 (CPU, type 2580/2280)
- RAID: RAID 0, 1, 10 for NVMe and SATA

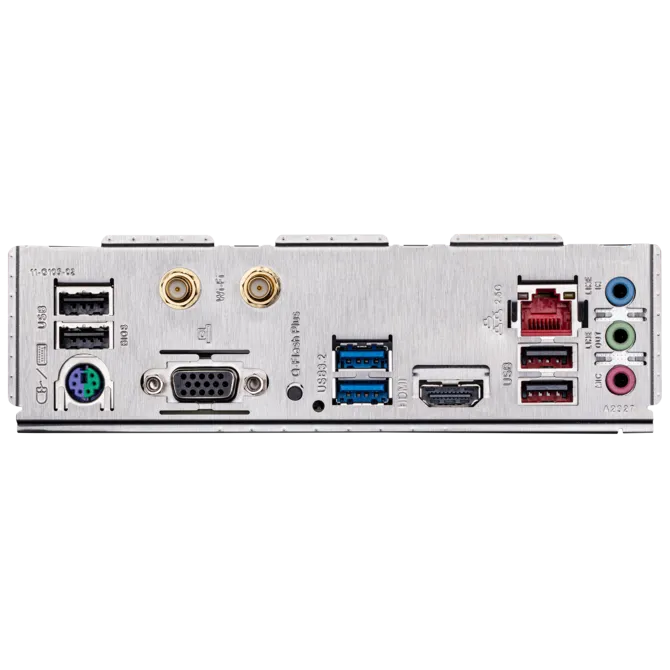

- USB (Rear): 2x USB 3.2 Gen 1 (CPU) | 3x USB 2.0 (Chipset) | 1x USB 2.0 (CPU)
- USB (Internal): 1x USB 3.2 Gen 1 header | 2x USB 2.0 headers
- Wireless: WiFi 6E 802.11ax — 2.4/5/6GHz — 160MHz | Bluetooth 5.3 — Realtek RTL8852CE
- LAN: Realtek 2.5GbE (2.5 Gbps / 1 Gbps / 100 Mbps)
- Audio: Realtek HD Audio CODEC — 2/4/5.1/7.1 Channel
- Power: 24-pin ATX | 8-pin ATX 12V
- Fan Headers: 1x CPU Fan | 2x System Fan
- RGB Headers: 2x ARGB | 1x RGB
- H/W Monitoring: Voltage / Temperature / Fan Speed / Water Cooling Flow Rate detection | Fan fail warning | Fan speed control
- BIOS: 256Mb Flash — AMI UEFI BIOS — Q-Flash Plus & Q-Flash
- Software: GIGABYTE Control Center (GCC) | Norton Internet Security | LAN Bandwidth Management
- OS: Windows 11 / Windows 10 64-bit
Weight listed is with the box and all accessories included.
Specifications
| GIGABYTE | |
| GAMING | |
| B650M GAMING WIFI6E | |
| AM5 (LGA1718) | |
| HDMI 2.1 (4K@60Hz) + D-Sub (1920x1200@60Hz) — Ryzen G-Series only | |
| Micro-ATX (24.0 x 22.5cm) | |
| PCIe 4.0 x16 (CPU) | PCIe 3.0 x1 (Chipset) | |
| DDR5 — Up to 128GB — 2 Slots — Dual Channel — DDR5 6400(OC)/6000(OC)/5200/4800 MT/s — AMD EXPO & XMP | |
| Dual Channel |
