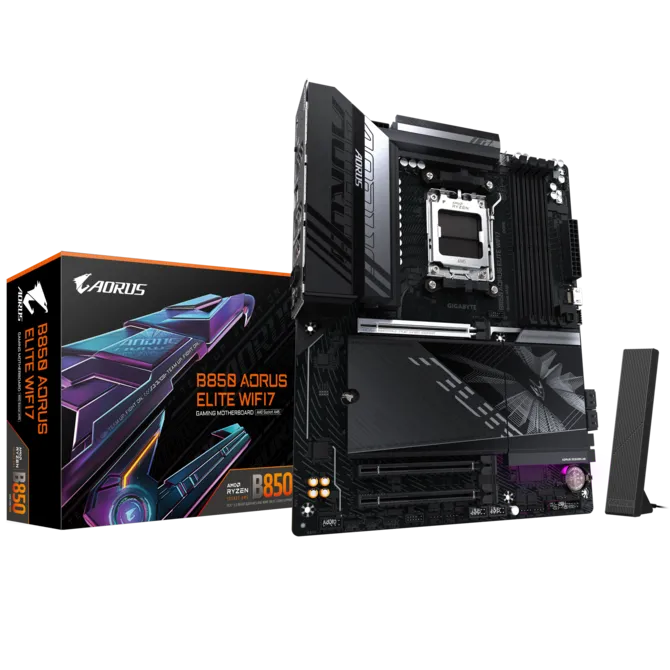

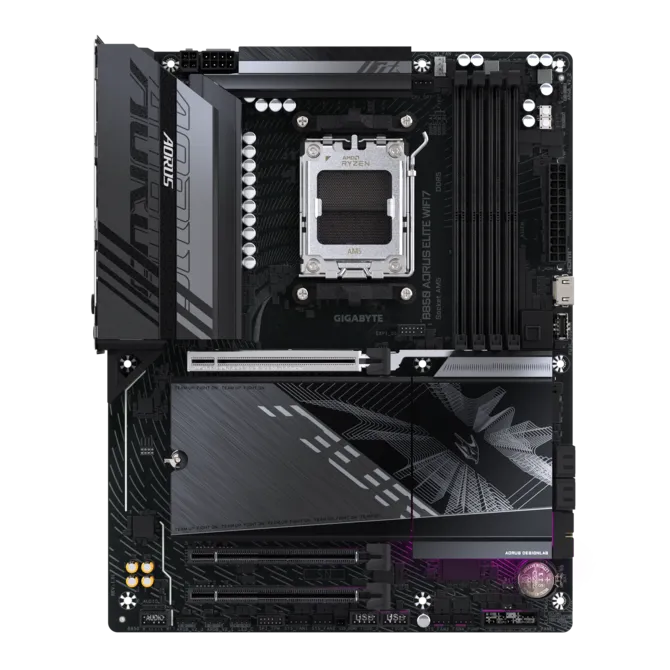

GIGABYTE B850 AORUS ELITE WIFI7

AMD AM5 ATX Motherboard

🔑 Key Highlights

• AMD Socket AM5: Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
• Next-Gen Connectivity: Wi-Fi 7 (802.11be, 2.4/5/6GHz, 160MHz) + Bluetooth 5.4
• Dual Channel DDR5: 4x DIMMs — Up to 256GB — DDR5 8200(OC) MT/s — AMD EXPO™ & XMP
• PCIe 5.0 x16 Slot for next-gen GPU (Ryzen 9000/7000)
• Triple M.2 Slots: PCIe 5.0 x4 (CPU) + PCIe 4.0 x4 (CPU) + PCIe 4.0 x4 (Chipset)
• Fast Networking: Realtek 2.5GbE LAN
• Extended Connectivity: DisplayPort 1.4 (4K@144Hz) + Front HDMI 1.4
• USB 3.2 Gen 2x2 Type-C Internal Header
• RAID 5 Support for NVMe (Ryzen 9000 only)
• S/PDIF Optical Out + Realtek ALC1220 HD Audio (rev. 1.1)
• Q-Flash Plus: Update BIOS Without Installing CPU, Memory or GPU
• ATX Form Factor — 30.5cm x 24.4cm

📋 Specifications

• CPU: AMD Ryzen™ 9000 / 8000 / 7000 Series (Socket AM5)
• Chipset: AMD B850
• Form Factor: ATX (30.5cm x 24.4cm)
• Memory: 4x DDR5 DIMM — Dual Channel — Up to 256GB (64GB per DIMM) — DDR5 8200(OC)/8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s — AMD EXPO™ & XMP support
• Onboard Graphics: 1x DisplayPort 1.4 (up to 3840x2160@144Hz) | 1x Front HDMI 1.4 (up to 1920x1080@30Hz) — Requires Ryzen G-Series CPU
• Expansion Slots: 1x PCIe 5.0 x16 (CPU) | 2x PCIe 3.0 x1 (Chipset)
• Storage: 4x SATA 6Gb/s | 1x M.2 PCIe 5.0 x4 (CPU, up to 25110) | 1x M.2 PCIe 4.0 x4 (CPU, up to 25110) | 1x M.2 PCIe 4.0 x4 (Chipset, up to 25110)
• RAID: RAID 0/1/5/10 for NVMe (RAID 5 requires Ryzen 9000) | RAID 0/1/10 for SATA

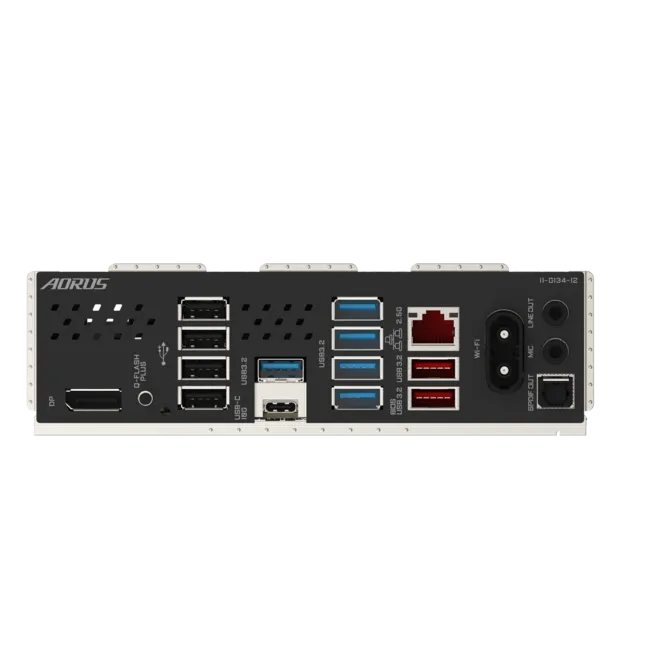

• USB (Rear): 1x USB 3.2 Gen 2 Type-C (CPU) | 2x USB 3.2 Gen 2 Type-A red (CPU) | 5x USB 3.2 Gen 1 | 4x USB 2.0
• USB (Internal): 1x USB 3.2 Gen 2x2 Type-C header | 1x USB 3.2 Gen 1 header | 2x USB 2.0 headers
• Wireless: Wi-Fi 7 802.11be — 2.4/5/6GHz — 160MHz | Bluetooth 5.4 — Realtek RTL8922AE
• LAN: Realtek 2.5GbE (2.5 Gbps / 1 Gbps / 100 Mbps)
• Audio: Realtek ALC1220 HD Audio (rev. 1.1) / Realtek HD Audio (rev. 1.0) — 2/4/5.1/7.1 Channel | S/PDIF Optical Out
• Power: 24-pin ATX | 8-pin ATX 12V | 4-pin ATX 12V
• Fan Headers: 1x CPU Fan | 1x CPU Fan/Water Pump | 3x System Fan | 1x System Fan/Water Pump
• RGB Headers: 3x ARGB Gen2 | 1x RGB
• H/W Monitoring: Voltage / Temperature / Fan Speed / Water Cooling Flow Rate detection | Fan fail warning | Fan speed control
• BIOS: 256Mb Flash — AMI UEFI BIOS — Q-Flash Plus & Q-Flash
• Software: GIGABYTE Control Center (GCC) | Smart Backup | Norton Internet Security | LAN Bandwidth Management
• OS: Windows 11 64-bit only

Weight listed is with the box and all accessories included.
