AMD AM5 ATX Motherboard

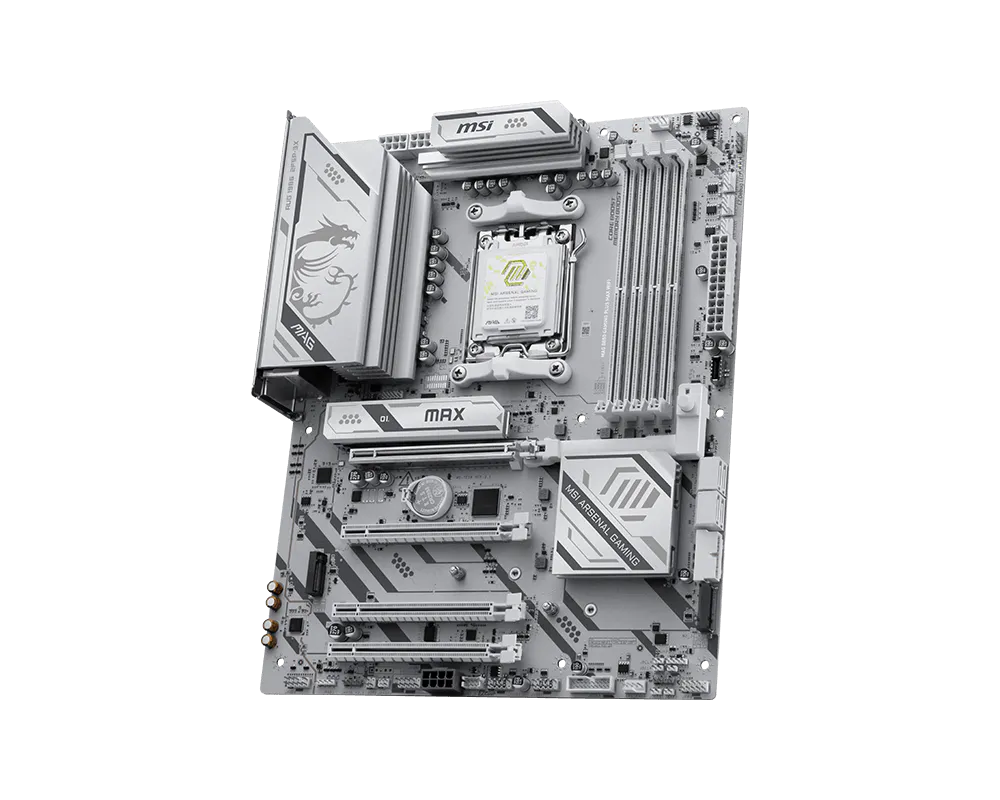

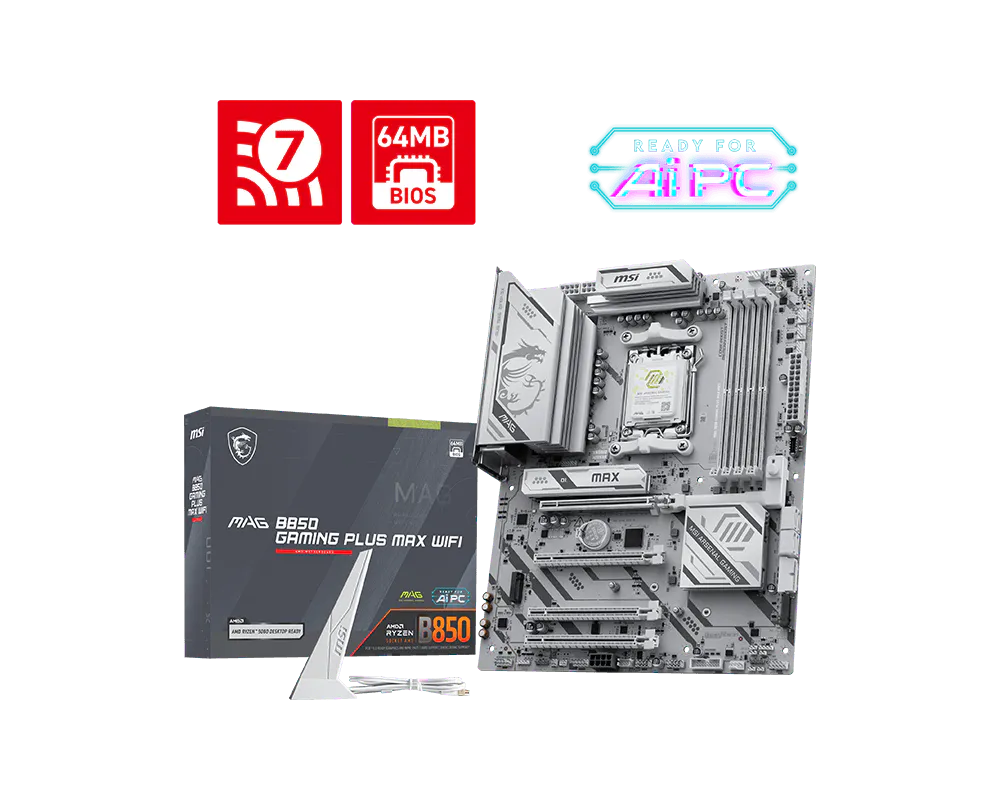

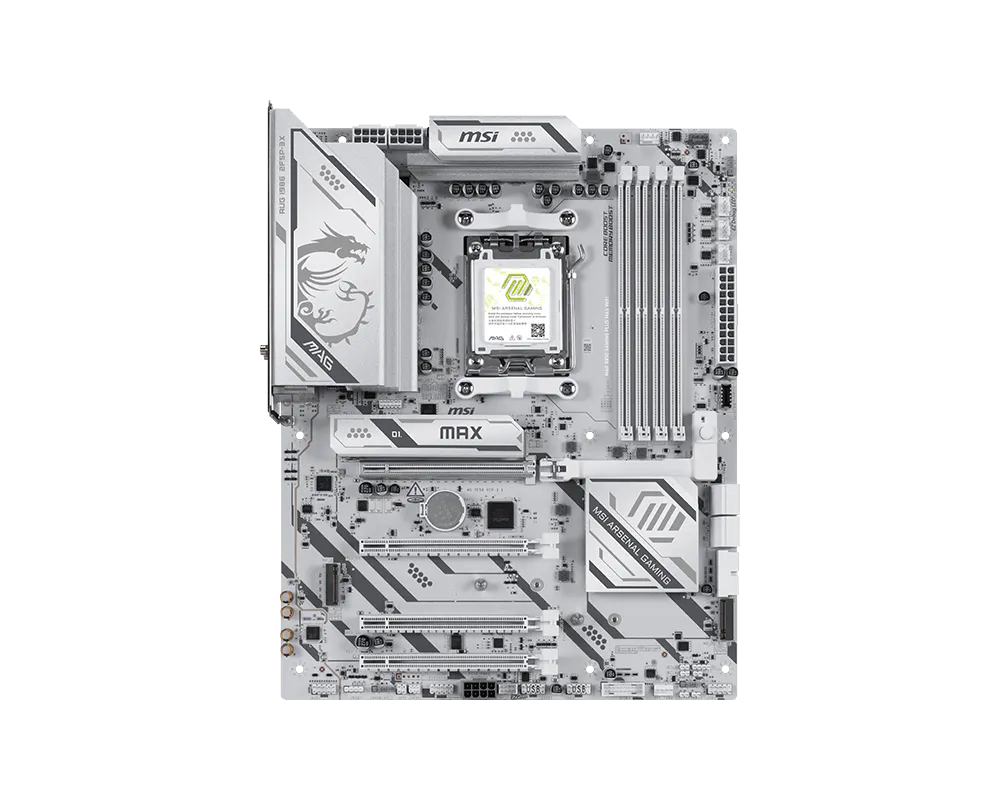

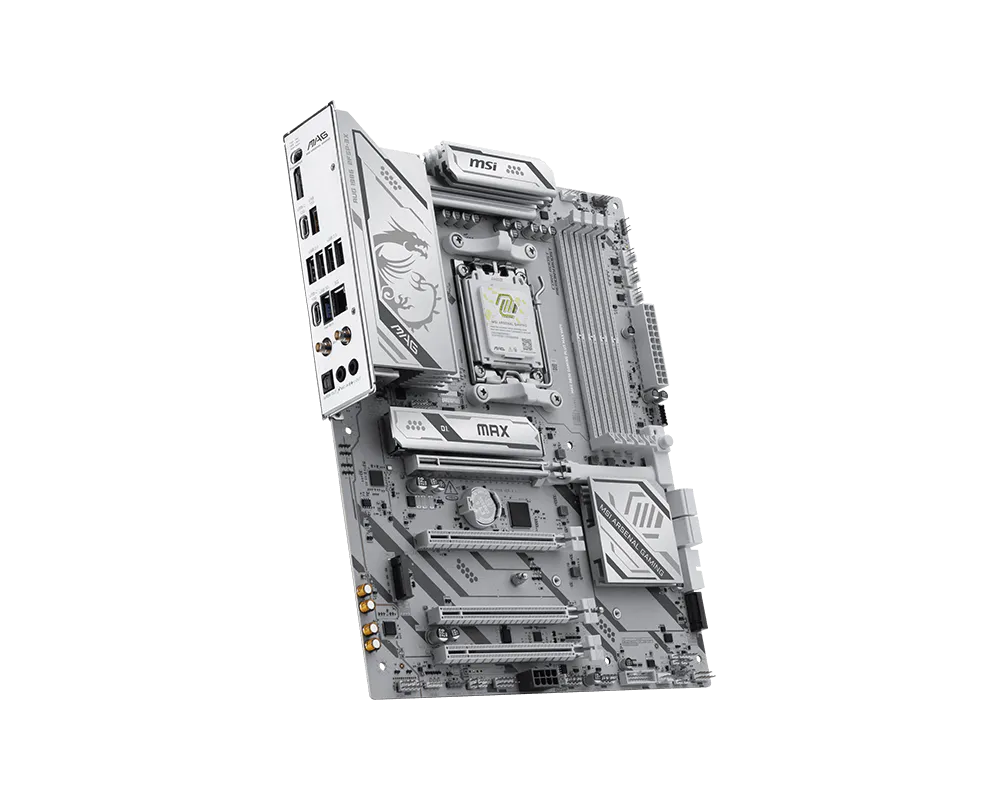

The MSI MAG B850 GAMING PLUS MAX WIFI is a feature-packed ATX motherboard built for AMD Ryzen™ 9000 / 8000 / 7000 Series processors on the AM5 platform. It features a robust 12+2+1 Duet Rail Power System with dual 8-pin CPU connectors, PCIe 5.0 x16 slot, Lightning Gen 5 x4 M.2, Wi-Fi 7, 5G LAN, and MSI's Frozr Guard thermal solution for sustained high-performance operation.
🔑 Key Highlights
- Ultra Performance VRM: 12+2+1 Duet Rail Power System, dual 8-pin CPU connectors, Core Boost & Memory Boost, 6-layer PCB with 2oz thickened copper
- Frozr Guard Cooling: Extended heatsink with 7W/mK MOSFET thermal pads, choke thermal pads, and EZ M.2 Shield Frozr II
- PCIe 5.0 & Gen 5 M.2: PCIe 5.0 x16 GPU slot and Lightning Gen 5 x4 M.2 for maximum storage performance
- Wi-Fi 7 & 5G LAN: Realtek 8126 5G LAN + Wi-Fi 7 (802.11be) with Bluetooth 5.4, MU-MIMO, 2.9Gbps
- DDR5 OC Support: 4x DDR5 slots up to 256GB, supporting up to 8200+ MT/s OC
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release, EZ Antenna
- Power Phases: 12+2+1 Duet Rail Digital VRM Design
📋 Specifications
- Brand: MSI
- Model: MAG B850 GAMING PLUS MAX WIFI
- Chipset: AMD B850
- Socket: AM5
- Form Factor: ATX (243.84 × 304.8 mm)
- CPU Support: AMD Ryzen™ 9000 / 8000 / 7000 Series
- Memory Slots: 4x DDR5 UDIMM, Max 256GB
- Memory Speed: DDR5 4800–8200+ MT/s (OC)
- Memory Channels: Dual Channel
- PCIe Slots: 1x PCIe 5.0 x16 | 1x PCIe 4.0 x4 | 2x PCIe 3.0 x1
- M.2 Slots: 3x M.2 (1x PCIe 5.0 x4, 1x PCIe 4.0 x4, 1x PCIe 4.0 x2)
- SATA Ports: 4x SATA 6G

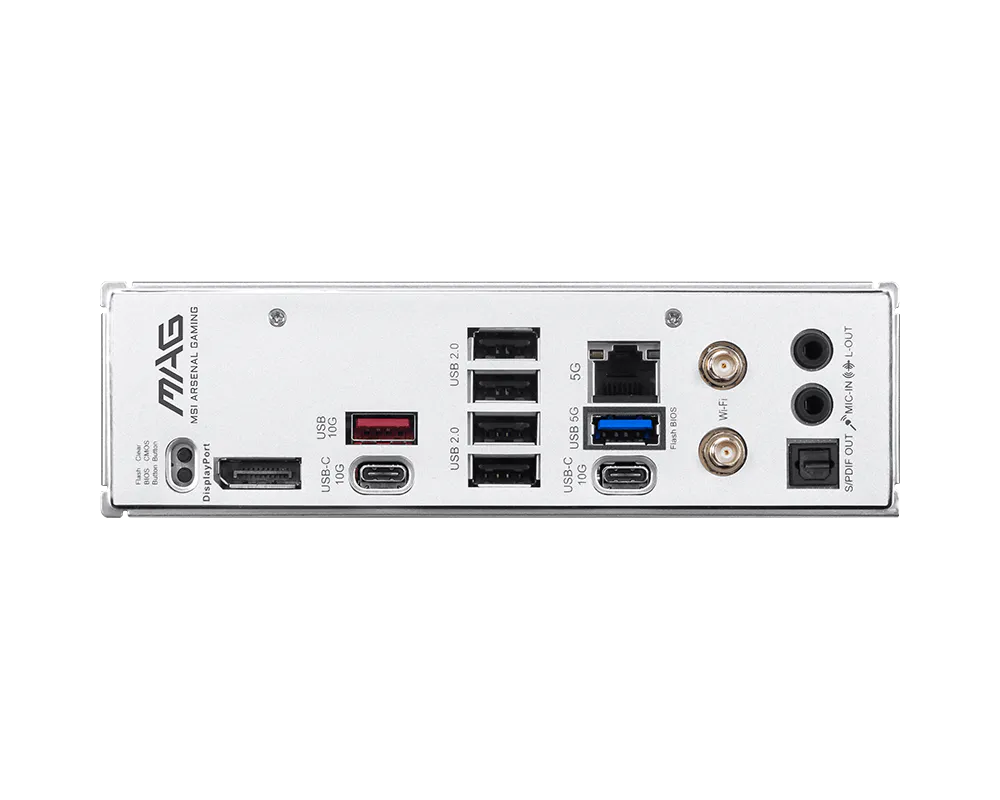

- USB (Rear): 4x USB 2.0 | 1x USB 5Gbps Type-A | 1x USB 10Gbps Type-A | 2x USB 10Gbps Type-C
- USB (Front): 4x USB 2.0 | 4x USB 5Gbps Type-A | 1x USB 10Gbps Type-C
- LAN: Realtek 8126 5G LAN
- Wireless: Wi-Fi 7 (802.11a/b/g/n/ac/ax/be), 2.4/5/6GHz, up to 2.9Gbps
- Bluetooth: 5.4
- Audio: Realtek ALC897, 7.1-Channel HD Audio
- Onboard Graphics: 1x DisplayPort 1.2 (iGPU only)
- RGB: 3x JARGB V2 | 1x JRGB
- RAID: RAID 0, 1 (SATA & NVMe)
- OS Support: Windows 11 64-bit
- VRM / Power Phases: 12+2+1 Duet Rail Digital VRM
Specifications
| MSI | |
| MAG Gaming Plus Max | |
| MAG B850 GAMING PLUS MAX WIFI | |
| AM5 | |
| AMD B850 | |
| AMD Ryzen™ 9000 / 8000 / 7000 Series | |
| 4x DDR5 UDIMM, Max 256GB | |
| DDR5 4800–8200+ MT/s (OC) | |
| Dual Channel | |
| PCIe 5.0 x16 | PCIe 4.0 x4 | 2x PCIe 3.0 x1 | |
| 3x M.2 (PCIe 5.0 x4 + PCIe 4.0 x4 + PCIe 4.0 x2) | |
| ATX | |
| DDR5 | |
| 2 | |
| PCIe 5.0 |
