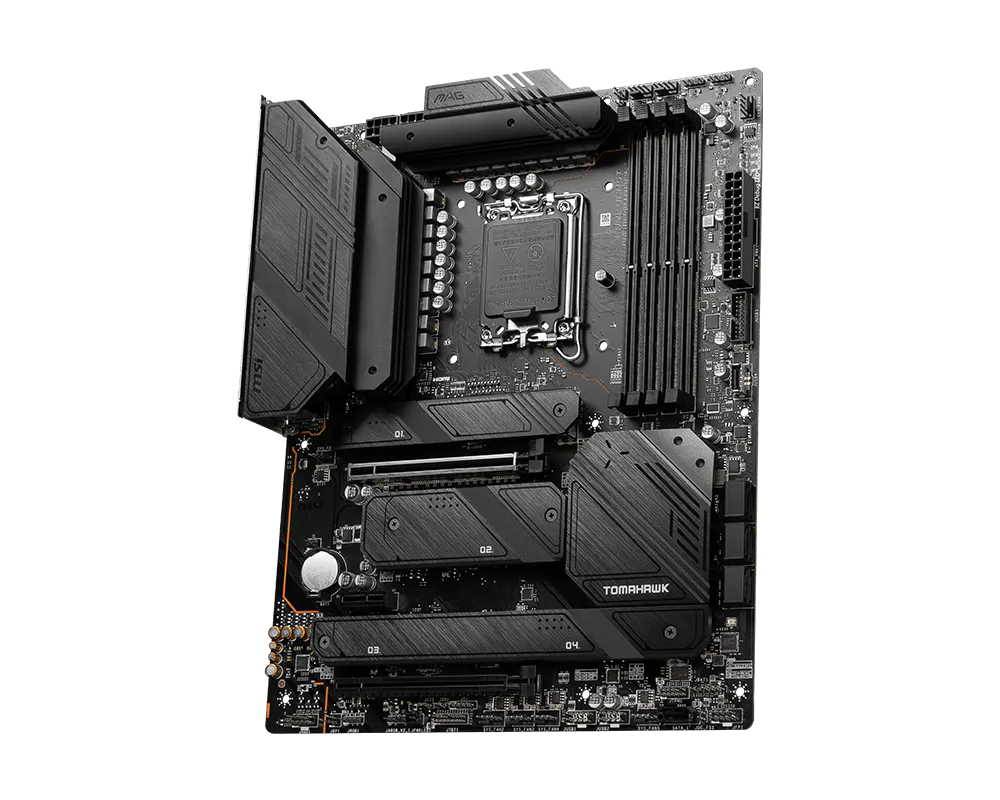

MSI MAG Z790 TOMAHAWK WIFI
LE 16,500.00
Return within 14 days provided the item is in its original condition
Intel Z790 ATX DDR5 Motherboard
Build an Intel desktop with support for 14th, 13th and 12th Gen Core processors. This Z790 ATX platform combines DDR5 memory, PCIe 5.0 graphics connectivity, four M.2 slots, Intel 2.5Gbps LAN and Wi-Fi 6E.
🔑 Key Highlights
- Processor Support: Intel Core 14th/13th/12th Gen, Pentium Gold and Celeron processors.
- DDR5 Memory: Four slots, up to 256GB, Intel XMP 3.0 and speeds up to 7200+MHz (OC), depending on configuration.
- Expansion and Storage: PCIe 5.0 x16, four M.2 slots and seven SATA 6Gb/s ports.
- Networking: Intel 2.5Gbps LAN, Wi-Fi 6E and Bluetooth 5.3.
- Audio: Realtek ALC4080, optical S/PDIF and front-panel playback up to 32-bit/384kHz.
- Power Phases / VRM: Not specified in the supplied data.
📋 Specifications
- Chipset: Intel Z790.
- CPU Support: Intel Core 14th, 13th and 12th Gen; Intel Pentium Gold and Celeron processors.
- Memory: 4 DDR5 slots, maximum 256GB; Intel XMP 3.0 OC; Dual-Controller Dual-Channel mode; non-ECC, unbuffered.
- Supported Memory Speeds: 7200+, 7000, 6800, 6600, 6400, 6200, 6000 and 5800MHz (OC); 5600, 5400, 5200, 5000 and 4800MHz (JEDEC).
- Maximum Memory Overclocking: 1DPC 1R: 7200+MHz; 1DPC 2R: 6600+MHz; 2DPC 1R: 6400+MHz; 2DPC 2R: 5600+MHz.
- Display Outputs: 1 HDMI 2.1 with HDR, up to 4K 60Hz; 1 DisplayPort 1.4, up to 8K 60Hz. Available only with processors featuring integrated graphics; specifications depend on the installed CPU.
- Expansion Slots: 2 physical PCIe x16 slots supporting x16/x4, plus 1 PCIe x1 slot. PCI_E1: CPU-connected PCIe 5.0 x16; PCI_E2: chipset-connected PCIe 3.0 x1; PCI_E3: chipset-connected PCIe 4.0 x4.
- Audio: Realtek ALC4080 codec; 7.1-channel USB High Performance Audio; S/PDIF output; front-panel playback up to 32-bit/384kHz.
- M.2 Storage: 4 slots. M.2_1: CPU-connected PCIe 4.0 x4, 22110/2280/2260. M.2_2: chipset-connected PCIe 4.0 x4, 2280/2260. M.2_3: chipset-connected PCIe 4.0 x4 or SATA, 2280/2260/2242. M.2_4: chipset-connected PCIe 4.0 x4, 2280/2260/2242.
- SATA: 7 SATA 6Gb/s ports.
- RAID: SATA and M.2 NVMe support RAID 0/1/5/10. SATA_A1 and SATA_A2 do not support RAID.
- Rear USB: 4 USB 5Gbps Type-A; 4 USB 10Gbps Type-A; 1 USB 10Gbps Type-C; 1 USB 20Gbps Type-C.
- Front USB Support: 4 USB 2.0; 2 USB 5Gbps Type-A; 1 USB 10Gbps Type-C.
- LAN: Intel 2.5Gbps LAN.
- Wireless: Intel Wi-Fi 6E, pre-installed in M.2 Key-E; MU-MIMO TX/RX; 2.4/5/6GHz, 160MHz, up to 2.4Gbps; IEEE 802.11 a/b/g/n/ac/ax. 6GHz availability depends on local regulations and Windows 11.
- Bluetooth: Bluetooth 5.3, FIPS and FISMA support. Bluetooth 5.3 requires Windows 10 build 21H1 or Windows 11.
- Internal Connectors: 1 ATX power; 2 CPU power; 1 CPU fan; 1 pump fan; 6 system fan; 2 front panel; 1 chassis intrusion; 1 front audio; 1 JDASH tuning controller; 3 addressable V2 RGB; 1 RGB; 1 TPM header supporting TPM 2.0. Front USB connectivity as listed above.
- Diagnostics: 4 EZ Debug LEDs.

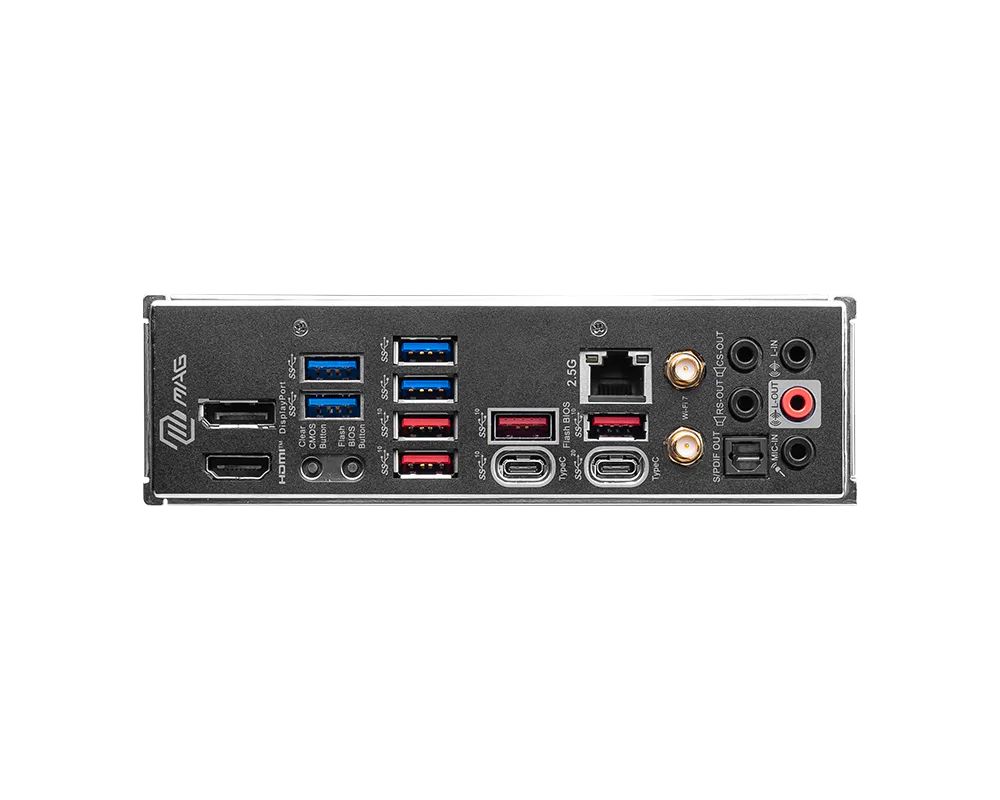

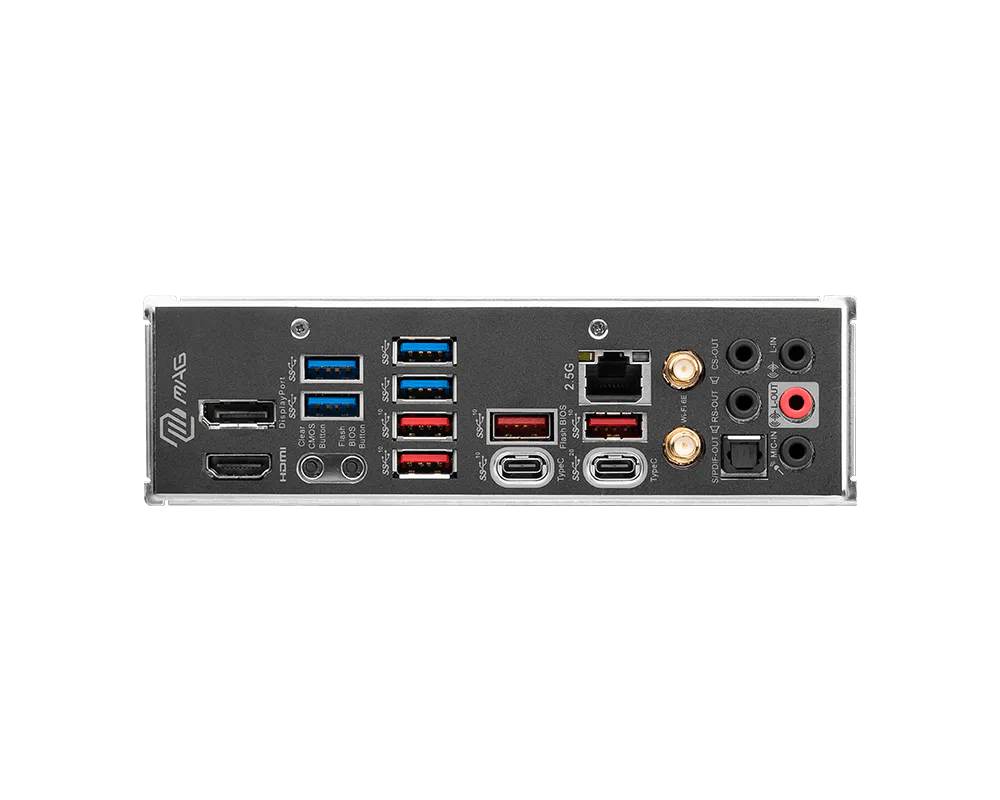

- Rear Panel: DisplayPort 1.4, HDMI 2.1, USB 5Gbps/10Gbps Type-A, USB 10Gbps/20Gbps Type-C, 2.5G LAN, HD audio connectors, optical S/PDIF, Wi-Fi/Bluetooth antenna connections, Clear CMOS button and Flash BIOS button.
- Power Phases / VRM: Not specified in the supplied data.
- Operating System: Windows 11 64-bit and Windows 10 64-bit.
- Form Factor: ATX.
- PCB Dimensions: 243.84 × 304.8mm.
Specifications
| MSI | |
| MAG Tomahawk Max | |
| MAG Z790 TOMAHAWK MAX WIFI | |
| LGA 1700 | |
| Intel Z790 | |
| Intel Core 14th / 13th / 12th Gen | |
| 4x DDR5 UDIMM, Max 256GB | |
| DDR5 4800–7800+ MHz (OC) | |
| Dual Channel | |
| PCIe 5.0 x16 | PCIe 4.0 x4 | PCIe 3.0 x1 | |
| 4x M.2 (PCIe 5.0 x4 + 3x PCIe 4.0 x4) | |
| ATX | |
| DDR5 | |
| 2 | |
| PCIe 5.0 |
