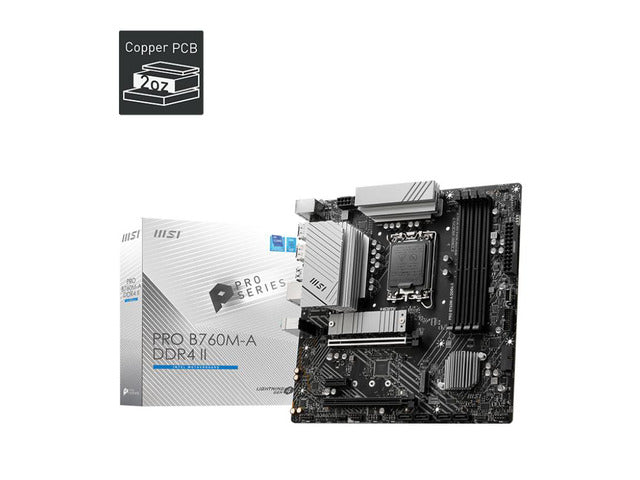

MSI PRO B760M-A DDR4 II
The MSI PRO B760M-A DDR4 II is a Micro-ATX B760 board on DDR4 for 12th to 14th Gen Intel Core processors. It offers two PCIe 4.0 M.2 slots, four SATA ports, 2.5G LAN and four video outputs, a solid base for DDR4 builds.
Specifications
- Brand: MSI
- Model: PRO B760M-A DDR4 II
- Socket: LGA 1700
- Chipset: Intel B760
- Form Factor: Micro-ATX
- CPU Support: Intel Core 12th, 13th and 14th Gen
- Memory: 4x DDR4 DIMM, up to 128GB, DDR4-5333 (OC)
- PCIe Slots: 1x PCIe 4.0 x16, 1x PCIe 4.0 x4, 1x PCIe 3.0 x1
- M.2: 2x M.2 PCIe 4.0 x4
- SATA: 4x SATA 6Gb/s
- Rear USB: 2x USB 10Gbps Type-A, 2x USB 5Gbps Type-A, 2x USB 2.0
- Display Outputs: 2x HDMI 2.1, 2x DisplayPort 1.4
- LAN: 2.5 Gbps
- Audio: Realtek ALC897, 7.1-channel
- Warranty: 3 Years
Specifications
| Brand | MSI |
| Model | PRO B760M-A DDR4 II |
| Socket | LGA 1700 |
| Chipset | Intel B760 |
| Form Factor | Micro-ATX |
| CPU Support | Intel Core 12th, 13th and 14th Gen |
| Memory | 4x DDR4 DIMM, up to 128GB, DDR4-5333 (OC) |
| PCIe Slots | 1x PCIe 4.0 x16, 1x PCIe 4.0 x4, 1x PCIe 3.0 x1 |
| M.2 | 2x M.2 PCIe 4.0 x4 |
| SATA | 4x SATA 6Gb/s |
| Rear USB | 2x USB 10Gbps Type-A, 2x USB 5Gbps Type-A, 2x USB 2.0 |
| Display Outputs | 2x HDMI 2.1, 2x DisplayPort 1.4 |
| LAN | 2.5 Gbps |
| Audio | Realtek ALC897, 7.1-channel |
| Warranty | 3 Years |
