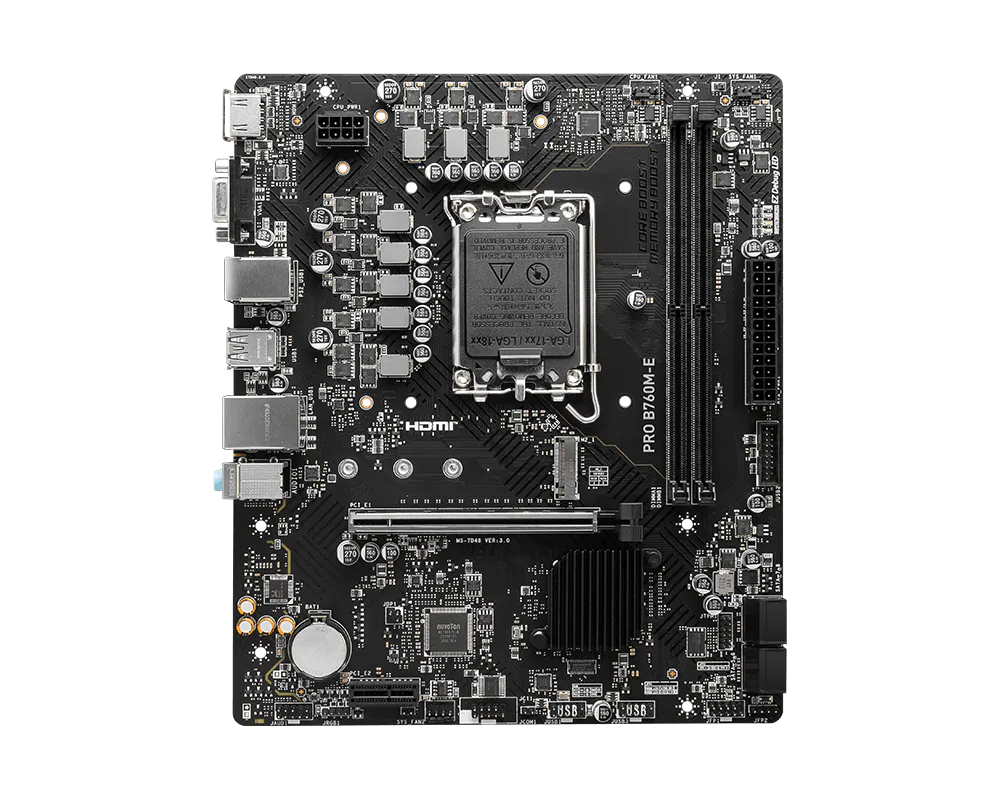

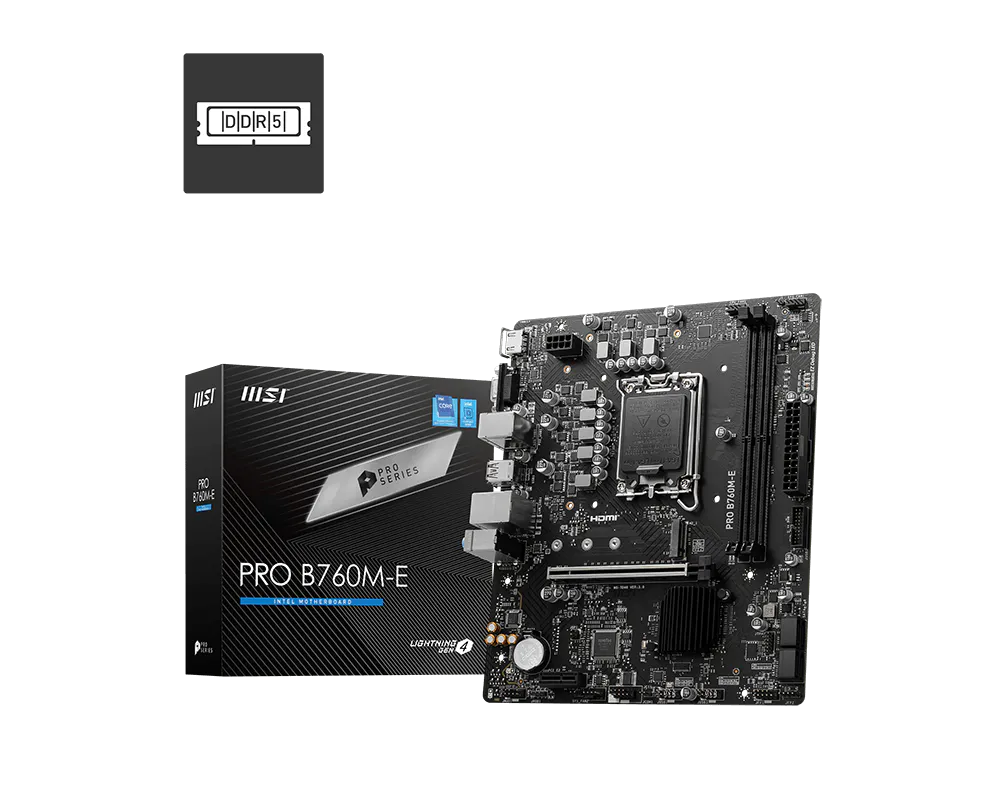

MSI PRO B760M-E

Intel LGA1700 Micro-ATX Motherboard

🔑 Key Highlights

• Processor Support: Supports Intel® Core™ 14th / 13th / 12th Gen, Pentium® Gold and Celeron® (LGA1700)
• Chipset: Intel® B760
• Dual Channel DDR5: 2x DIMM slots, up to 128GB, XMP 3.0, up to DDR5-6400+ (O.C.)
• PCIe 4.0 x16: CPU PCIe 4.0 x16 slot for GPU
• M.2 Storage: 1x M.2 PCIe 4.0 x4 / SATA (Chipset, type 2280/2260/2242)
• Abundant Storage: 4x SATA 6Gb/s + RAID 0/1/5/10
• Display Output: HDMI™ 1.4 (4K@30Hz, HDR) + VGA
• LAN: Realtek® RTL8111H 1GbE LAN
• Audio: Realtek® ALC897, 7.1-Channel HD Audio
• EZ Debug LED: 4x EZ Debug LEDs for easy troubleshooting
• RGB: 1x 4-pin RGB LED connector
• Power Phases: Efficient VRM Design

📋 Specifications

• Socket: Intel LGA1700 — Support for 14th, 13th, 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
• Chipset: Intel® B760
• Form Factor: Micro-ATX (200mm x 236.16mm)
• Memory Slots: 2x DDR5 DIMM, Dual Channel, up to 128GB
• Memory Speed (JEDEC): DDR5 4800 / 5000 / 5200 / 5400 / 5600 MT/s
• Memory Speed (O.C.): DDR5 5800 / 6000 / 6200 / 6400+ MT/s (1DPC 1R max 6400+ / 1DPC 2R max 5600+ MT/s)
• Memory Support: Intel® XMP 3.0, Non-ECC Un-buffered, Dual-Controller Dual-Channel
• Onboard Graphics: 1x HDMI™ 1.4 (4K@30Hz, HDR), 1x VGA (up to 2048x1536@50Hz) — Requires CPU with integrated graphics
• Audio: Realtek® ALC897, 7.1-Channel HD Audio
• LAN: Realtek® RTL8111H 1GbE
• Wireless: None
• PCIe Slots: 1x PCIe 4.0 x16 (CPU), 1x PCIe 3.0 x1 (Chipset)
• Storage: 1x M.2 PCIe 4.0 x4 / SATA (M2_1, Chipset, type 2280/2260/2242) + 4x SATA 6Gb/s
• RAID: RAID 0/1/5/10 for SATA

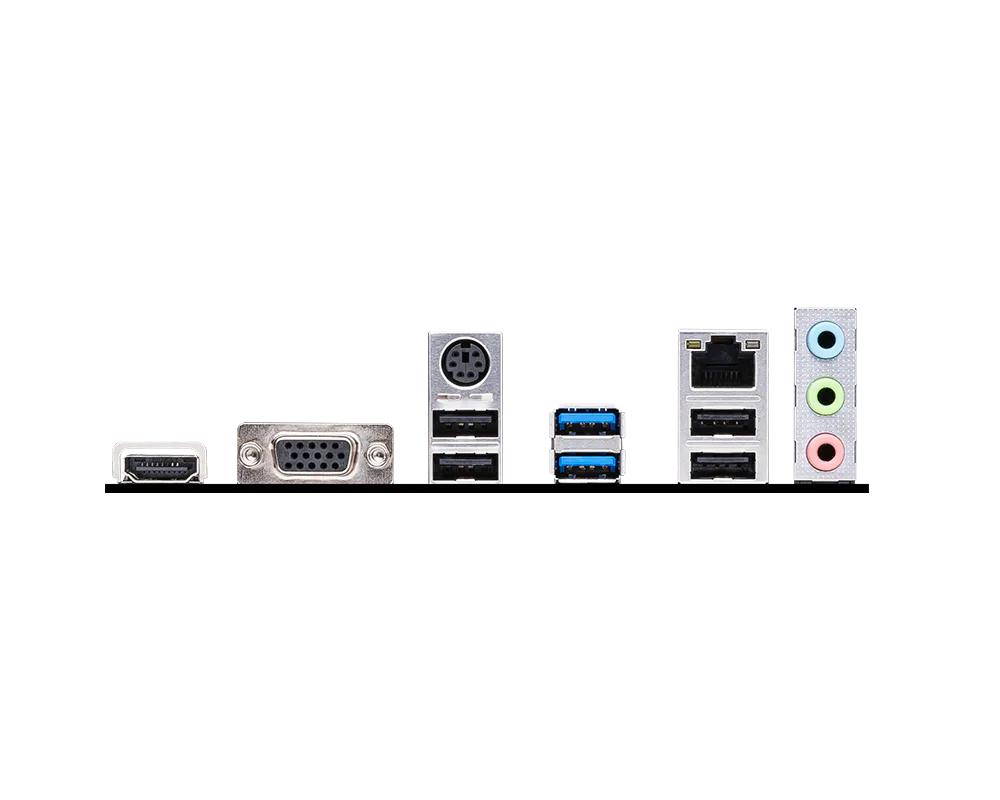

• USB Rear: 2x USB 5Gbps Type-A, 4x USB 2.0
• USB Internal: 2x USB 5Gbps Type-A header, 4x USB 2.0 header
• Fan Headers: 1x CPU (4-pin), 2x System (4-pin)
• LED: 1x 4-pin RGB LED connector, 4x EZ Debug LED
• Other Internal: 1x TPM header, 1x Serial port (JCOM), 1x Chassis Intrusion, 1x Clear CMOS jumper
• BIOS: UEFI AMI, MSI Center
• OS Support: Windows 11 / Windows 10 (64-bit)
• VRM / Power Phases: Efficient VRM Design
