MSI PRO B850M-G
LE 7,000.00
Skip to product information
MSI PRO B850M-G
LE 7,000.00
Return within 14 days provided the item is in its original condition

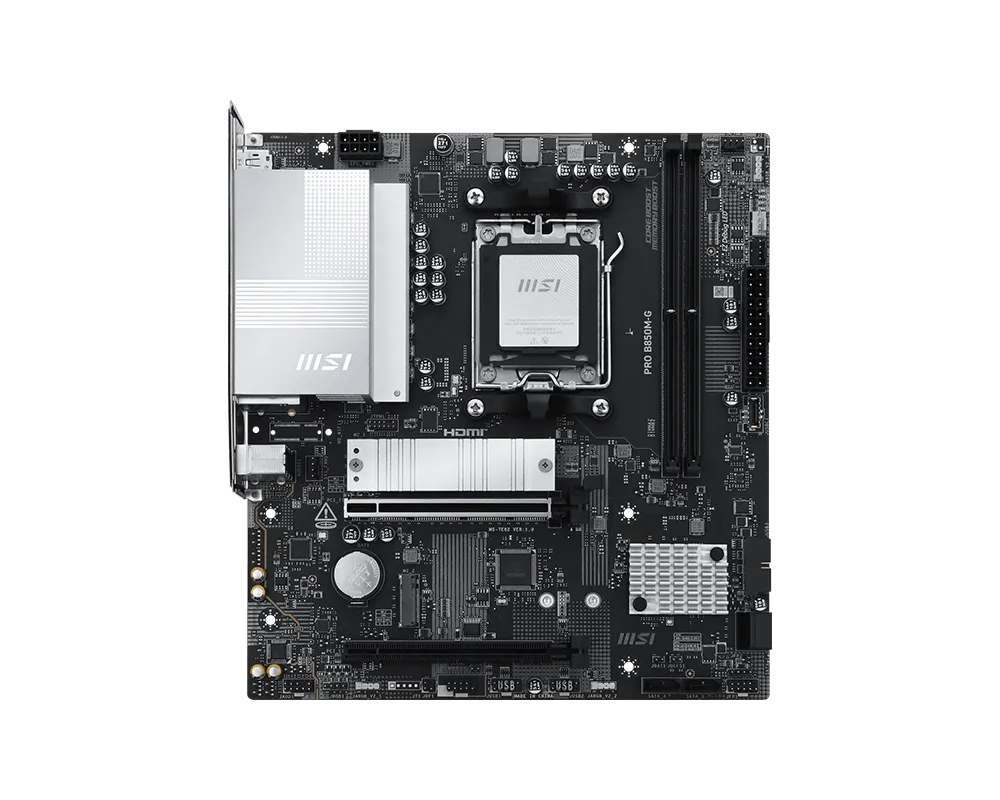

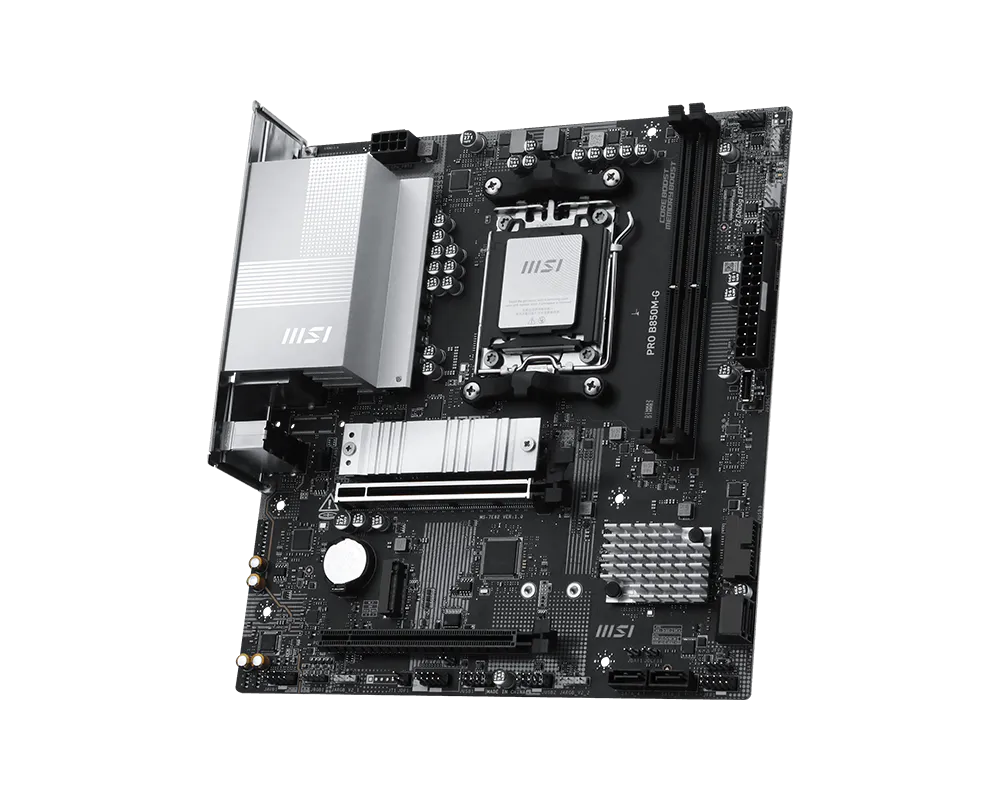

AMD AM5 Micro-ATX Motherboard
The MSI PRO B850M-G is a feature-packed Micro-ATX motherboard built on the AMD B850 chipset, supporting AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors on the AM5 socket. With PCIe 5.0, Lightning Gen 5 M.2, DDR5 memory up to 8200+ MT/s (OC), 5G LAN, and a robust 7+2+1 power phase design with P-PAK, it delivers professional-grade performance and reliability for demanding builds.
🔑 Key Highlights
- Ultra Performance: Direct 7+2+1 Power System with P-PAK and 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB with 2oz thickened copper and server-grade materials for maximum stability.
- Frozr Guard: Extended heatsink with MOSFET thermal pads rated at 7W/mK, additional choke thermal pads, and M.2 Shield Frozr for sustained high-performance operation.
- Lightning Fast Storage: PCIe 5.0 x16 slot and Lightning Gen 5 x4 M.2 for blazing-fast GPU and NVMe storage performance.
- 5G LAN: Realtek 8126VB 5G LAN for professional-grade, secure, and high-speed networking.
- EZ DIY: EZ M.2 Clip II and EZ PCIe Clip II for tool-free, hassle-free installation.
- Audio Boost: Realtek ALC897 7.1-Channel HD Audio for studio-grade immersive sound.
- VRM / Power Phases: 7+2+1 Digital Power Phase Design with P-PAK for efficient and stable power delivery to AMD Ryzen 9000/8000/7000 processors.
📋 Specifications
- Brand: MSI
- Model: PRO B850M-G
- Chipset: AMD B850
- CPU Support: AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors — Socket AM5
- Form Factor: Micro-ATX
- VRM / Power Phases: 7+2+1 Digital Power Phase Design with P-PAK
- Memory: 2x DDR5 UDIMM, Max 128GB
- Memory Speed: Up to 8200+ MT/s (OC) / 5600–4800 MT/s (JEDEC)
- Memory Channels: Dual Channel
- Memory Type: Non-ECC, Unbuffered, supports AMD EXPO & Overclocking, CUDIMM (Clock Driver bypass mode)
- PCIe Slots: 1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x4 (Chipset)
- Storage: 2x M.2 (M.2_1: PCIe 5.0 x4 from CPU; M.2_2: PCIe 4.0 x4 from CPU), 4x SATA 6Gbps
- RAID: RAID 0, 1, 10 (SATA); RAID 0, 1 (M.2 NVMe)
- Onboard Graphics: 1x HDMI 2.1 (4K@60Hz), 1x DisplayPort 1.4 (4K@60Hz) — requires CPU with integrated graphics
- Audio: Realtek ALC897, 7.1-Channel HD Audio
- LAN: Realtek 8126VB 5G LAN

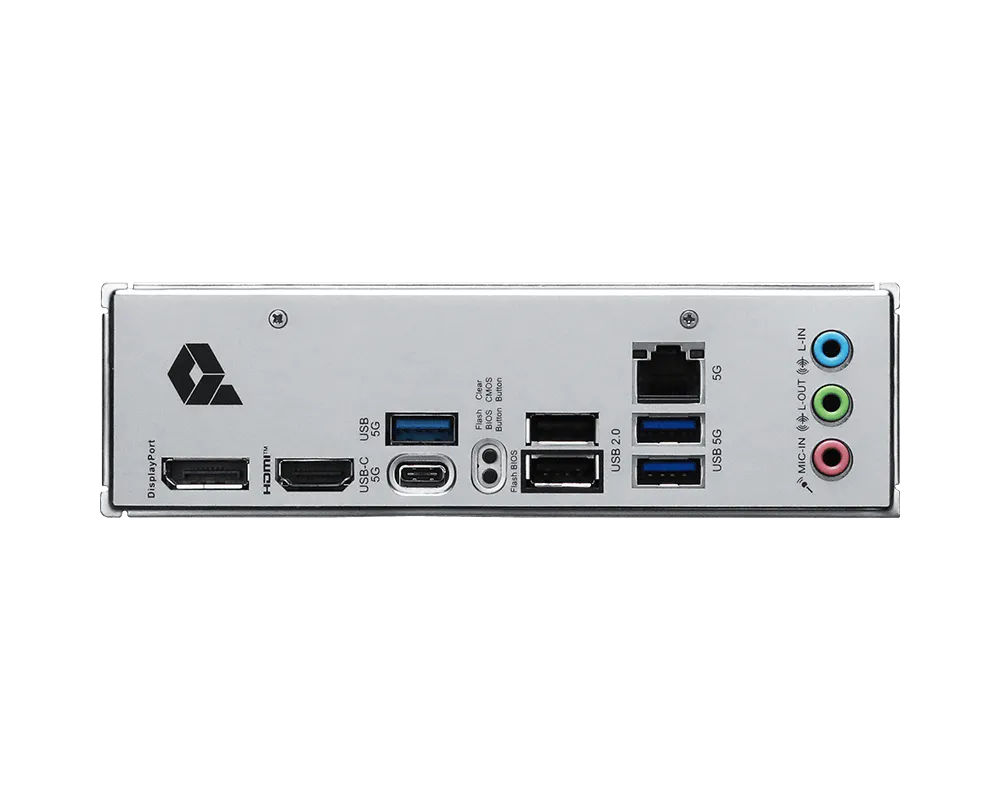

- USB (Rear): 2x USB 2.0, 3x USB 5Gbps Type-A, 1x USB 5Gbps Type-C
- USB (Front Headers): 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C
- RGB: 3x JARGB_V2 (Addressable V2), 1x JRGB (4-pin RGB)
- LED Features: 4x EZ Debug LED, 1x EZ Memory Detection LED
- OS Support: Windows 11 64-bit
Specifications
| Brand | MSI |
| Model | PRO |
| CPU Support | PRO B850M-G |
| Socket | AM5 — AMD Ryzen 9000 / 8000 / 7000 Series |
| Memory | 2x DDR5 UDIMM, Max 128GB |
| Memory Speed | Up to 8200+ MT/s (OC) / 5600–4800 MT/s (JEDEC) |
| Form Factor | Micro-ATX |
| PCIe | 1x PCIe 5.0 x16, 1x PCIe 4.0 x4 |
| Storage | 2x M.2 (PCIe 5.0 x4 + PCIe 4.0 x4), 4x SATA 6Gbps |
| Onboard Graphics | HDMI 2.1 (4K@60Hz), DP 1.4 (4K@60Hz) |
| Audio | Realtek ALC897, 7.1-Channel HD |
| LAN | Micro-ATX |
| USB (Rear) | PCIe 5.0 |
| Memory Channels | DDR5 — Dual Channel |
| RGB | Dual Channel |
