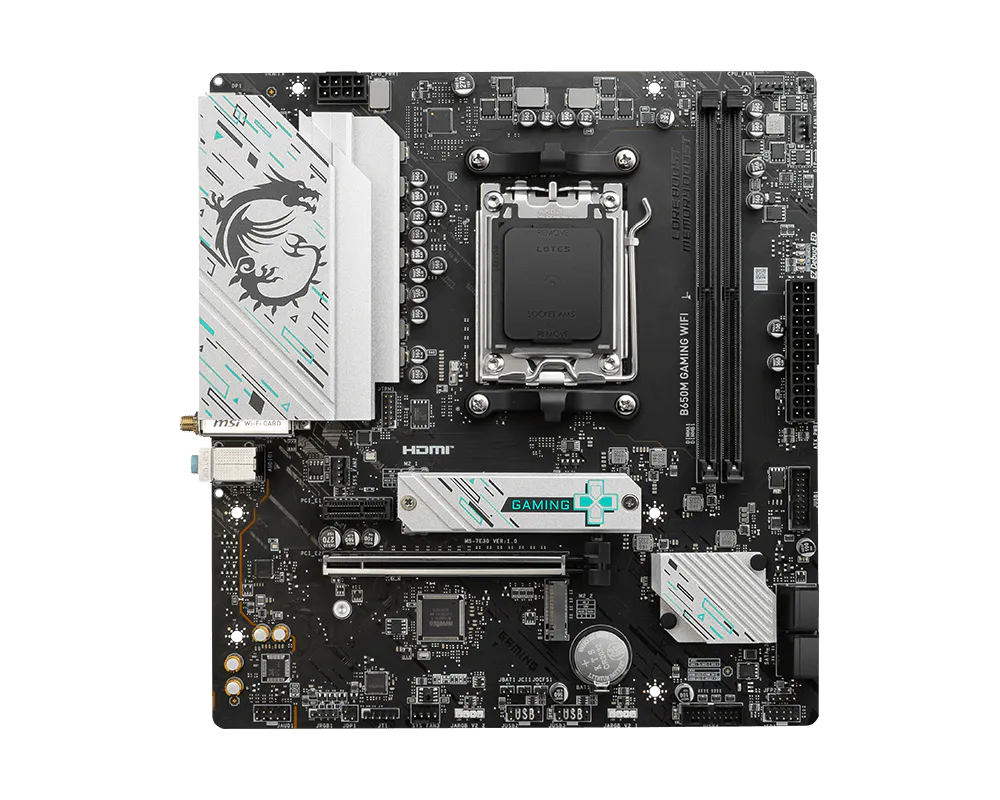

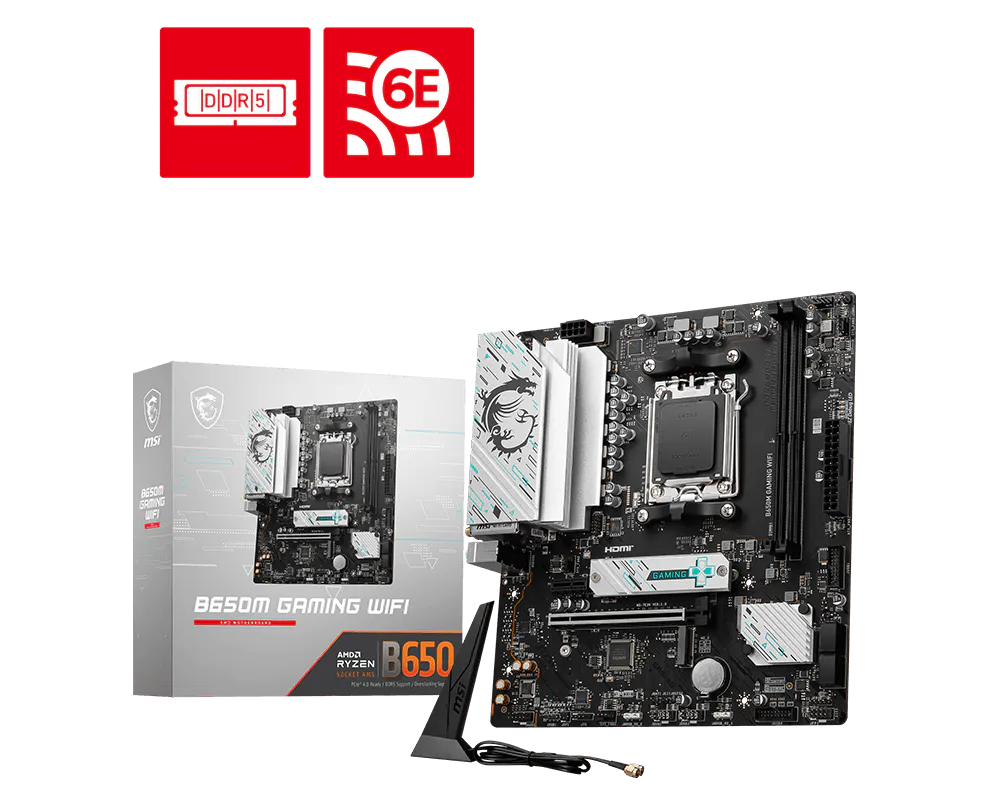

MSI B650M GAMING WIFI

AMD AM5 Micro-ATX Motherboard

🔑 Key Highlights

• Processor Support: Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors (AM5)
• Chipset: AMD B650
• Dual Channel DDR5: 2x DIMM slots, up to 128GB, AMD EXPO™, up to DDR5-7800+ (O.C.)
• PCIe 4.0 x16: CPU PCIe 4.0 x16 slot for GPU (Ryzen 9000/7000)
• Dual M.2 Storage: 2x M.2 PCIe 4.0 x4 (both from CPU) + 4x SATA 6Gb/s
• 2.5GbE LAN: Realtek® RTL8125BG 2.5GbE LAN
• Wi-Fi 6E: 2.4/5/6 GHz (160MHz) + Bluetooth 5.3
• Display Output: HDMI™ 2.1 (4K@60Hz) + DisplayPort 1.4 (4K@60Hz)
• RGB: 2x Addressable V2 RGB + 1x RGB LED connector
• EZ Debug LED: 4x EZ Debug LEDs for easy troubleshooting
• Flash BIOS Button: Update BIOS without CPU/Memory/GPU
• Power Phases: Efficient VRM Design

📋 Specifications

• Socket: AMD AM5 — Ryzen™ 9000 / 8000 / 7000 Series
• Chipset: AMD B650
• Form Factor: Micro-ATX (226mm x 243.84mm)
• Memory Slots: 2x DDR5 DIMM, Dual Channel, up to 128GB
• Memory Speed (JEDEC): DDR5 4800 MT/s
• Memory Speed (O.C.): DDR5 5000 / 5200 / 5400 / 5600 / 5800 / 6000 / 6200 / 6400 / 6600 / 6800 / 7000 / 7200 / 7400 / 7600 / 7800+ MT/s (1DPC 1R max 7800+ / 1DPC 2R max 6400+ MT/s)
• Memory Support: AMD EXPO™, Non-ECC Un-buffered, Dual Channel
• Onboard Graphics: 1x HDMI™ 2.1 (4K@60Hz), 1x DisplayPort 1.4 (4K@60Hz) — Requires CPU with integrated graphics
• Audio: Realtek® ALC897, 7.1-Channel HD Audio
• LAN: Realtek® RTL8125BG 2.5GbE
• Wireless: Wi-Fi 6E — 2.4/5/6 GHz, 802.11ax 160MHz, Bluetooth 5.3
• PCIe Slots: 1x PCIe 4.0 x16 (CPU), 1x PCIe 3.0 x1 (Chipset)
• Storage: 1x M.2 PCIe 4.0 x4 (M2_1, CPU, type 2280) + 1x M.2 PCIe 4.0 x4 (M2_2, CPU, type 2280) + 4x SATA 6Gb/s
• RAID: RAID 0/1/10 for SATA & M.2 NVMe

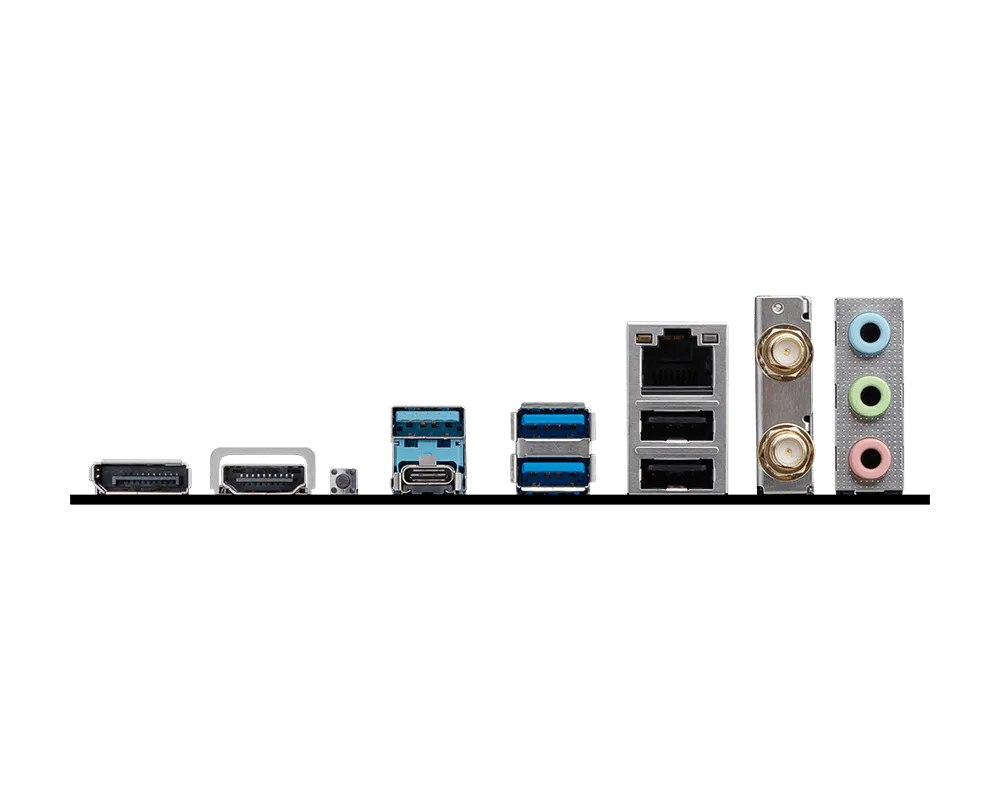

• USB Rear: 1x USB 5Gbps Type-C, 3x USB 5Gbps Type-A, 2x USB 2.0
• USB Internal: 4x USB 5Gbps Type-A header, 4x USB 2.0 header
• Fan Headers: 1x CPU, 3x System
• LED: 2x Addressable V2 RGB, 1x RGB LED connector, 4x EZ Debug LED
• Other Internal: 1x TPM header, 1x Chassis Intrusion, Flash BIOS Button
• BIOS: UEFI AMI, Flash BIOS Button, MSI Center
• OS Support: Windows 11 / Windows 10 (64-bit)
• VRM / Power Phases: Efficient VRM Design
