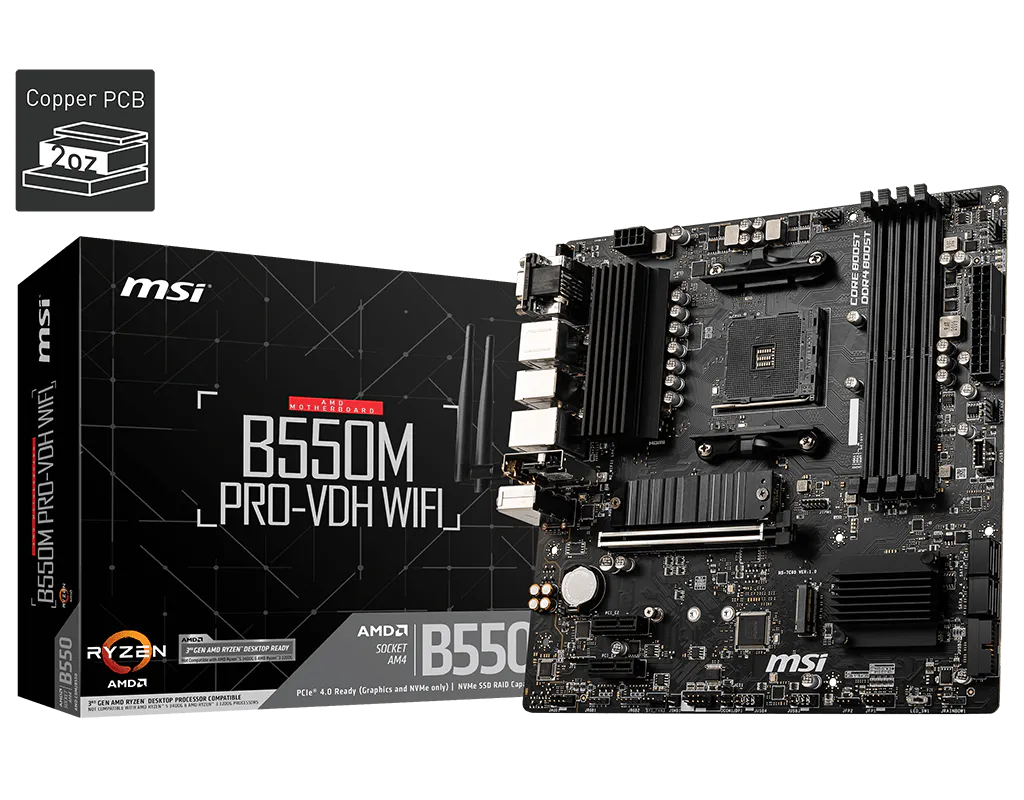

MSI PRO B550M PRO VDH WIFI
LE 5,800.00
Skip to product information
MSI PRO B550M PRO VDH WIFI
LE 5,800.00
Return within 14 days provided the item is in its original condition
MSI PRO B550M PRO VDH WIFI

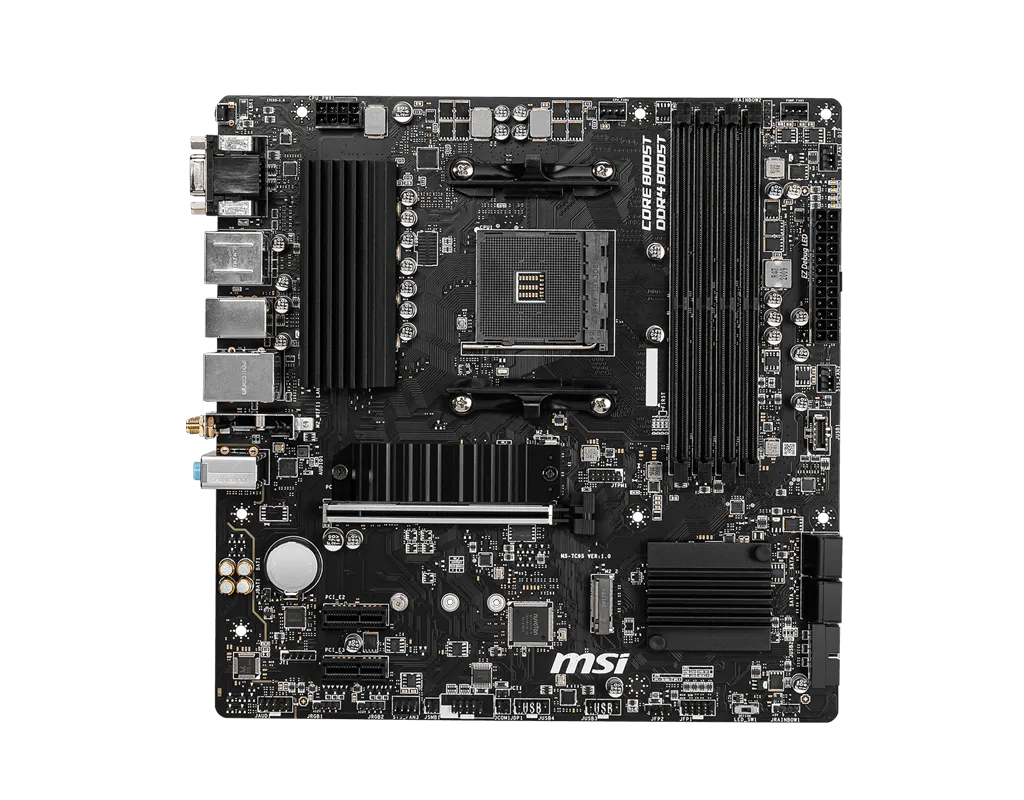

The MSI PRO B550M PRO VDH WIFI is a Micro-ATX B550 board on DDR4 with Wi-Fi for AMD Ryzen 3000, 4000 and 5000 series processors on AM4. It provides two M.2 slots, four SATA ports, 1 Gbps LAN and a comprehensive rear USB layout.
Specifications
- Socket: AM4
- Chipset: AMD B550
- Form Factor: Micro-ATX
- CPU Support: AMD Ryzen 3000, 4000 and 5000 series
- Memory: 4x DDR4 DIMM, up to 128GB, DDR4-4866 (OC)
- PCIe Slots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x1
- M.2: 2x M.2 (1x PCIe 4.0 x4 CPU, 1x PCIe 3.0 x4 chipset, type 2280)
- SATA: 4x SATA 6Gb/s

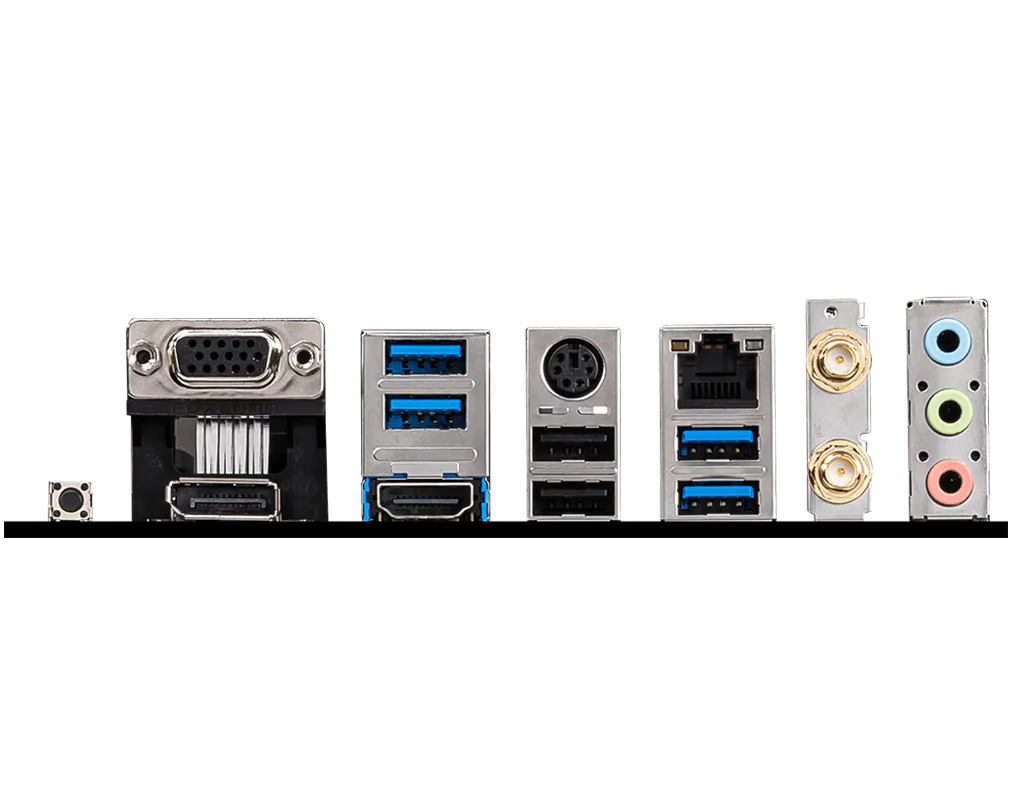

- Rear USB: 1x USB-C 3.2 Gen 1, 2x USB 3.2 Gen 1, 4x USB 2.0
- Display Outputs: 1x HDMI 2.1, 1x DisplayPort 1.2, 1x D-Sub
- LAN: 1 Gbps
- Wireless: Wi-Fi 5 (802.11ac), Bluetooth 5.1
- Audio: Realtek ALC892, 7.1-channel
- Warranty: 3 Years
Specifications
| Brand | MSI |
| Model | PRO B550M PRO VDH WIFI |
| Socket | AM4 |
| Chipset | AMD B550 |
| Form Factor | Micro-ATX |
| CPU Support | AMD Ryzen 3000, 4000 and 5000 series |
| Memory | 4x DDR4 DIMM, up to 128GB, DDR4-4866 (OC) |
| PCIe Slots | 1x PCIe 4.0 x16, 1x PCIe 3.0 x1 |
| M.2 | 2x M.2 (1x PCIe 4.0 x4 CPU, 1x PCIe 3.0 x4 chipset, type 2280) |
| SATA | 4x SATA 6Gb/s |
| Rear USB | 1x USB-C 3.2 Gen 1, 2x USB 3.2 Gen 1, 4x USB 2.0 |
| Display Outputs | 1x HDMI 2.1, 1x DisplayPort 1.2, 1x D-Sub |
| LAN | 1 Gbps |
| Wireless | Wi-Fi 5 (802.11ac), Bluetooth 5.1 |
| Audio | Realtek ALC892, 7.1-channel |
| Warranty | 3 Years |
Why Choose it?
