MSI PRO B550M PRO VDH

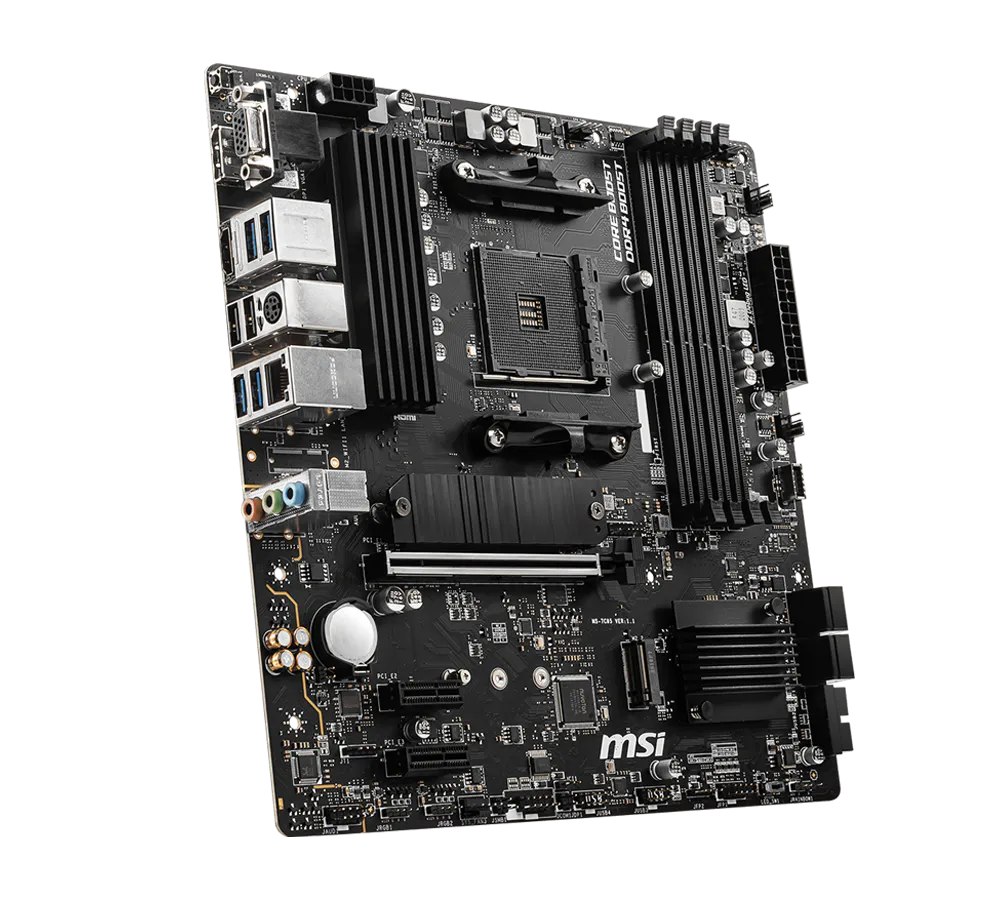

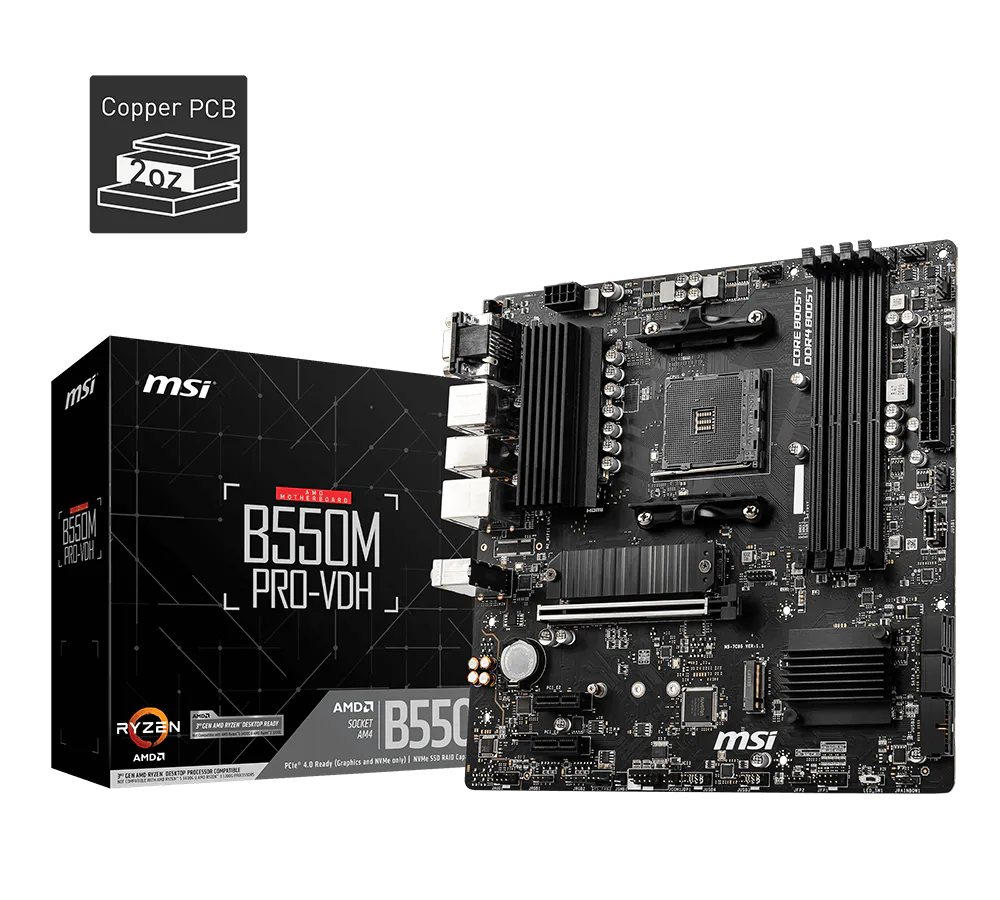

The MSI PRO B550M PRO VDH is a Micro-ATX B550 board on DDR4 for AMD Ryzen 3000, 4000 and 5000 series on AM4. It provides two M.2 slots, four SATA ports, 1 Gbps LAN and display outputs for integrated graphics — a practical mainstream AMD platform.
Specifications
- Socket: AM4
- Chipset: AMD B550
- Form Factor: Micro-ATX
- CPU Support: AMD Ryzen 3000, 4000 and 5000 series
- Memory: 4x DDR4 DIMM, up to 128GB, DDR4-4866 (OC)
- PCIe Slots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x1
- M.2: 2x M.2 (1x PCIe 4.0 x4 CPU, 1x PCIe 3.0 x4 chipset, type 2280)
- SATA: 4x SATA 6Gb/s

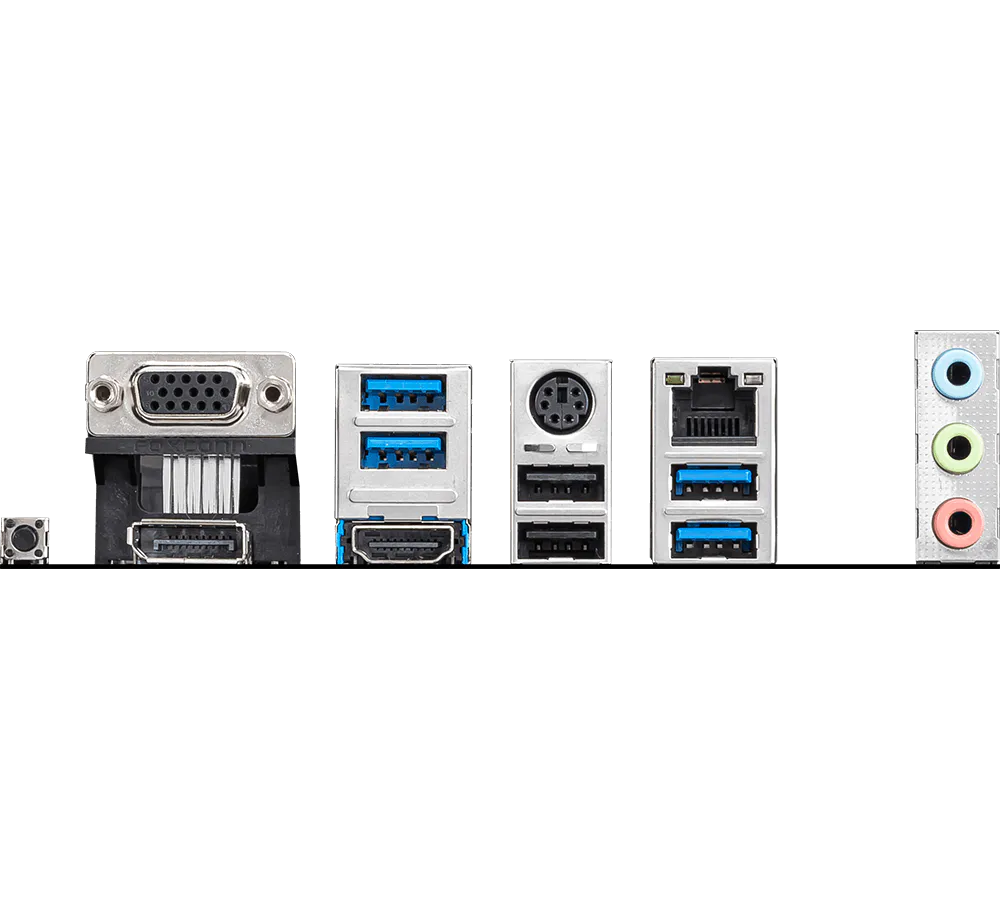

- Rear USB: 1x USB-C 3.2 Gen 1, 2x USB 3.2 Gen 1, 4x USB 2.0
- Display Outputs: 1x HDMI 2.1, 1x DisplayPort 1.2, 1x D-Sub
- LAN: 1 Gbps
- Audio: Realtek ALC892, 7.1-channel
- Warranty: 3 Years
Specifications
| Brand | MSI |
| Model | PRO B550M PRO VDH |
| Socket | AM4 |
| Chipset | AMD B550 |
| Form Factor | Micro-ATX |
| CPU Support | AMD Ryzen 3000, 4000 and 5000 series |
| Memory | 4x DDR4 DIMM, up to 128GB, DDR4-4866 (OC) |
| PCIe Slots | 1x PCIe 4.0 x16, 1x PCIe 3.0 x1 |
| M.2 | 2x M.2 (1x PCIe 4.0 x4 CPU, 1x PCIe 3.0 x4 chipset, type 2280) |
| SATA | 4x SATA 6Gb/s |
| Rear USB | 1x USB-C 3.2 Gen 1, 2x USB 3.2 Gen 1, 4x USB 2.0 |
| Display Outputs | 1x HDMI 2.1, 1x DisplayPort 1.2, 1x D-Sub |
| LAN | 1 Gbps |
| Audio | Realtek ALC892, 7.1-channel |
| Warranty | 3 Years |
