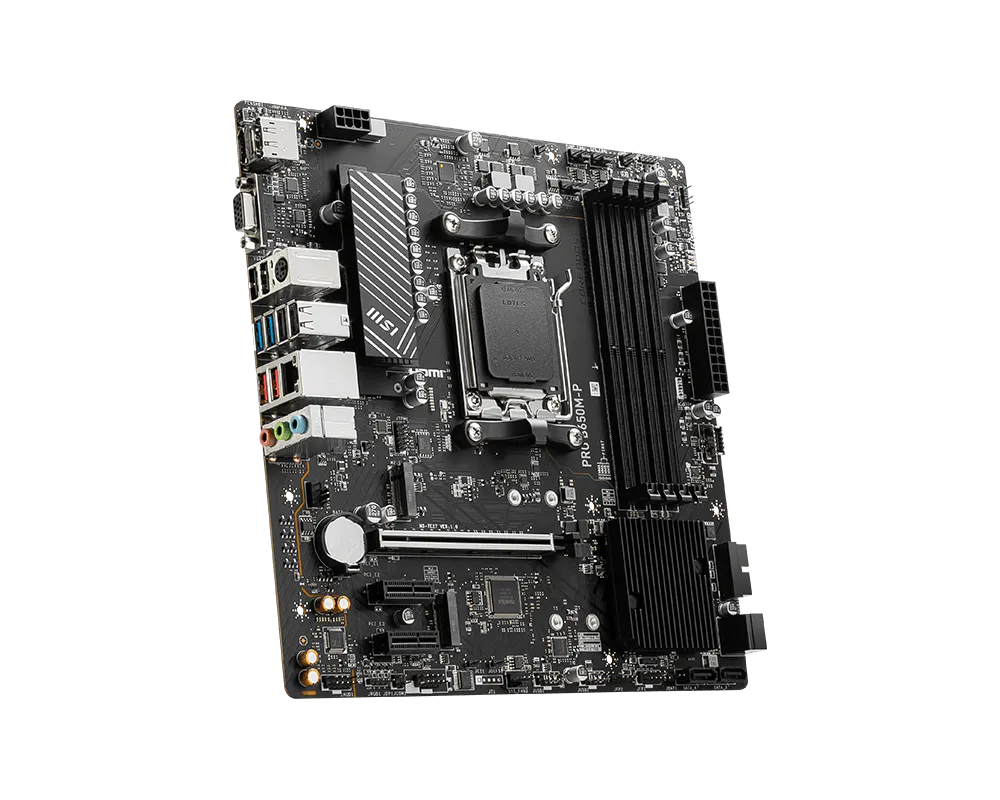

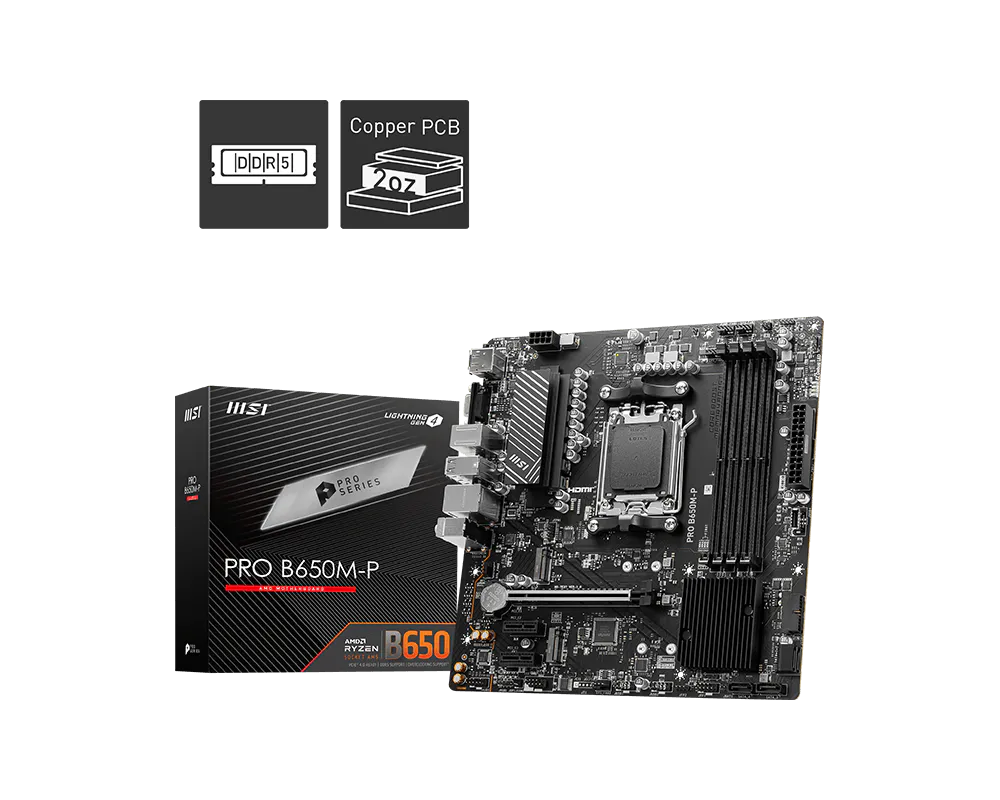

AMD AM5 Micro-ATX Motherboard
🔑 Key Highlights
- Processor Support: Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors (AM5)
- Chipset: AMD B650
- Quad Channel DDR5: 4x DIMM slots, up to 256GB, AMD EXPO, up to DDR5-7200+ (O.C.)
- PCIe 4.0 x16: CPU PCIe 4.0 x16 slot for GPU (Ryzen 9000/7000)
- Dual M.2 Storage: 2x M.2 PCIe 4.0 x4 + 4x SATA 6Gb/s
- 2.5GbE LAN: Realtek® 8125BG 2.5GbE LAN
- Display Output: HDMI™ 2.1 (4K@60Hz) + DisplayPort 1.4 (4K@60Hz) + VGA
- Audio: Realtek® ALC897, 7.1-Channel HD Audio
- RGB: 2x Addressable V2 RGB + 2x RGB LED connectors
- EZ Debug LED: 4x EZ Debug LEDs for easy troubleshooting
- Flash BIOS Button: Update BIOS without CPU/Memory/GPU
- Power Phases: Efficient VRM Design
📋 Specifications
- Socket: AMD AM5 — Ryzen™ 9000 / 8000 / 7000 Series
- Chipset: AMD B650
- Form Factor: Micro-ATX (243.84mm x 243.84mm)
- Memory Slots: 4x DDR5 DIMM, Dual Channel, up to 256GB
- Memory Speed (JEDEC): DDR5 4800 MT/s
- Memory Speed (O.C.): DDR5 5000 / 5200 / 5400 / 5600 / 5800 / 6000 / 6200 / 6400 / 6600 / 6800 / 7000 / 7200+ MT/s (1DPC 1R max 7200+ / 1DPC 2R max 6000+ / 2DPC 1R max 6000+ / 2DPC 2R max 5400+ MT/s)
- Memory Support: AMD EXPO, Non-ECC Un-buffered, Dual Channel
- Onboard Graphics: 1x HDMI™ 2.1 (4K@60Hz), 1x DisplayPort 1.4 (4K@60Hz), 1x VGA (1920x1200@60Hz) — Requires CPU with integrated graphics
- Audio: Realtek® ALC897, 7.1-Channel HD Audio
- LAN: Realtek® 8125BG 2.5GbE
- Wireless: None
- PCIe Slots: 1x PCIe 4.0 x16 (CPU), 2x PCIe 3.0 x1 (Chipset)
- Storage: 1x M.2 PCIe 4.0 x4 (M2_1, CPU, type 2280/2260) + 1x M.2 PCIe 4.0 x4 (M2_2, Chipset, type 2280/2260) + 4x SATA 6Gb/s
- RAID: RAID 0/1/10 for SATA, RAID 0/1 for M.2 NVMe

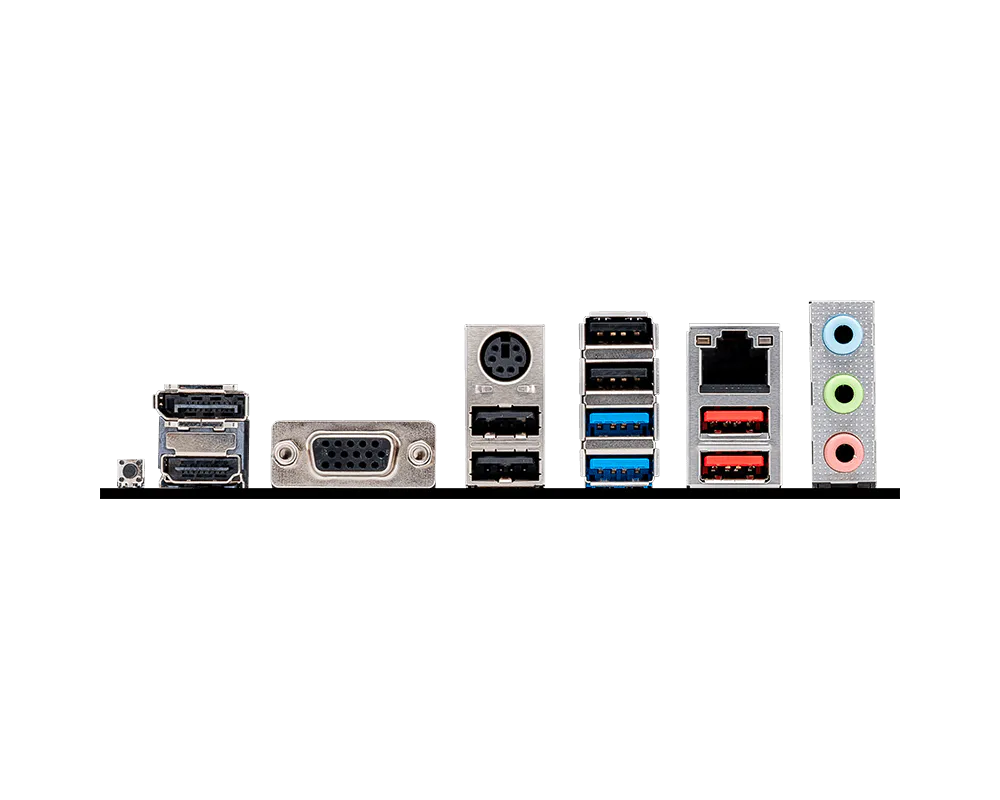

- USB Rear: 2x USB 10Gbps Type-A, 2x USB 5Gbps Type-A, 4x USB 2.0
- USB Internal: 1x USB 10Gbps Type-C header, 2x USB 5Gbps Type-A header, 4x USB 2.0 header
- Fan Headers: 1x CPU, 1x Pump, 3x System
- LED: 2x Addressable V2 RGB, 2x RGB LED connectors, 4x EZ Debug LED
- Other Internal: 1x TPM header, 1x Serial port (JCOM), 1x Chassis Intrusion, Flash BIOS Button
- BIOS: UEFI AMI, Flash BIOS Button, MSI Center
- OS Support: Windows 11 / Windows 10 (64-bit)
- VRM / Power Phases: Efficient VRM Design
Specifications
| MSI | |
| PRO | |
| PRO B650M-P | |
| AM5 | |
| No | |
| Micro-ATX | |
| PCIe 4.0 x16 | |
| DDR5 | |
| Dual Channel |
